GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

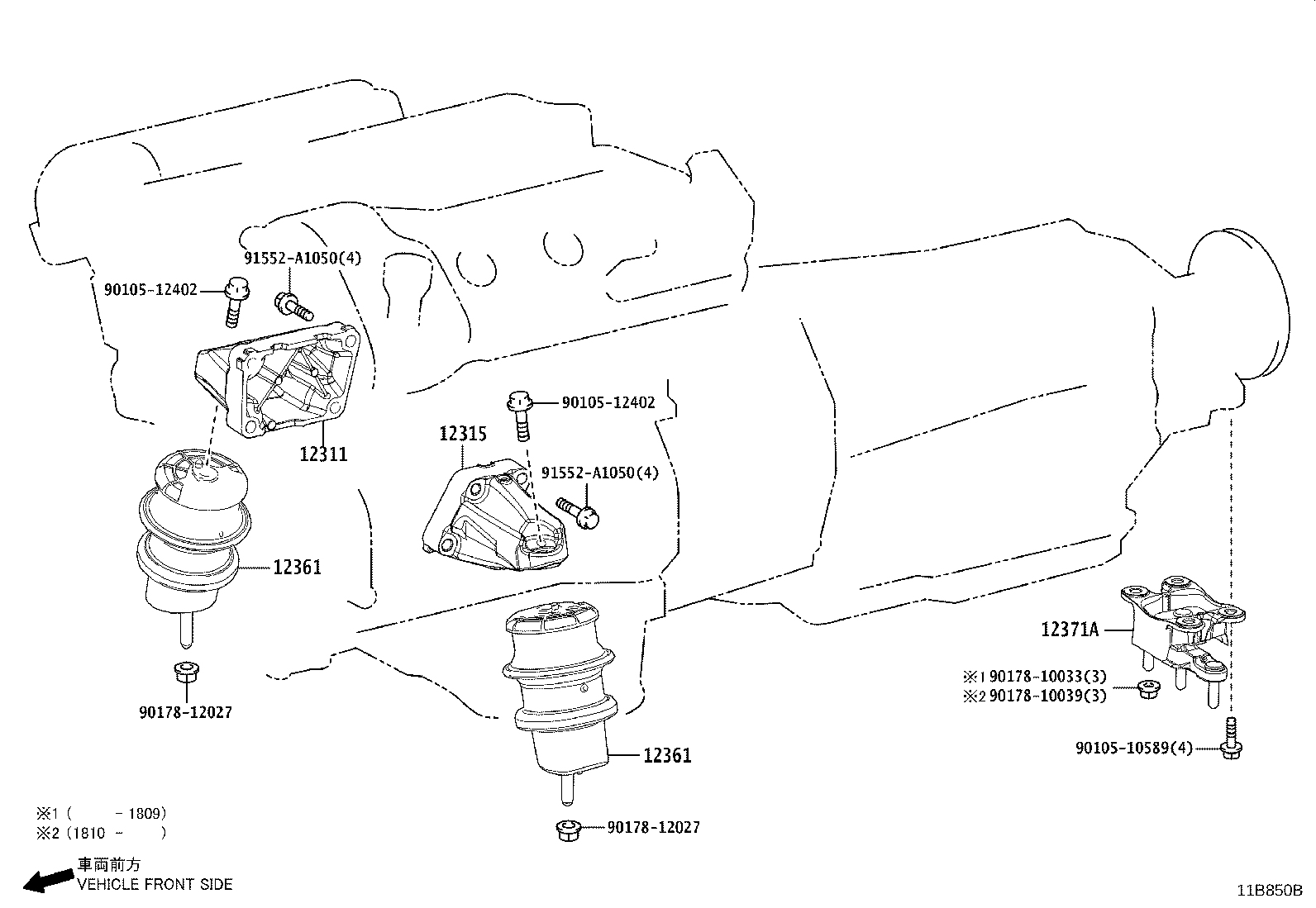

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371A 9010510589 9010512402 9010512402 9017810033 9017810039 9017812027 9017812027 91552A1050 91552A1050
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31230

8GRFXS..GWZ100

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31220

8GRFXS..GWZ100

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31500

8GRFXS..GWZ100

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31500

8GRFXS..GWZ100

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-31420

8GRFXS..GWZ100

 1
12371-31410

8GRFXS..GWZ100

 1
Common parts
90105-10589
90105-12402
90178-10033
90178-10039
90178-12027
91552-A1050
