GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

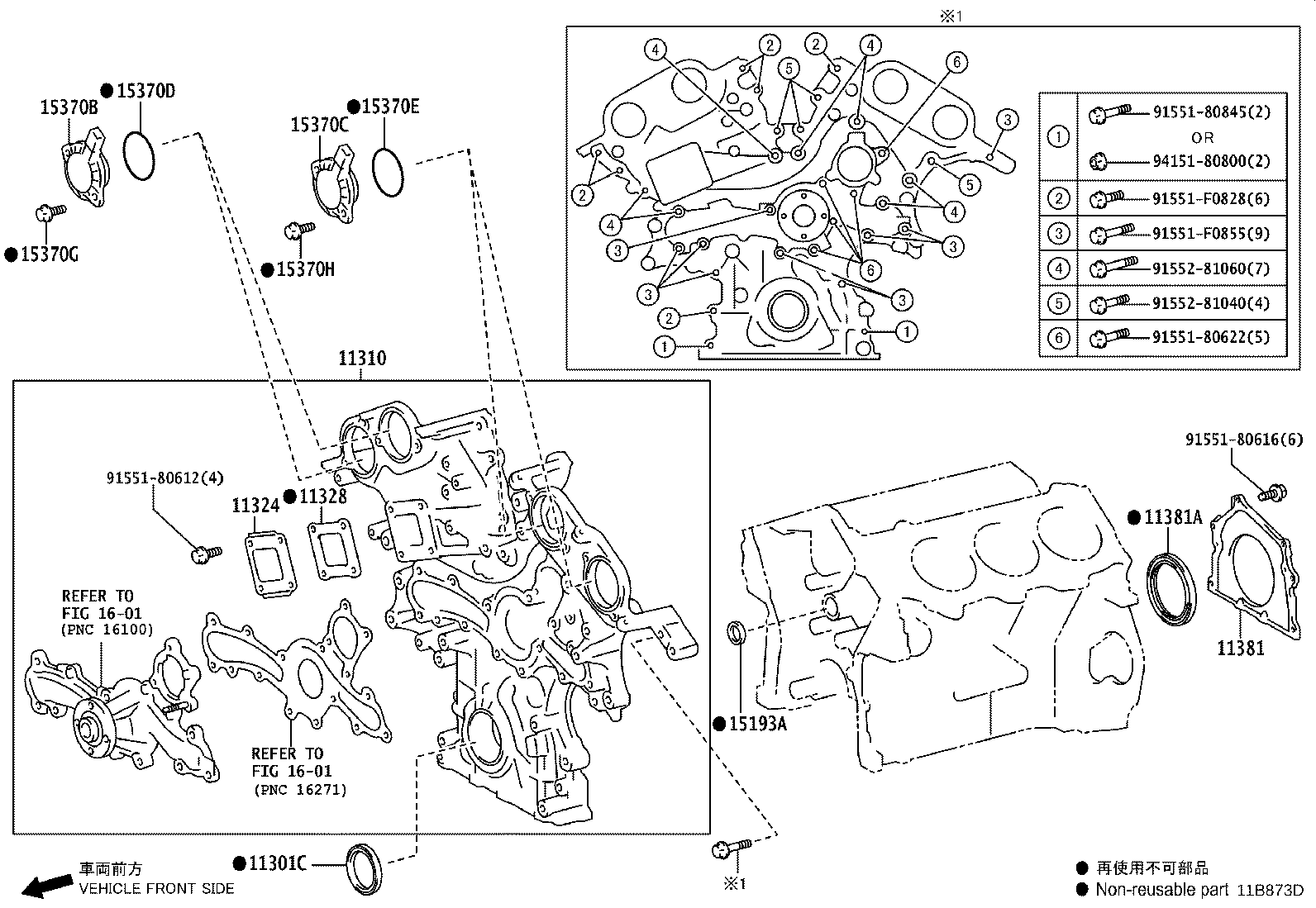

Click highlighted areas on diagram

diagram 11301C 11310 11324 11328 11381 11381A 15193A 15370B 15370C 15370D 15370E 15370G 15370H 1601 1601 9155180612 9155180616 9155180622 9155180845 91551F0828 91551F0855 9155281040 9155281060 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42052

8GRFXS..GWZ100

 1
11310 - COVER ASSY, TIMING CHAIN
11310-31090

8GRFXS..GWZ100

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

8GRFXS..GWZ100

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030

8GRFXS..GWZ100

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31030

8GRFXS..GWZ100

 1
11381A - SEAL, ENGINE REAR OIL
90311-92011

8GRFXS..GWZ100

 1
15193A - GASKET, OIL PUMP
15193-31020

8GRFXS..GWZ100

 1
15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH
15370-31010

8GRFXS..GWZ100

 2
15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH
15370-31010

8GRFXS..GWZ100

 2
15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
90301-50003

8GRFXS..GWZ100

 2
15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
90301-50003

8GRFXS..GWZ100

 2
15370G - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH)
91551-80616

8GRFXS..GWZ100

 4
15370H - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH)
91551-80616

8GRFXS..GWZ100

 4
Common parts
91551-80612
91551-80616
91551-80622
91551-80845
91551-F0828
91551-F0855
91552-81040
91552-81060
94151-80800
