GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

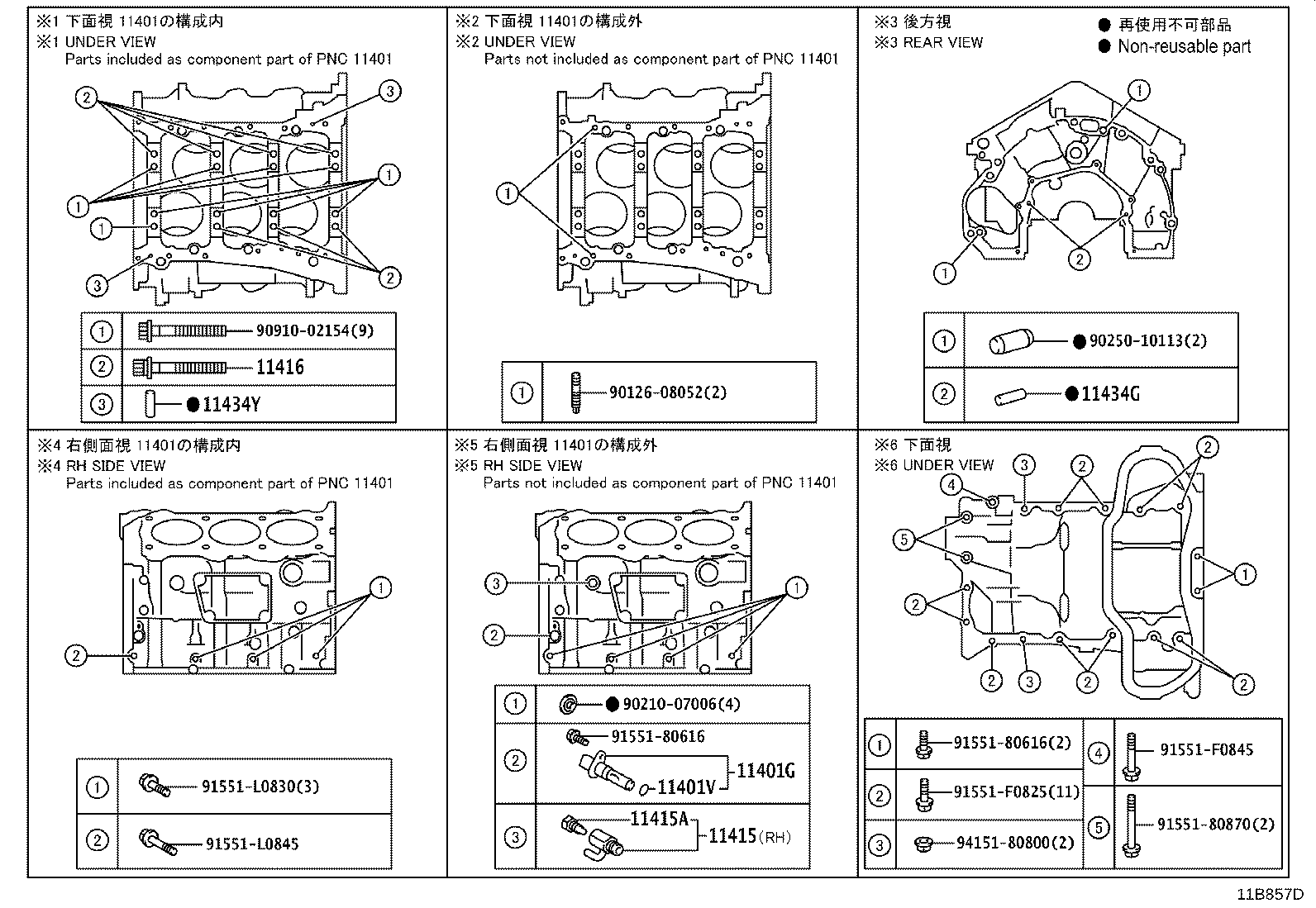

ILLUST NO. 2 OF 2(1701- )8GRFXS

Click highlighted areas on diagram

diagram 11401G 11401V 11415 11415A 11416 11434G 11434Y 9012608052 9021007006 9025010113 9091002154 9155180616 9155180616 9155180870 91551F0825 91551F0845 91551L0830 91551L0845 9415180800
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05098

8GRFXS..GWZ100

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016

8GRFXS..GWZ100

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

8GRFXS..GWZ100

RH

 1
90345-52001

8GRFXS..GWZ100

LH

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

8GRFXS..GWZ100

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02153

8GRFXS..GWZ100

 7
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-04097

8GRFXS..GWZ100

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

8GRFXS..GWZ100

 2
Common parts
90126-08052
90210-07006
90250-10113
90910-02154
91551-80616
91551-80870
91551-F0825
91551-F0845
91551-L0830
91551-L0845
94151-80800

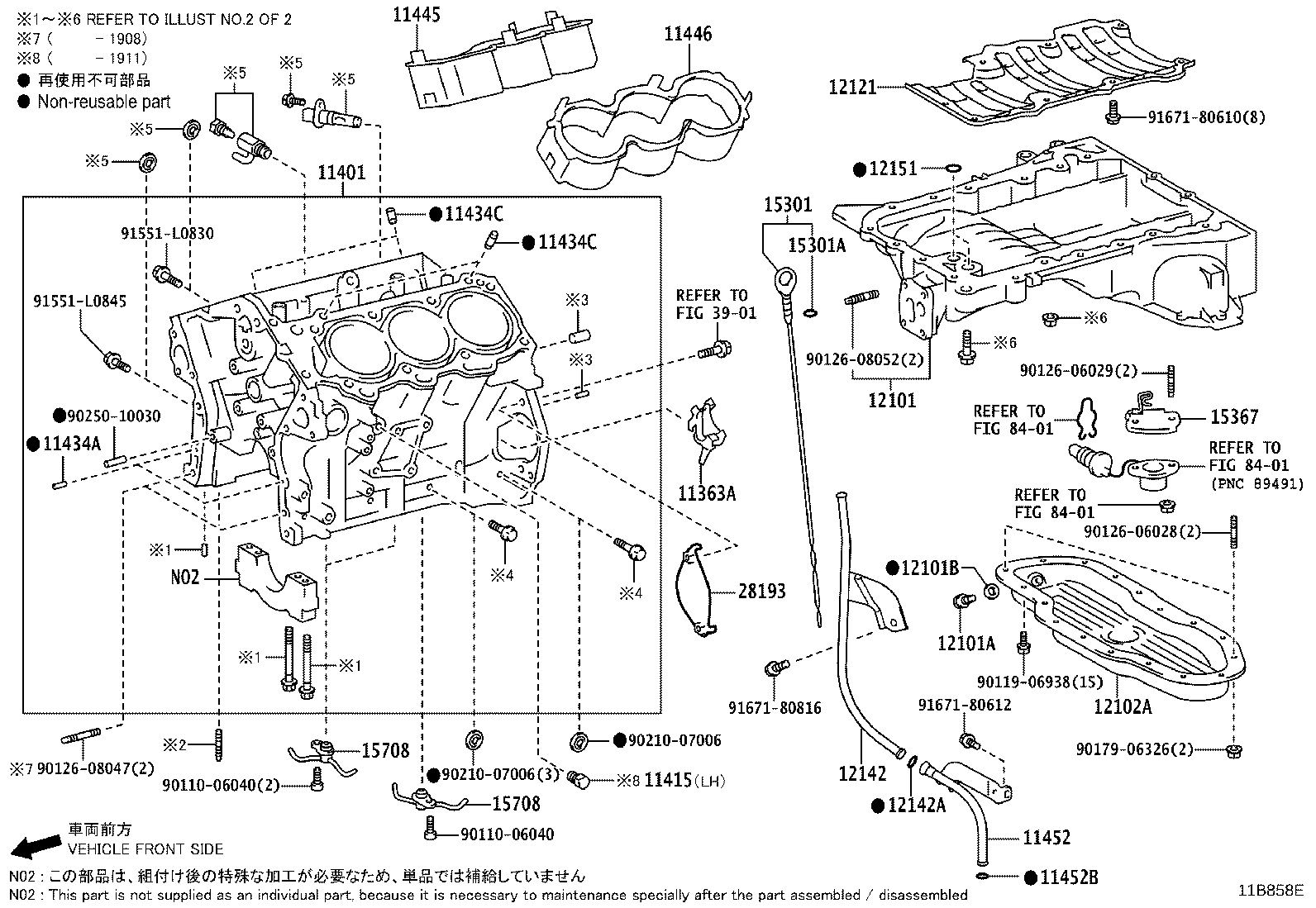

ILLUST NO. 1 OF 2(1701- )8GRFXS

Click highlighted areas on diagram

diagram 11363A 11401 11415 11434A 11434C 11434C 11445 11446 11452 11452B 12101 12101A 12101B 12102A 12121 12142 12142A 12151 15301 15301A 15367 15708 15708 28193 3901 8401 8401 8401 9011006040 9011006040 9011906938 9012606028 9012606029 9012608047 9012608052 9017906326 9021007006 9021007006 9025010030 91551L0830 91551L0845 9167180610 9167180612 9167180816
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-31030

8GRFXS..GWZ100

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80843

8GRFXS..GWZ100

 1
11401-80864

8GRFXS..GWZ100

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

8GRFXS..GWZ100

RH

 1
90345-52001

8GRFXS..GWZ100

LH

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

8GRFXS..GWZ100

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

8GRFXS..GWZ100

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

8GRFXS..GWZ100

L=18,OD=8

 4
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-31050

8GRFXS..GWZ100

 1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-31050

8GRFXS..GWZ100

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-31040

8GRFXS..GWZ100

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

8GRFXS..GWZ100

 1
12101 - PAN SUB-ASSY, OIL
12101-31241

8GRFXS..GWZ100

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

8GRFXS..GWZ100

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

8GRFXS..GWZ100

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31110

8GRFXS..GWZ100

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31080

8GRFXS..GWZ100

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-31130

8GRFXS..GWZ100

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

8GRFXS..GWZ100

 1
12151 - GASKET, OIL PAN
12151-31010

8GRFXS..GWZ100

 2
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31170

8GRFXS..GWZ100

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

8GRFXS..GWZ100

 1
15367 - BRACKET, OIL LEVEL SENSOR
15367-31020

8GRFXS..GWZ100

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050

8GRFXS..GWZ100

 3
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050

8GRFXS..GWZ100

 3
28193 - INSULATOR, STARTER HOLE
28193-31010

8GRFXS..GWZ100

 1
Common parts
90110-06040
90119-06938
90126-06028
90126-06029
90126-08047
90126-08052
90179-06326
90210-07006
90250-10030
91551-L0830
91551-L0845
91671-80610
91671-80612
91671-80816
Linked diagrams
3901
8401
