GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

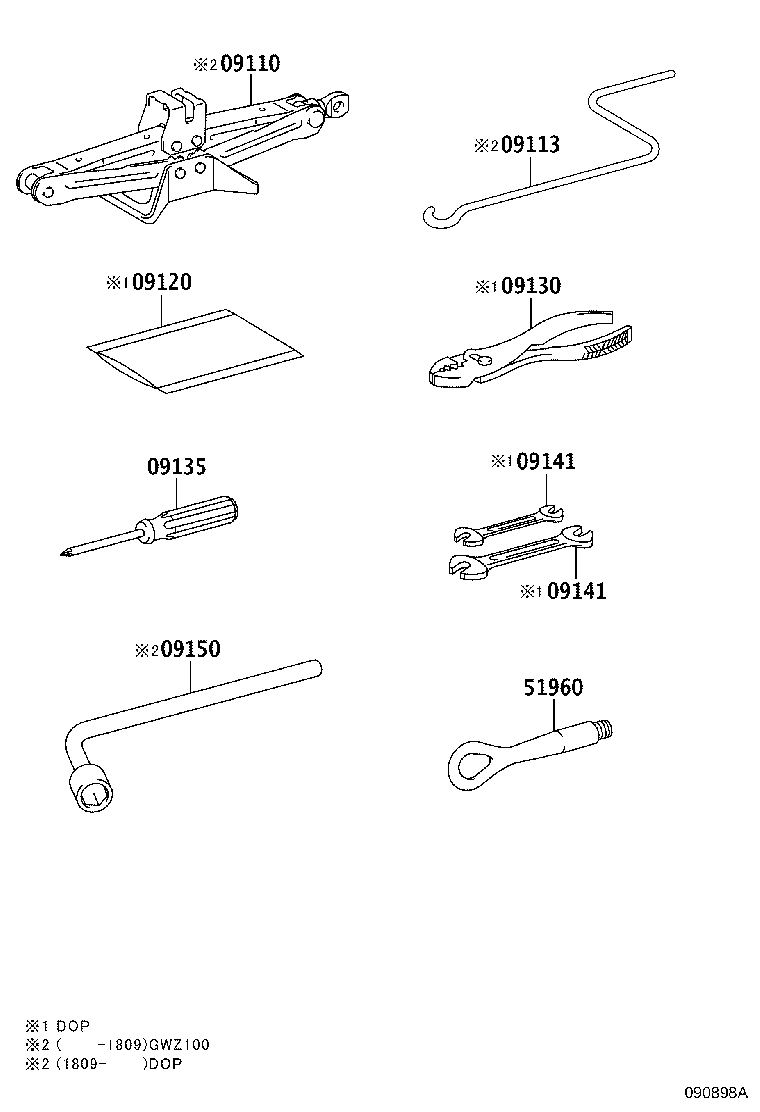

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-50130

GWZ100

 1
09111-50130

GWZ100,URZ100

JACK-WITH (DOP)

 1
09113 - HANDLE, JACK
09113-30050

GWZ100

 1
09113-30050

GWZ100,URZ100

JACK-WITH (DOP)

 1
09120 - BAG, TOOL
09120-24020

GWZ100,URZ100

TOOL(DOP)-SPANNER & PLIERS

 1
09130 - PLIERS
09130-50040

GWZ100,URZ100

TOOL(DOP)-SPANNER & PLIERS

 1
09135 - DRIVER, SCREW
99915-10700

GWZ100,URZ100

 1
09141 - SPANNER
09141-60020

GWZ100,URZ100

12 X 14,TOOL(DOP)-SPANNER & PLIERS

 1
09141-60010

GWZ100,URZ100

8 X 10,TOOL(DOP)-SPANNER & PLIERS

 1
09141 - SPANNER
09141-60020

GWZ100,URZ100

12 X 14,TOOL(DOP)-SPANNER & PLIERS

 1
09141-60010

GWZ100,URZ100

8 X 10,TOOL(DOP)-SPANNER & PLIERS

 1
09150 - WRENCH, HUB NUT BOX
09150-50040

GWZ100

 1
09150-50040

GWZ100,URZ100

JACK-WITH (DOP)

 1
51960 - HOOK ASSY, FRONT
51961-11030

GWZ100,URZ100

 1
