USE20L-FEZRHA (2007)

Toyota Lexus Is F

Production Dec 2007 - Aug 2014
Engine 2URGSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

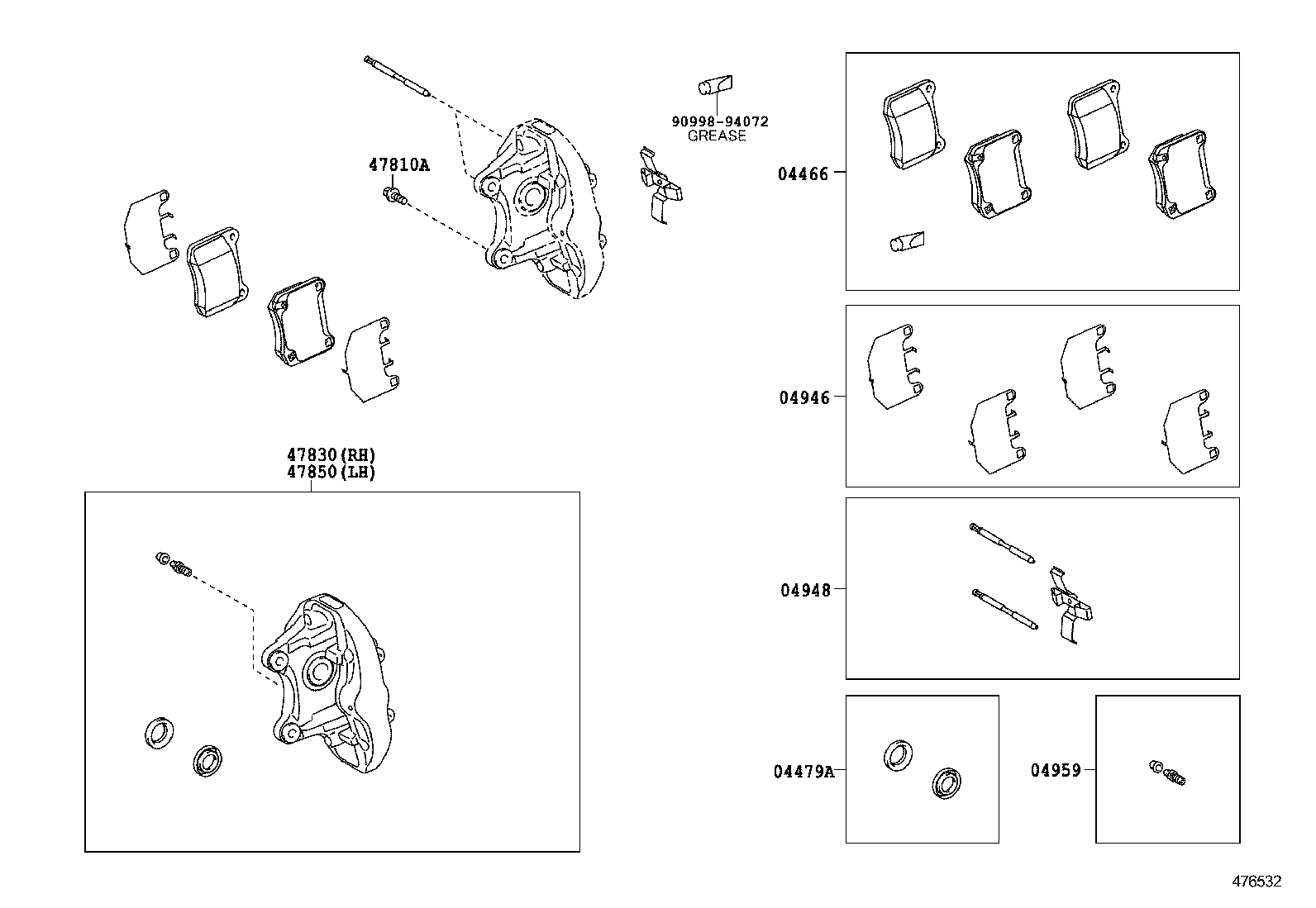

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 04959 47810A 47830 47850 9099894072
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-0W031

USE20

MARK JURID 655

 1
04466-0W030

USE20

MARK JURID 655

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-0W010

USE20

 2
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-0W010

USE20

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-0W010

USE20

 2
04959 - BLEEDER KIT, DISC BRAKE, REAR
04958-0W010

USE20

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-10525

USE20

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-0W010

USE20

 1
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-0W010

USE20

 1
Common parts
90998-94072
