USE20L-FEZRHA (2007)

Toyota Lexus Is F

Production Dec 2007 - Aug 2014
Engine 2URGSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

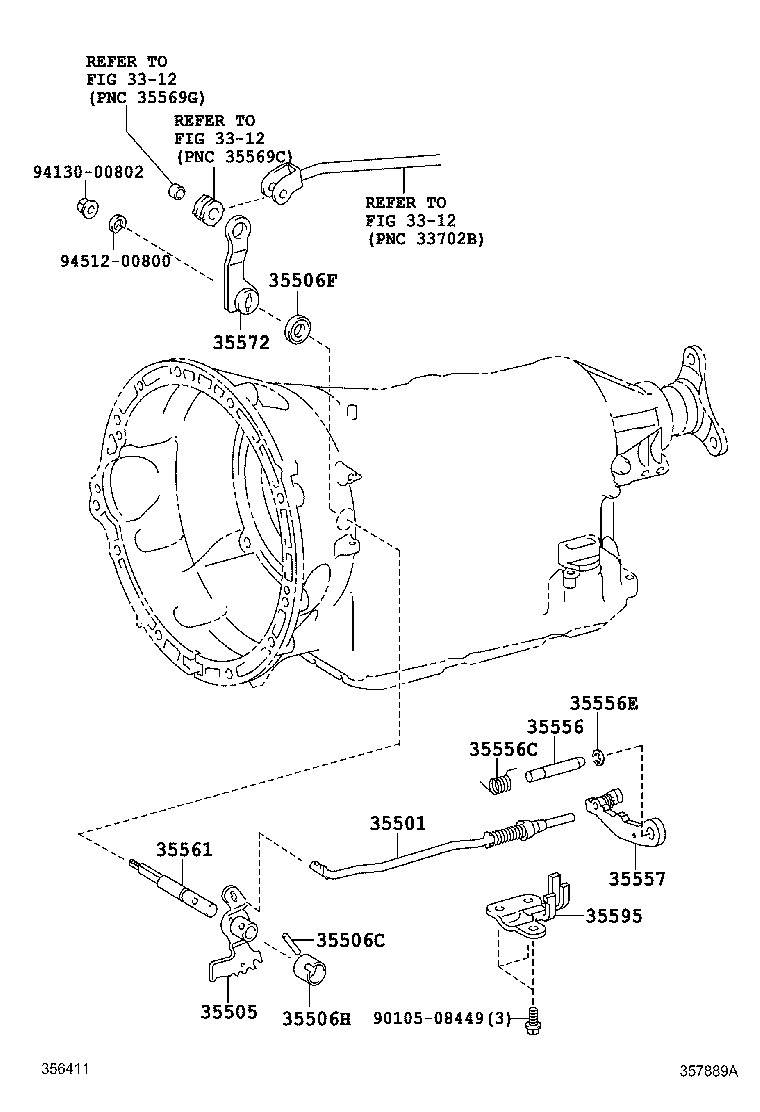

Click highlighted areas on diagram

AA80E

diagram 3312 3312 3312 35501 35505 35506C 35506F 35506H 35556 35556C 35556E 35557 35561 35572 35595 9010508449 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-50020

USE20

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-30040

USE20

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

USE20

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

USE20

 1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025

USE20

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-60020

USE20

 1
35556C - SPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
90949-03147

USE20

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

USE20

 1
35557 - PAWL, PARKING LOCK
35590-50020

USE20

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-50030

USE20

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-30100

USE20

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-50020

USE20

 1
Common parts
90105-08449
94130-00802
94512-00800
Linked diagrams
3312
