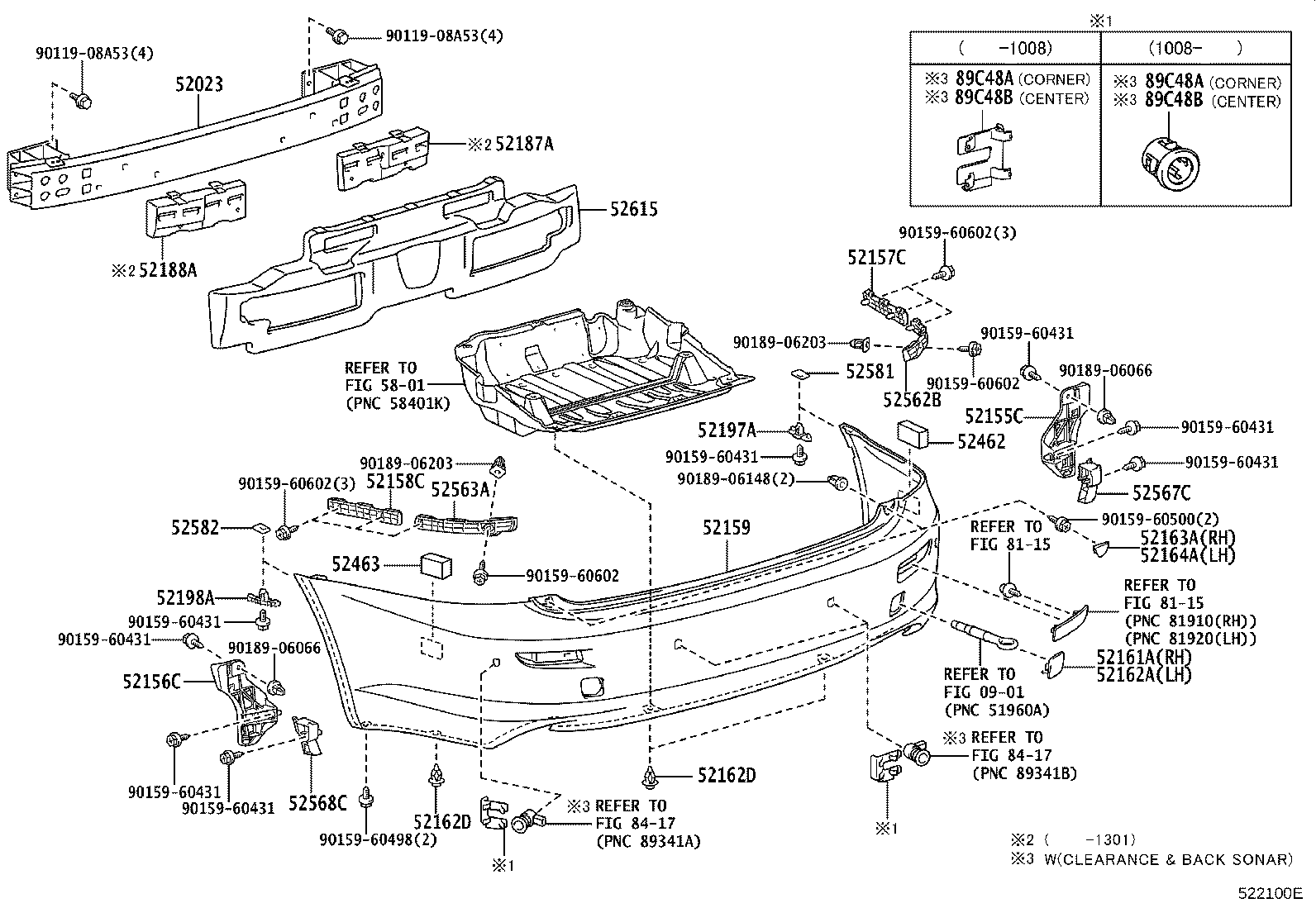

GSE21L-AKTLHA (2009)
Toyota Lexus Is250c/350c
(0904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-53070 |
GSE2# |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-53060 |
GSE2# |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-53030 |
GSE2# |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-53060 |
GSE2# |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-53060 |
GSE2# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-53919 |
GSE2# PAINT REQ. |
1 | ||
| 52159-53938 |
GSE2# PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-53920 |
GSE2# PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-53905 |
GSE2# |
1 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-53907 |
GSE2# |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GSE2# |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GSE2# |
4 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-53901 |
GSE2# |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-53901 |
GSE2# |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-53040 |
GSE2# |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-53040 |
GSE2# |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53030 |
GSE2# |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-53030 |
GSE2# |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-53040 |
GSE2# |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-53040 |
GSE2# |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-53020 |
GSE2# |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-53020 |
GSE2# |
1 | ||
| 52567C - RETAINER, REAR BUMPER LOWER SIDE, RH | ||||
| 52567-53010 |
GSE2# |
1 | ||
| 52568C - RETAINER, REAR BUMPER LOWER SIDE, LH | ||||
| 52568-53010 |
GSE2# |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-53020 |
GSE2# |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52582-53020 |
GSE2# |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-53100 |
GSE2# |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-44010 |
GSE2# CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-64020J2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020A1 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020B2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-64020J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-64020D0 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-30030A0 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030D2 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-30030B8 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-30030B0 |
GSE2# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-64020K1 |
GSE2# CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL |
2 | ||
| 89348-30030J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030J6 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030A5 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 |
2 | ||
| 89348-64020C1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-30030J0 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-30030C0 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-64020J1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-44010 |
GSE2# CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-64020J2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020A1 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020B2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-64020J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-64020D0 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-30030A0 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030D2 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-30030B8 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-30030B0 |
GSE2# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-64020K1 |
GSE2# CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL |
2 | ||
| 89348-30030J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030J6 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030A5 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 |
2 | ||
| 89348-64020C1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-30030J0 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-30030C0 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-64020J1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-64020B2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-44010 |
GSE2# CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-30030J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020J2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-64020A1 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030B8 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020D0 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-64020C1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-64020K1 |
GSE2# CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL |
2 | ||
| 89348-30030A0 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-53010 |
GSE2# CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-30030B0 |
GSE2# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030C0 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-30030A5 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030D2 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-30030J0 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-64020J1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89348-30030J6 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-64020B2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-44010 |
GSE2# CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-30030J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020J2 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020J5 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-64020A1 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030B8 |
GSE2# CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020D0 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-64020C1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-64020K1 |
GSE2# CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL |
2 | ||
| 89348-30030A0 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
2 | ||
| 89348-53010 |
GSE2# CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-30030B0 |
GSE2# CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030C0 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLACK,212 |
2 | ||
| 89348-30030A5 |
GSE2# CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030D2 |
GSE2# CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1 |
2 | ||
| 89348-30030J0 |
GSE2# CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3 |
2 | ||
| 89348-64020J1 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89348-30030J6 |
GSE2# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
GSE2# CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 |
2 | ||
| Common parts | ||||
| 90119-08A53 | ||||
| 90159-60431 | ||||
| 90159-60498 | ||||
| 90159-60500 | ||||
| 90159-60602 | ||||
| 90189-06066 | ||||
| 90189-06148 | ||||
| 90189-06203 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5801 | ||||
| 8115 | ||||
| 8417 | ||||
