GSE20L-AKTLHA (2009)
Toyota Lexus Is250c/350c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0904- )
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GSE2# |
4 | ||
| 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-53010 |
GSE2# |
1 | ||
| 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-53010 |
GSE2# |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-53040 |
GSE2# |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-53040 |
GSE2# |
1 | ||
| 58401K - BOARD SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 58401-53060 |
GSE2# |
1 | ||
| Common parts | ||||
| 90179-06306 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
ILLUST NO. 1 OF 2(0904- )
Click highlighted areas on diagram

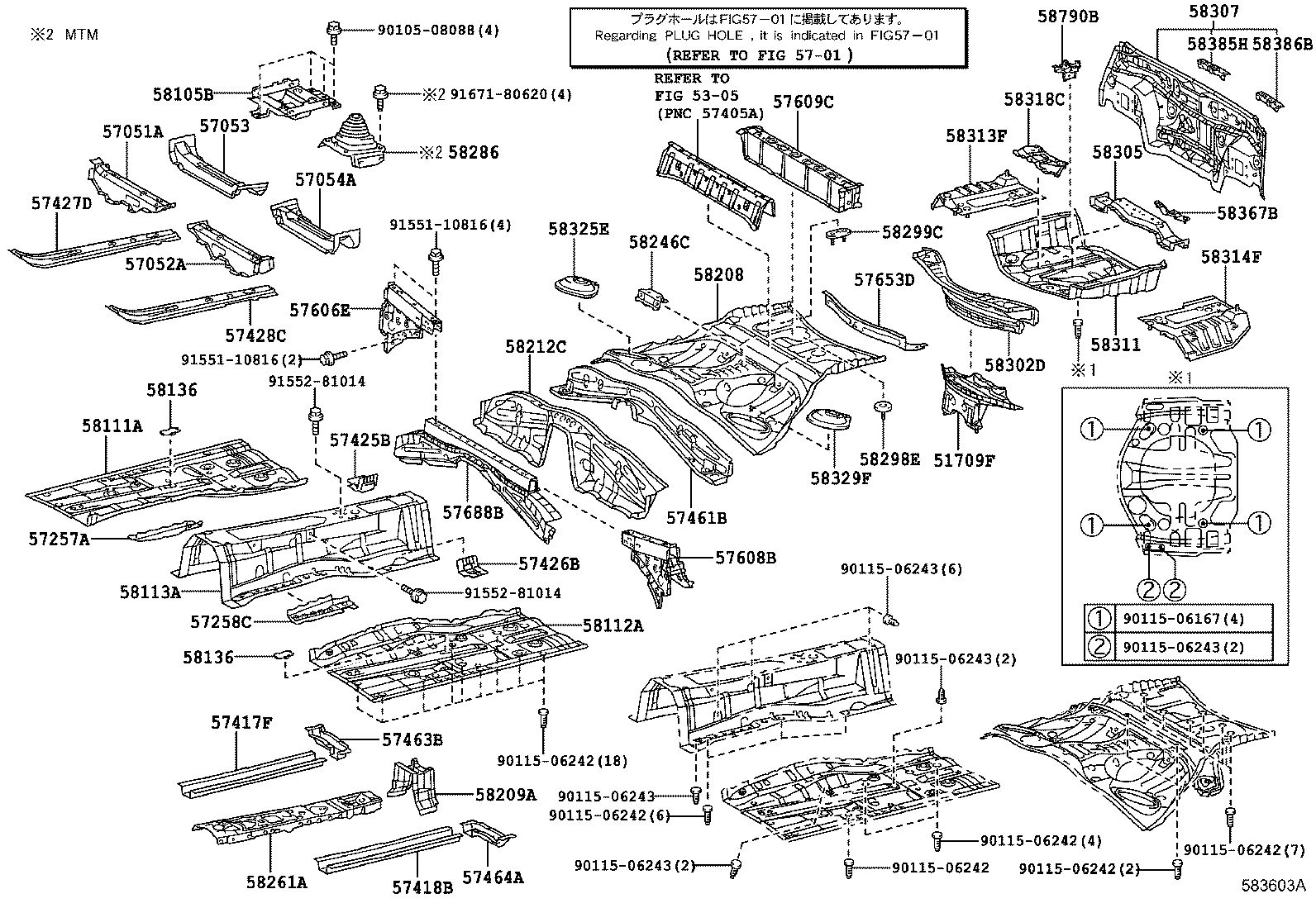

FLOOR PAN & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51709F - BRACKET SUB-ASSY, TORSION BAR | ||||
| 51709-53010 |
GSE2# |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-53030 |
GSE2# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-53030 |
GSE2# |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-30071 |
GSE2# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-30071 |
GSE2# |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-30041 |
GSE2# |
1 | ||
| 57257-30042 |
GSE2# |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-30091 |
GSE2# |
1 | ||
| 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-24040 |
GSE2# |
1 | ||
| 57417-53020 |
GSE2# |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-24040 |
GSE2# |
1 | ||
| 57417-53020 |
GSE2# |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-30020 |
GSE2# |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-30020 |
GSE2# |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-30030 |
GSE2# |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57427-30030 |
GSE2# |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-30151 |
GSE2# |
1 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57508-30020 |
GSE2# |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57509-30020 |
GSE2# |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57603-53010 |
GSE2# |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57604-53010 |
GSE2# |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-53030 |
GSE2# |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57606-30061 |
GSE2# |
1 | ||
| 57688B - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57503-53010 |
GSE2# |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-53010 |
GSE2# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-53040 |
GSE2# |
1 | ||
| 58111-24050 |
GSE2# |
1 | ||
| 58111-24060 |
GSE2# |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-53031 |
GSE2# |
1 | ||
| 58112-24040 |
GSE2# |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-53030 |
GSE2# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
GSE2# |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
GSE2# |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30350 |
GSE2# |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-30050 |
GSE2# |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58202-30091 |
GSE2# |
1 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-22020 |
GSE2# |
1 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-53061 |
GSE20..6F |
1 | ||
| 58261-30231 |
GSE2#..6FC |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-53030 |
GSE20..6F |
1 | ||
| 58298E - BRACKET, HOT AIR INTAKE, NO.1 | ||||
| 58298-30030 |
GSE2# |
1 | ||
| 58299C - BRACKET, HOT AIR INTAKE, NO.2 | ||||
| 58299-30010 |
GSE2# |
1 | ||
| 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT | ||||
| 58302-53010 |
GSE2# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-30220 |
GSE2# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-53070 |
GSE2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-53030 |
GSE2# |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-53030 |
GSE2# |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-53030 |
GSE2# |
1 | ||
| 58318C - BRACKET, REAR FLOOR CROSSMEMBER | ||||
| 58318-53010 |
GSE2# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-30020 |
GSE2# |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-30030 |
GSE2# |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-30120 |
GSE2# |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-53040 |
GSE2# |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-53020 |
GSE2# |
1 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-30010 |
GSE2# |
1 | ||
| Common parts | ||||
| 90105-08088 | ||||
| 90115-06167 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 91551-10816 | ||||
| 91552-81014 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
