GSE20L-AKFLHA (2009)

Toyota Lexus Is250c/350c

Production Apr 2009 - Aug 2012
Engine 4GRFSE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

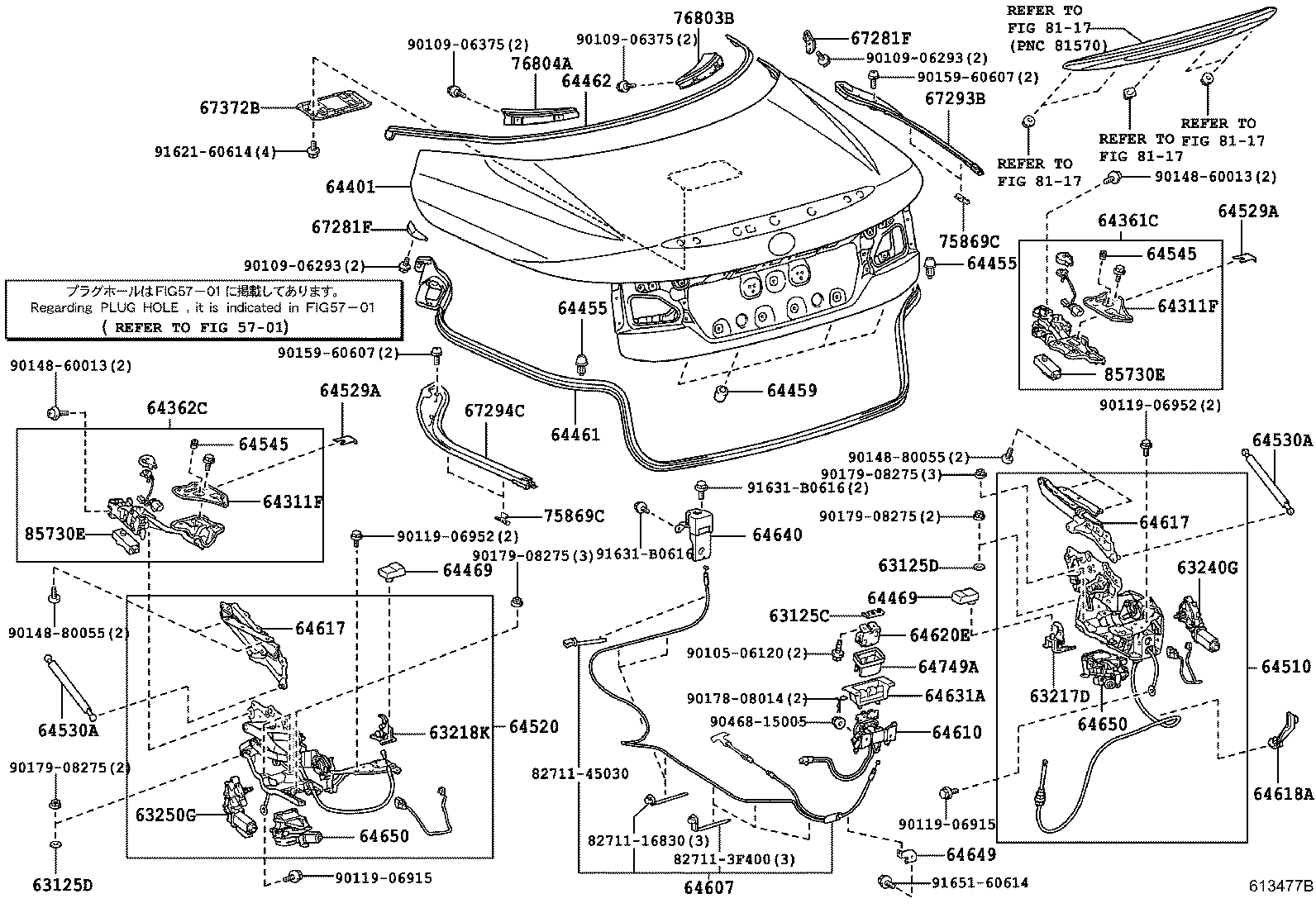

Click highlighted areas on diagram

diagram 5701 63125C 63125D 63125D 63217D 63218K 63240G 63250G 64311F 64311F 64361C 64362C 64401 64455 64455 64459 64461 64462 64469 64469 64510 64520 64529A 64529A 64530A 64530A 64545 64545 64607 64610 64617 64617 64618A 64620E 64620E 64631A 64640 64649 64650 64650 64749A 67281F 67281F 67293B 67294C 67372B 75869C 75869C 76803B 76804A 8117 8117 8117 8117 8271116830 827113F400 8271145030 85730E 85730E 9010506120 9010906293 9010906293 9010906375 9010906375 9011906915 9011906915 9011906952 9011906952 9014860013 9014860013 9014880055 9014880055 9015960607 9015960607 9017808014 9017908275 9017908275 9017908275 9017908275 9046815005 9162160614 91631B0616 91631B0616 9165160614
Part # Description Qty Price
63125C - SHIM, LUGGAGE DOOR
63125-24050

GSE2#

T=0.5

 1
63125D - SHIM, LUGGAGE DOOR, NO.2
63125-53010

GSE2#

 1
63125D - SHIM, LUGGAGE DOOR, NO.2
63125-53010

GSE2#

 1
63217D - HOOK, REMOVABLE ROOF AUXILIARY, RH
63217-53010

GSE2#

 1
63218K - HOOK, REMOVABLE ROOF AUXILIARY
63218-53010

GSE2#

 1
63240G - GEAR ASSY, LUGGAGE DOOR DRIVE, RH
63240-53010

GSE2#

 1
63250G - GEAR ASSY, LUGGAGE DOOR DRIVE, LH
63250-53010

GSE2#

 1
64311F - PANEL, PACKAGE TRAY
64311-53040

GSE2#

LH

 1
64311-53030

GSE2#

RH

 1
64311F - PANEL, PACKAGE TRAY
64311-53040

GSE2#

LH

 1
64311-53030

GSE2#

RH

 1
64361C - HINGE, PACKAGE TRAY TRIM, NO.1
64361-53020

GSE2#

 1
64362C - HINGE, PACKAGE TRAY TRIM, NO.2
64362-53020

GSE2#

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-53250

GSE2#

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
64401-53260

GSE2#

 1
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-53010

GSE2#

 2
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-53010

GSE2#

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09124

GSE2#

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64462-53010

GSE2#

 1
64462 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64463-53010

GSE2#

 1
64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
63279-53010

GSE2#

 2
64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
63279-53010

GSE2#

 2
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-53060

GSE2#

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-53050

GSE2#

 1
64529A - SHIM, LUGGAGE COMPARTMENT DOOR HINGE
63125-53210

GSE2#

T=2.0

 1
63125-53220

GSE2#

T=3.0

 1
63125-53190

GSE2#

T=0.5

 1
63125-53230

GSE2#

T=4.0

 1
63125-53200

GSE2#

T=1.0

 1
64529A - SHIM, LUGGAGE COMPARTMENT DOOR HINGE
63125-53210

GSE2#

T=2.0

 1
63125-53220

GSE2#

T=3.0

 1
63125-53190

GSE2#

T=0.5

 1
63125-53230

GSE2#

T=4.0

 1
63125-53200

GSE2#

T=1.0

 1
64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64530-53030

GSE2#

RH

 1
64540-53011

GSE2#

LH

 1
64540-53010

GSE2#

LH

 1
64530-53032

GSE2#

RH

 1
64530-53031

GSE2#

RH

 1
64540-53012

GSE2#

LH

 1
64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64530-53030

GSE2#

RH

 1
64540-53011

GSE2#

LH

 1
64540-53010

GSE2#

LH

 1
64530-53032

GSE2#

RH

 1
64530-53031

GSE2#

RH

 1
64540-53012

GSE2#

LH

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-15030

GSE2#

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-15030

GSE2#

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-53050

GSE2#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-53050

GSE2#

 1
64600-53051

GSE2#

 1
64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK
64524-53010

GSE2#

LH

 1
64523-53020

GSE2#

RH

 1
64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK
64524-53010

GSE2#

LH

 1
64523-53020

GSE2#

RH

 1
64618A - CLAMP, LUGGAGE LOCK CONTROL CABLE
64618-53020

GSE2#

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-24030

GSE2#

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-24030

GSE2#

 1
64631A - PROTECTOR, LUGGAGE DOOR LOCK
69358-53010A1

GSE2#

IVORY,TRIM0#,1#,2#,3#,4#

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-53010

GSE2#

 1
64649 - RETAINER, LUGGAGE DOOR LOCK CONTROL BASE
64649-53010

GSE2#

 1
64650 - CLOSER ASSY, LUGGAGE DOOR
80560-53010

GSE2#

LH

 1
80550-53010

GSE2#

RH

 1
64650 - CLOSER ASSY, LUGGAGE DOOR
80560-53010

GSE2#

LH

 1
80550-53010

GSE2#

RH

 1
64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64631-53020

GSE2#

 1
67281F - STOPPER, BACK DOOR, LOWER
67281-53030

GSE2#

RH,MARK3,*RRM

 1
67281-53010

GSE2#

RH,MARK1,*RRM

 1
67282-53020

GSE2#

LH,MARK2,*RRM

 1
67282-53010

GSE2#

LH,MARK1,*RRM

 1
67281-53020

GSE2#

RH,MARK2,*RRM

 1
67282-53030

GSE2#

LH,MARK3,*RRM

 1
67281F - STOPPER, BACK DOOR, LOWER
67281-53030

GSE2#

RH,MARK3,*RRM

 1
67281-53010

GSE2#

RH,MARK1,*RRM

 1
67282-53020

GSE2#

LH,MARK2,*RRM

 1
67282-53010

GSE2#

LH,MARK1,*RRM

 1
67281-53020

GSE2#

RH,MARK2,*RRM

 1
67282-53030

GSE2#

LH,MARK3,*RRM

 1
67293B - CUSHION, BACK DOOR STOPPER, RH
67293-53010

GSE2#

 1
67294C - CUSHION, BACK DOOR STOPPER, LH
67294-53010

GSE2#

 1
67372B - WEIGHT, LUGGAGE DOOR
67372-53010

GSE2#

 1
67372-53011

GSE2#

 1
75869C - RETAINER, QUARTER OPENING, LH
75879-53010

GSE2#

 4
75869C - RETAINER, QUARTER OPENING, LH
75879-53010

GSE2#

 4
76803B - GARNISH SUB-ASSY, LUGGAGE DOOR, OUTSIDE UPPER RH
76803-53011

GSE2#

 1
76803-53010

GSE2#

 1
76804A - GARNISH SUB-ASSY, LUGGAGE DOOR, OUTSIDE UPPER LH
76804-53010

GSE2#

 1
76804-53011

GSE2#

 1
85730E - MOTOR ASSY, SLIDE ROOF
85730-53010

GSE2#

 2
85730E - MOTOR ASSY, SLIDE ROOF
85730-53010

GSE2#

 2
Common parts
82711-16830
82711-3F400
82711-45030
90105-06120
90109-06293
90109-06375
90119-06915
90119-06952
90148-60013
90148-80055
90159-60607
90178-08014
90179-08275
90468-15005
91621-60614
91631-B0616
91651-60614
Linked diagrams
5701
8117
