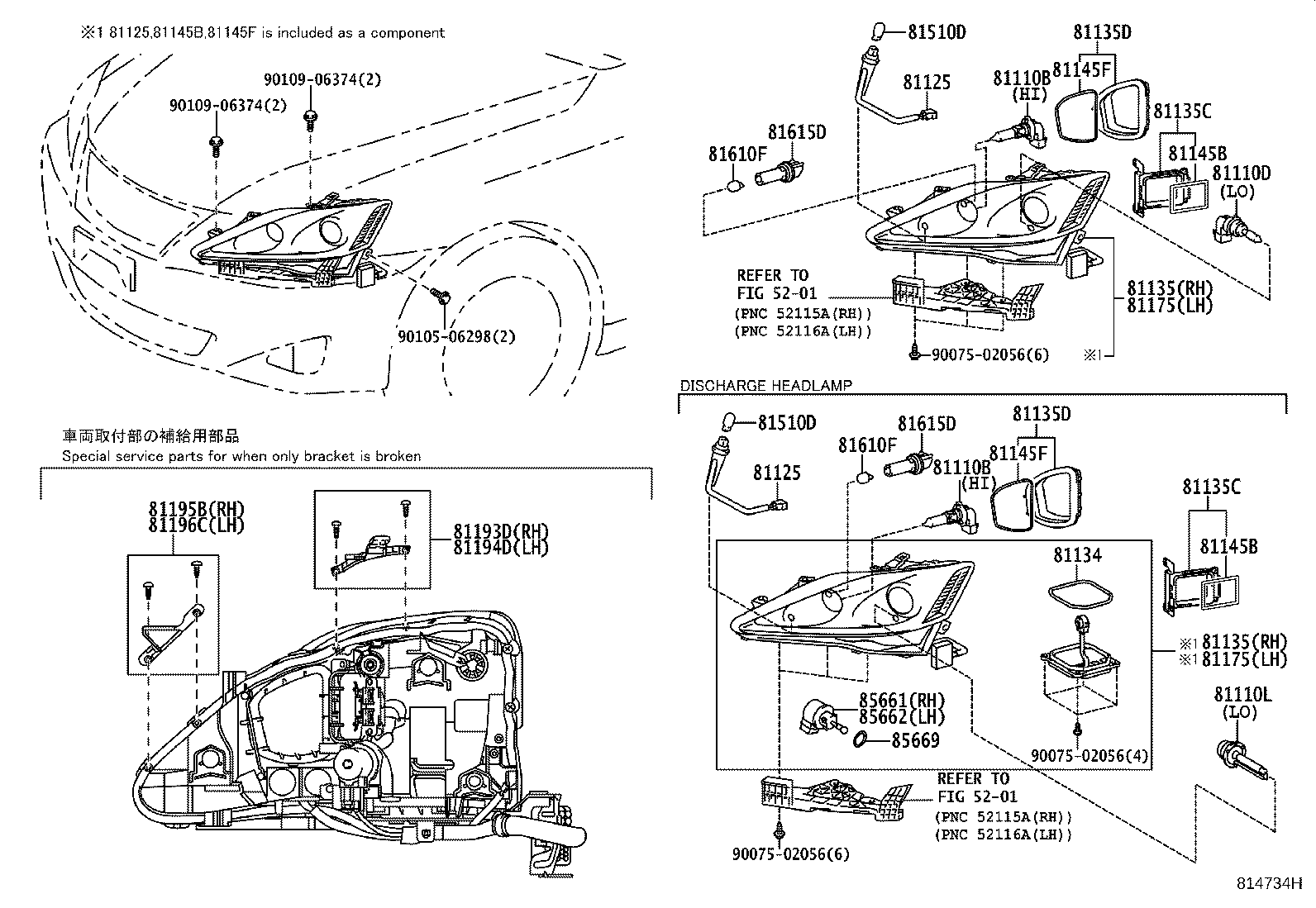

GSE25L-AETLHA (2008)
Toyota Lexus Is250/350
(0808-1008)
KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
GSE2# 12V 55W,HALOGEN |
2 | ||
| 90981-13075 |
GSE2# 12V 55W,HALOGEN |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
GSE2# 45V 35W,LUXURY PACKAGE |
2 | ||
| 90981-20021 |
GSE2# 45V 35W,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 90981-20024 |
GSE2# 42V 35W,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81126-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81126-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
GSE2# LUXURY PACKAGE |
1 | ||
| 90075-68007 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81130-53270 |
GSE2# |
1 | ||
| 81130-53400 |
GSE2# |
1 | ||
| 81140-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81130-53270 |
GSE2# |
1 | ||
| 81130-53400 |
GSE2# |
1 | ||
| 81140-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135-53240 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135-53240 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81145B - GASKET, HEADLAMP COVER, NO.1 | ||||
| 81132-53240 |
GSE2# |
1 | ||
| 81132-53240 |
GSE2# |
1 | ||
| 81145B - GASKET, HEADLAMP COVER, NO.1 | ||||
| 81132-53240 |
GSE2# |
1 | ||
| 81132-53240 |
GSE2# |
1 | ||
| 81145F - GASKET, HEADLAMP COVER, NO.2 | ||||
| 81134-53240 |
GSE2# |
1 | ||
| 81134-53240 |
GSE2# |
1 | ||
| 81145F - GASKET, HEADLAMP COVER, NO.2 | ||||
| 81134-53240 |
GSE2# |
1 | ||
| 81134-53240 |
GSE2# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81170-53400 |
GSE2# |
1 | ||
| 81170-53270 |
GSE2# |
1 | ||
| 81070-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81170-53400 |
GSE2# |
1 | ||
| 81170-53270 |
GSE2# |
1 | ||
| 81070-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-53020 |
GSE2# |
1 | ||
| 81193-53020 |
GSE2# |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-53010 |
GSE2# |
1 | ||
| 81194-53010 |
GSE2# |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-53010 |
GSE2# |
1 | ||
| 81195-53010 |
GSE2# |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-53020 |
GSE2# |
1 | ||
| 81196-53020 |
GSE2# |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
GSE2# |
2 | ||
| 90075-60077 |
GSE2# |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
GSE2# |
2 | ||
| 90075-60077 |
GSE2# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48030 |
GSE2# LUXURY PACKAGE |
1 | ||
| 85661-48030 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 85661-48030 |
GSE2# LUXURY PACKAGE |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GSE2# LUXURY PACKAGE |
2 | ||
| 90075-99120 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| Linked diagrams | ||||
| 5201 | ||||

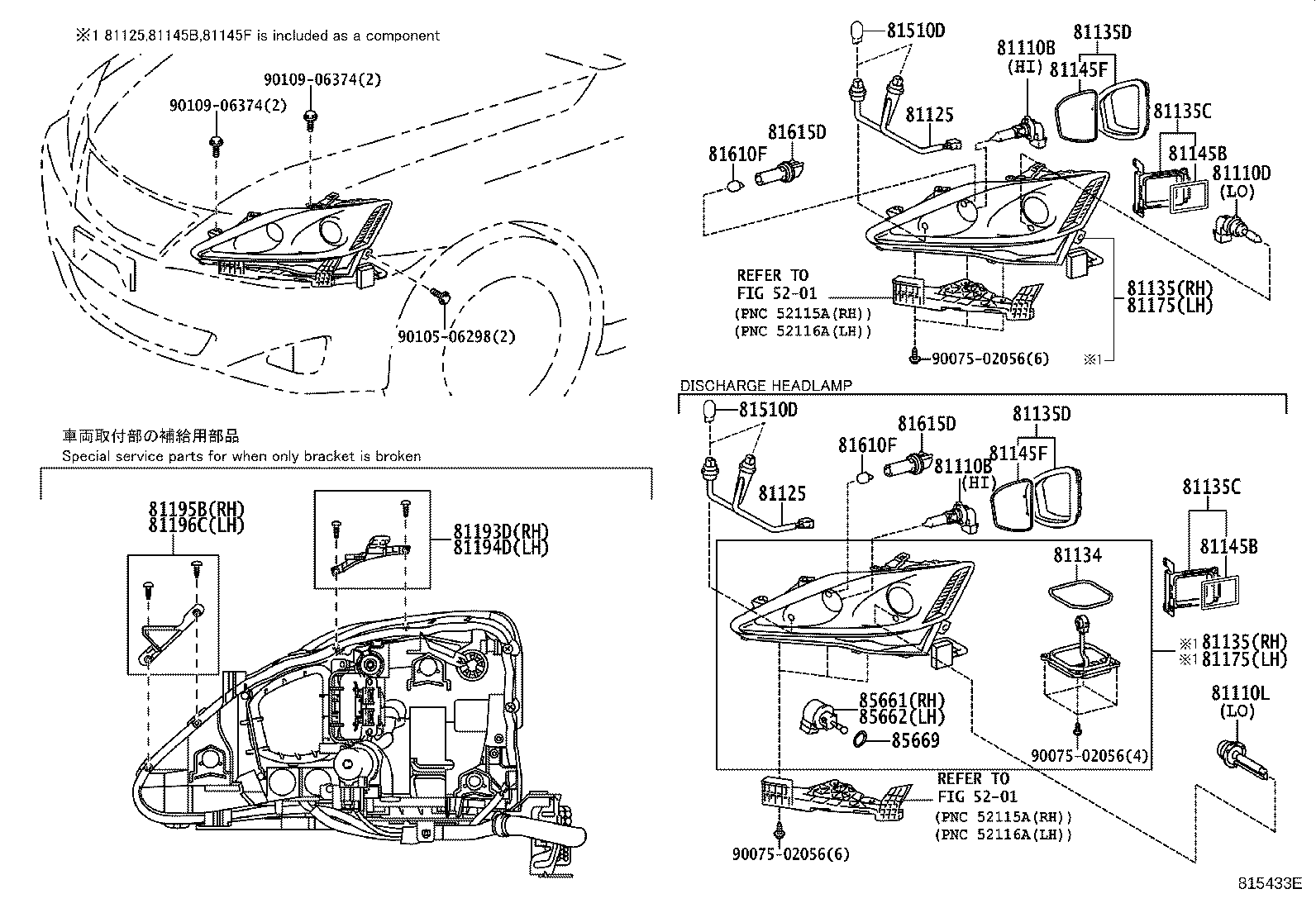

(0808-1008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
GSE2# 12V 55W,HALOGEN |
2 | ||
| 90981-13075 |
GSE2# 12V 55W,HALOGEN |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
GSE2# 45V 35W,LUXURY PACKAGE |
2 | ||
| 90981-20021 |
GSE2# 45V 35W,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 90981-20024 |
GSE2# 42V 35W,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81126-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81126-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81126-53240 |
GSE2# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
GSE2# LUXURY PACKAGE |
1 | ||
| 90075-68007 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81130-53270 |
GSE2# |
1 | ||
| 81130-53400 |
GSE2# |
1 | ||
| 81140-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81130-53270 |
GSE2# |
1 | ||
| 81130-53400 |
GSE2# |
1 | ||
| 81140-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135-53240 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-53240 |
GSE2# LUXURY PACKAGE |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135-53240 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 81135-53270 |
GSE2# |
2 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81176-53240 |
GSE2# LH |
1 | ||
| 81136-53240 |
GSE2# RH |
1 | ||
| 81145B - GASKET, HEADLAMP COVER, NO.1 | ||||
| 81132-53240 |
GSE2# |
1 | ||
| 81132-53240 |
GSE2# |
1 | ||
| 81145B - GASKET, HEADLAMP COVER, NO.1 | ||||
| 81132-53240 |
GSE2# |
1 | ||
| 81132-53240 |
GSE2# |
1 | ||
| 81145F - GASKET, HEADLAMP COVER, NO.2 | ||||
| 81134-53240 |
GSE2# |
1 | ||
| 81134-53240 |
GSE2# |
1 | ||
| 81145F - GASKET, HEADLAMP COVER, NO.2 | ||||
| 81134-53240 |
GSE2# |
1 | ||
| 81134-53240 |
GSE2# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81170-53400 |
GSE2# |
1 | ||
| 81170-53270 |
GSE2# |
1 | ||
| 81070-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-53240 |
GSE2# LUXURY PACKAGE |
1 | ||
| 81170-53400 |
GSE2# |
1 | ||
| 81170-53270 |
GSE2# |
1 | ||
| 81070-53390 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-53020 |
GSE2# |
1 | ||
| 81193-53020 |
GSE2# |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-53010 |
GSE2# |
1 | ||
| 81194-53010 |
GSE2# |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-53010 |
GSE2# |
1 | ||
| 81195-53010 |
GSE2# |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-53020 |
GSE2# |
1 | ||
| 81196-53020 |
GSE2# |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 90981-15021 |
GSE2# 12V 21W,AMBER |
4 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 99132-12050 |
GSE2# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
GSE2# |
2 | ||
| 90075-60077 |
GSE2# |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
GSE2# |
2 | ||
| 90075-60077 |
GSE2# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48030 |
GSE2# LUXURY PACKAGE |
1 | ||
| 85661-48030 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 85661-48030 |
GSE2# LUXURY PACKAGE |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GSE2# LUXURY PACKAGE |
2 | ||
| 90075-99120 |
GSE2# HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| Linked diagrams | ||||
| 5201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
