GSE20L-AETLHA (2008)

Toyota Lexus Is250/350

Production Aug 2008 - Aug 2010
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

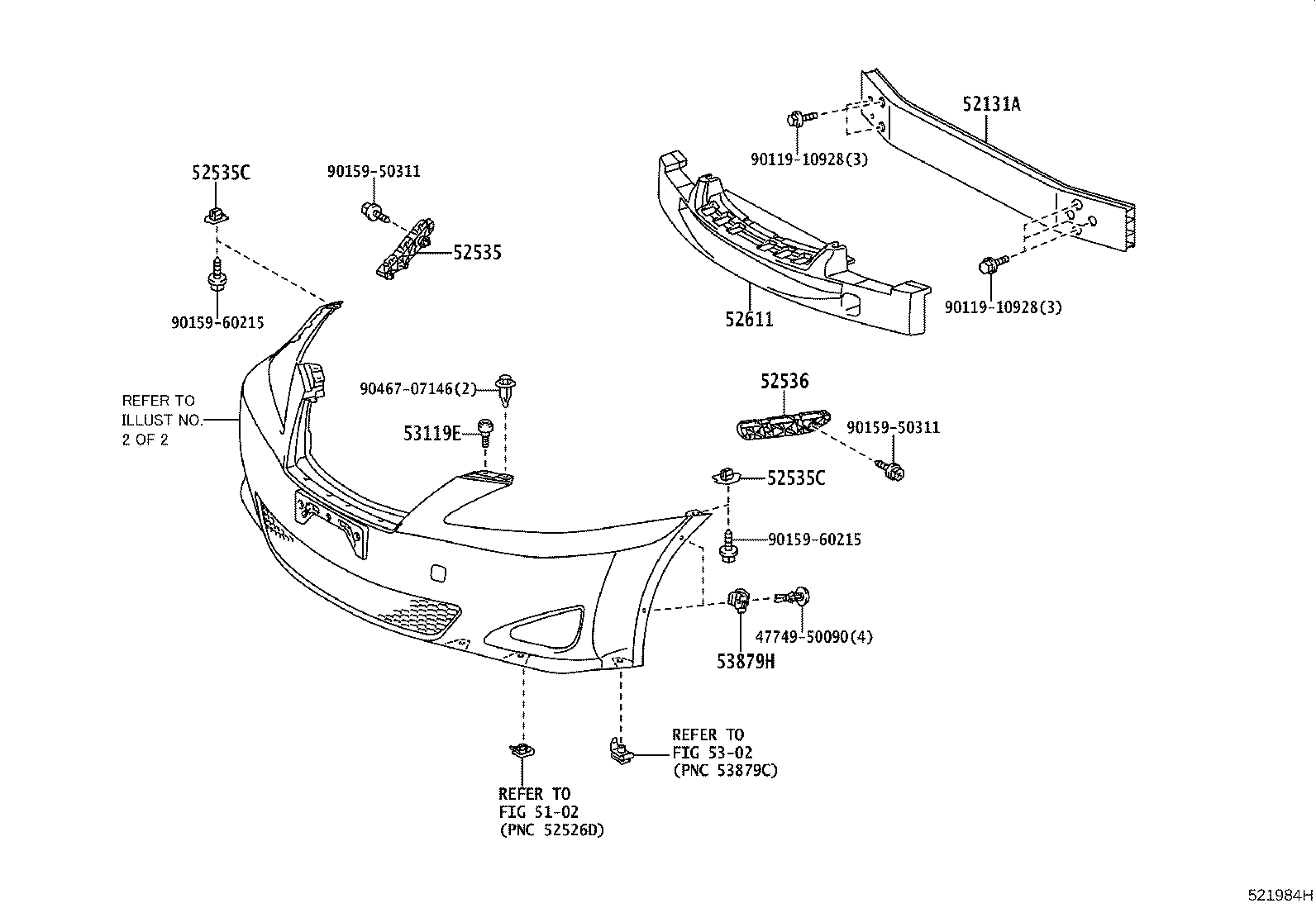

ILLUST NO. 1 OF 2(0808-1008)

Click highlighted areas on diagram

diagram 4774950090 5102 52131A 52535 52535C 52535C 52536 52611 5302 53119E 53879H 9011910928 9011910928 9015950311 9015950311 9015960215 9015960215 9046707146
Part # Description Qty Price
52131A - REINFORCEMENT, FRONT BUMPER
52131-53060

GSE2#

 1
52131-53050

GSE20..ATM

KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC

 1
52131-53060

GSE2#

 1
52131-53050

GSE20..ATM

KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC&CLEARANCE & BACK SONAR-WITH

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-53011

GSE2#

 1
52535-53010

GSE2#

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GSE2#

 2
52535-50060

GSE2#

 2
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GSE2#

 2
52535-50060

GSE2#

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-53010

GSE2#

 1
52536-53011

GSE2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-53060

GSE2#

 1
52611-53100

GSE2#

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-53020

GSE2#

 2
53119-53021

GSE2#

 2
53879H - RETAINER, FRONT FENDER LINER
53879-58010

GSE2#

 4
53879-50020

GSE2#

 4
Common parts
47749-50090
90119-10928
90159-50311
90159-60215
90467-07146
Linked diagrams
5102
5302

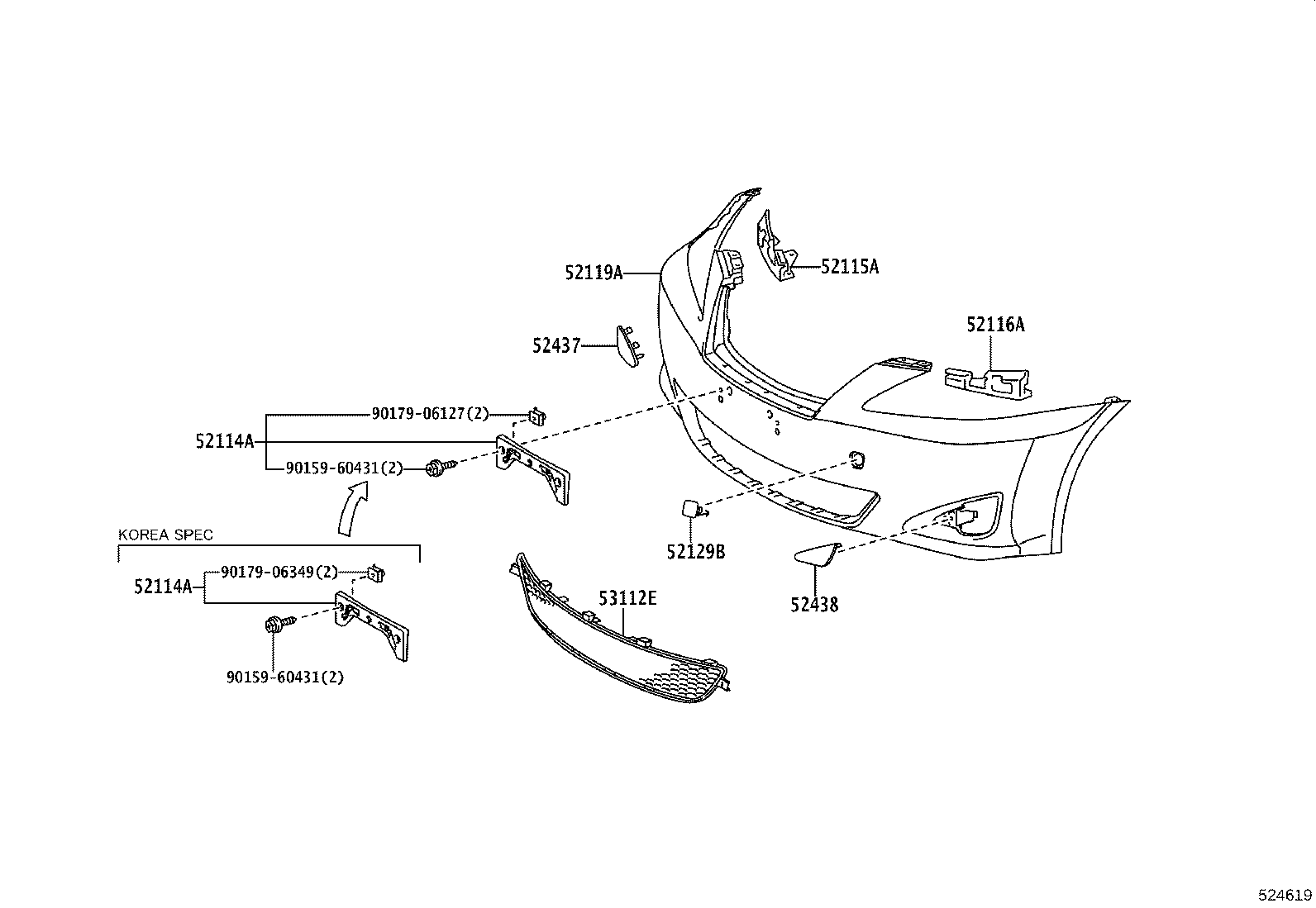

ILLUST NO. 2 OF 2(0808-1008)

Click highlighted areas on diagram

diagram 52114A 52114A 52115A 52116A 52119A 52129B 52437 52438 53112E 9015960431 9015960431 9017906127 9017906349
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-53120

GSE20..ATM

KOREA SPEC

 1
52114-53121

GSE20..ATM

KOREA SPEC

 1
52114-53140

GSE2#

 1
52114-53120

GSE20..ATM

KOREA SPEC

 1
52114-53141

GSE2#

 1
52114-53140

GSE2#

 1
52114-53080

GSE2#

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-53120

GSE20..ATM

KOREA SPEC

 1
52114-53121

GSE20..ATM

KOREA SPEC

 1
52114-53140

GSE2#

 1
52114-53120

GSE20..ATM

KOREA SPEC

 1
52114-53141

GSE2#

 1
52114-53140

GSE2#

 1
52114-53080

GSE2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-53020

GSE2#

 1
52115-53050

GSE2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-53050

GSE2#

 1
52116-53020

GSE2#

 1
52119A - COVER, FRONT BUMPER
52119-53917

GSE2#

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

 1
52119-53925

GSE2#

PAINT REQ.

 1
52119-53919

GSE2#

PAINT REQ.,HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH

 1
52119-53918

GSE2#

PAINT REQ.,HEAD LAMP CLEANER-WITH

 1
52119-53951

GSE20..ATM

PAINT REQ.,KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC

 1
52119-53950

GSE20..ATM

PAINT REQ.,KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC&CLEARANCE & BACK SONAR-WITH

 1
52119-53946

GSE2#

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

 1
52119-53945

GSE2#

PAINT REQ.

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-53902

GSE2#

 1
52129-53904

GSE2#

 1
52437 - COVER, FRONT BUMPER GUARD, RH
52437-53010

GSE2#

 1
52437-53020

GSE2#

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-53010

GSE2#

 1
52438-53020

GSE2#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-53010

GSE2#

NO PAINT REQ.

 1
53113-53010

GSE2#

NO PAINT REQ.

 1
Common parts
90159-60431
90179-06127
90179-06349
