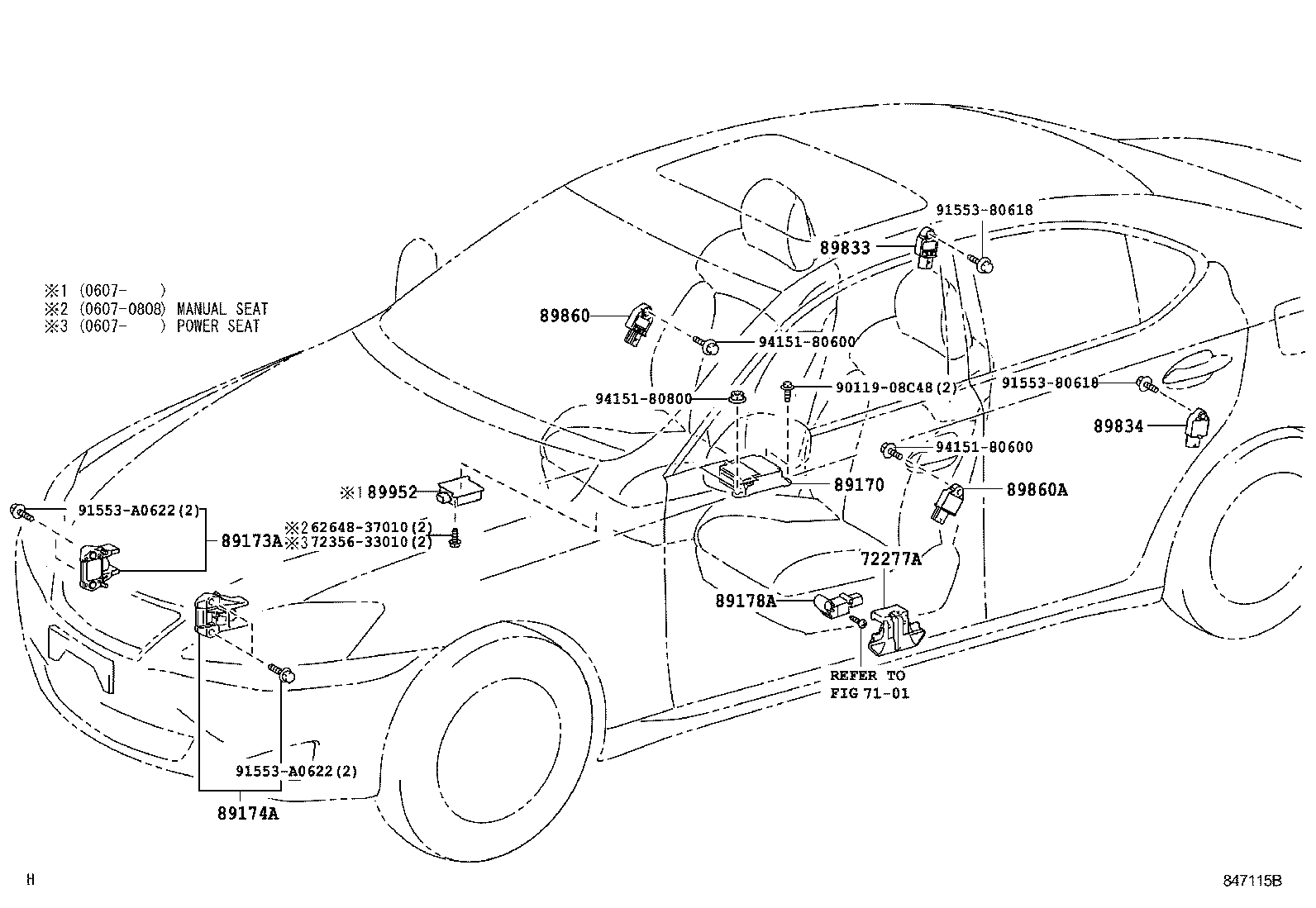

Toyota Lexus is250/350 GSE20 AIR BAG

Part #	Description	Period	Qty
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021	GSE2#	08/2010 - 12/2999	1
72277-33010	GSE20,21	08/2005 - 08/2008	1
72277-33010	GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGERSEAT)	08/2005 - 08/2008	1
72277-33021	GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL	08/2005 - 08/2008	1
72277-33021	GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL	08/2005 - 08/2008	1
72277-33010	GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT	08/2005 - 08/2008	1
72277-33021	GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL	08/2005 - 08/2008	1
72277-33021	GSE20,21 FRONT SEAT-SMOOTH LEATHER	08/2005 - 08/2008	1
72277-33021	GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER	08/2005 - 08/2008	1
72277-33010	GSE20,21 CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT	08/2010 - 12/2999	1
89170 - SENSOR ASSY, AIR BAG
89170-53250	GSE2#	08/2010 - 08/2012	1
89170-53480	GSE20 KOREA SPEC	08/2012 - 12/2999	1
89170-53080	GSE20..ATM KOREA SPEC	08/2010 - 08/2012	1
89170-53080	GSE2#	08/2005 - 07/2006	1
89170-53470	GSE2#	08/2012 - 12/2999	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39415	GSE2#	08/2012 - 12/2999	1
89173-09290	GSE2#	08/2005 - 08/2007	1
89173-29255	GSE2#	08/2010 - 08/2012	1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09290	GSE2#	08/2005 - 08/2007	1
89173-29255	GSE2#	08/2010 - 08/2012	1
89173-39415	GSE2#	08/2012 - 12/2999	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33040	GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT	08/2005 - 08/2008	1
89178-33040	GSE20,21 X PACKAGE&FRONT SEAT-SPORT FABRIC ,POWER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGERSEAT)	08/2005 - 08/2008	1
89178-33050	GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL	08/2005 - 08/2008	1
89178-33040	GSE20,21	08/2005 - 08/2008	1
89178-33050	GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL	08/2005 - 08/2008	1
89178-33050	GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER	08/2005 - 08/2008	1
89178-33050	GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL	08/2005 - 08/2008	1
89178-33050	GSE20,21 FRONT SEAT-SMOOTH LEATHER	08/2005 - 08/2008	1
89178-33050	GSE2#	08/2010 - 12/2999	1
89178-33040	GSE20,21 CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT	08/2010 - 12/2999	1
89833 - SENSOR, AIR BAG, REAR RH
89831-53040	GSE2#	08/2012 - 12/2999	1
89831-0W040	GSE2#	08/2005 - 07/2007	1
89831-22020	GSE2#	08/2010 - 08/2012	1
89834 - SENSOR, AIR BAG, REAR LH
89831-0W040	GSE2#	08/2005 - 07/2007	1
89831-53040	GSE2#	08/2012 - 12/2999	1
89831-22020	GSE2#	08/2010 - 08/2012	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-02020	GSE2#	08/2005 - 07/2007	1
89831-53010	GSE2#	08/2010 - 08/2012	1
89831-53030	GSE2#	08/2012 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-53010	GSE2#	08/2010 - 08/2012	1
89831-53030	GSE2#	08/2012 - 12/2999	1
89831-02020	GSE2#	08/2005 - 07/2007	1
89952 - COMPUTER, OCCUPANT DETECTION
89952-0W062	GSE2#	09/2011 - 04/2013	1
89952-0W061	GSE2#	08/2010 - 09/2011	1
89952-0W061	GSE20..ATM KOREA SPEC&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)	08/2010 - 09/2011	1
89952-0W061	GSE20..ATM KOREA SPEC&FB PACKAGE	08/2010 - 09/2011	1
89952-0W062	GSE20..ATM KOREA SPEC&FB PACKAGE	09/2011 - 04/2013	1
89952-0W061	GSE20,21..ATM MEXICO SPEC	08/2010 - 09/2011	1
89952-0W061	GSE20..ATM KOREA SPEC	08/2010 - 09/2011	1
89952-0W181	GSE20,21..ATM FB PACKAGE	09/2011 - 04/2013	1
89952-0W181	GSE20..ATM CANADA SPEC&F PACKAGE	09/2011 - 04/2013	1
89952-0W062	GSE20..ATM KOREA SPEC&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)	09/2011 - 04/2013	1
89952-0W062	GSE20..ATM KOREA SPEC	09/2011 - 04/2013	1
89952-0W062	GSE20,21..ATM MEXICO SPEC	09/2011 - 04/2013	1
Common parts
62648-37010
72356-33010
90119-08C48
91553-80618
91553-A0622
94151-80600
94151-80800
Linked diagrams
7101

GSE20L-AETLHA (2010)

(0508- )
