GSE20L-AETLHA (2010)

Toyota Lexus Is250/350

Production Aug 2010 - Apr 2013
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-1011)

Click highlighted areas on diagram

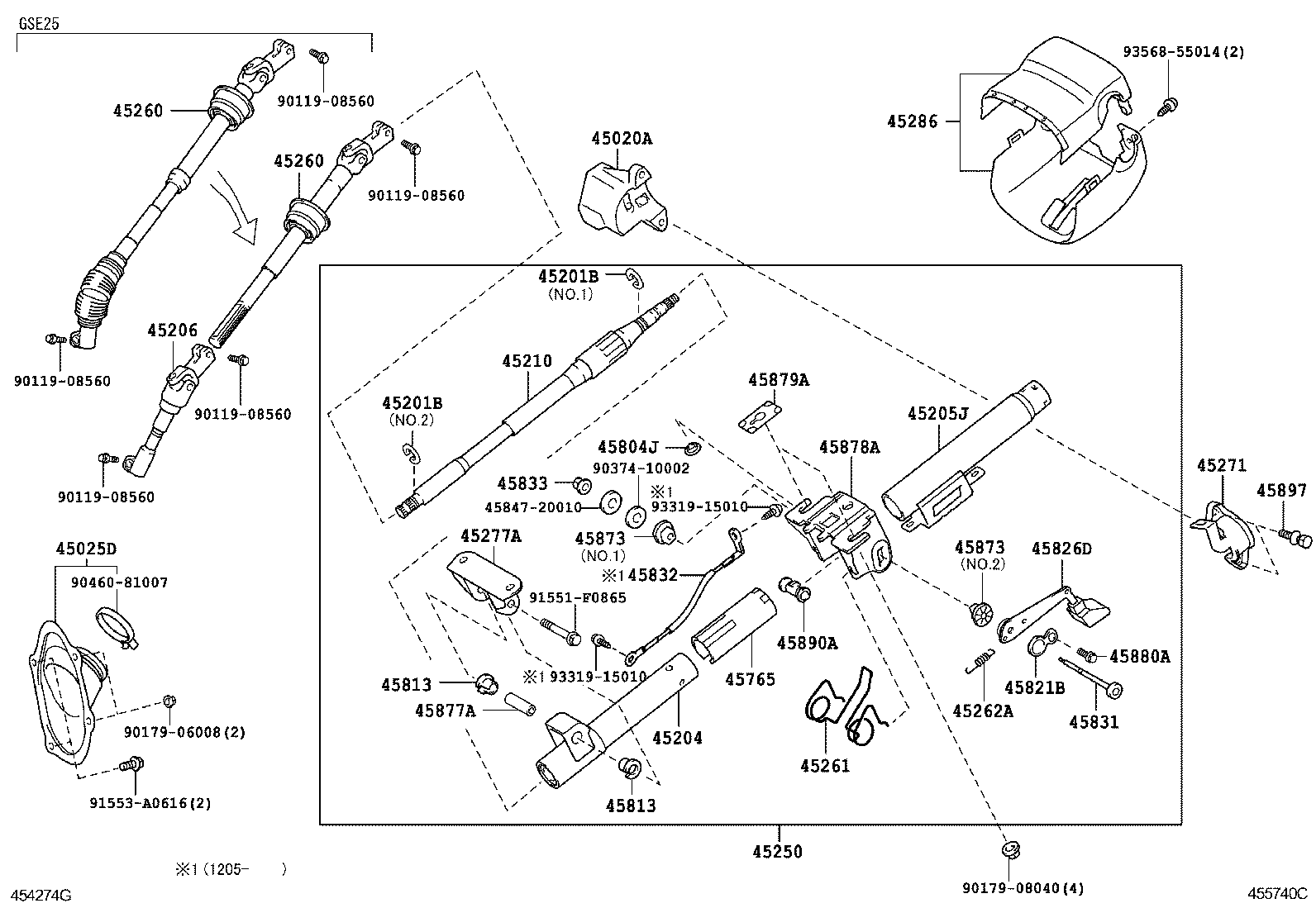

MANUAL TILT & TELESCOPIC STEERING

diagram 45020A 45025D 45201B 45201B 45204 45205J 45206 45210 45250 45260 45260 45261 45262A 45271 45277A 45286 45765 45804J 45813 45813 45821B 45826D 45831 45833 4584720010 45873 45873 45877A 45878A 45879A 45880A 45890A 45897 9011908560 9011908560 9011908560 9011908560 9011908560 9017906008 9017908040 9037410002 9046081007 91551F0865 91553A0616 9356855014
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A60

GSE2#..ATM

LUXURY PACKAGE

 1
45020-30A60

GSE20,21

SPORT PACKAGE

 1
45020-30A60

GSE2#

LUXURY PACKAGE

 1
45020-30A60

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45020-52140

GSE2#

 1
45020-52140

GSE2#

 1
45020-30A60

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-30390

GSE20,21

 1
45025-30390

GSE20,21

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-21023

GSE2#

T=1.20,NO.1

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-21023

GSE2#

T=1.20,NO.1

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-21023

GSE2#

T=1.20,NO.1

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-21023

GSE2#

T=1.20,NO.1

 1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-53010

GSE2#

 1
45204-53010

GSE2#

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-22270

GSE2#

 1
45205-22270

GSE2#

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-30111

GSE20,21

 1
45206-30110

GSE20,21

 1
45206-30112

GSE20,21

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-22290

GSE2#

 1
45210-22290

GSE2#

 1
45210-22291

GSE2#

 1
45250 - COLUMN ASSY, STEERING
45250-53060

GSE20,21

SPORT PACKAGE

 1
45250-53030

GSE2#

 1
45250-53030

GSE2#

 1
45250-53061

GSE2#..ATM

LUXURY PACKAGE

 1
45250-53060

GSE2#

LUXURY PACKAGE

 1
45250-53031

GSE2#

 1
45250-53061

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45250-53061

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45250-53032

GSE2#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GSE20,21

 1
45260-30200

GSE20,21

 1
45260-30201

GSE20,21

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GSE20,21

 1
45260-30200

GSE20,21

 1
45260-30201

GSE20,21

 1
45261 - SPRING, TILT STEERING JUMP UP
45261-35020

GSE2#

 1
45261-35020

GSE2#

 1
45262A - SPRING, TILT LEVER RETURN
45262-35010

GSE2#

 1
45262-35010

GSE2#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-22030

GSE2#

 1
45271-22030

GSE2#

 1
45277A - SUPPORT, TILT STEERING
45277-53010

GSE2#

 1
45277-53011

GSE2#

 1
45277-53010

GSE2#

 1
45286 - COVER, STEERING COLUMN
45286-53903C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45286-53905C0

GSE2#

LUXURY PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53905C0

GSE20,21

SPORT PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE20,21..ATM

CANADA SPEC&F PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE2#..ATM

LUXURY PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE20..ATM

KOREA SPEC&F PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53914C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-35010

GSE2#

 1
45765-35010

GSE2#

 1
45804J - COLLAR SUB-ASSY, BREAK AWAY
45804-22030

GSE2#

 2
45804-22030

GSE2#

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-12020

GSE2#

OD=24-16

 2
45813-12020

GSE2#

OD=24-16

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-12020

GSE2#

OD=24-16

 2
45813-12020

GSE2#

OD=24-16

 2
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-35020

GSE2#

 1
45821-35020

GSE2#

 1
45826D - LEVER, STEERING TELESCOPIC
45826-22130

GSE2#

 1
45826-22130

GSE2#

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-35010

GSE2#

 1
45831-35010

GSE2#

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-20030

GSE2#

 1
45833-20030

GSE2#

 1
45873 - STOPPER, STEERING COLUMN TUBE
45873-35010

GSE2#

NO.2

 1
45873-35010

GSE2#

NO.2

 1
45873-20050

GSE2#

NO.1

 1
45873-20050

GSE2#

NO.1

 1
45873 - STOPPER, STEERING COLUMN TUBE
45873-35010

GSE2#

NO.2

 1
45873-35010

GSE2#

NO.2

 1
45873-20050

GSE2#

NO.1

 1
45873-20050

GSE2#

NO.1

 1
45877A - SPACER, STEERING COLUMN BRACKET
45877-35030

GSE2#

 1
45877-35030

GSE2#

 1
45878A - BRACKET, BREAK AWAY
45878-35160

GSE2#

 1
45878-35160

GSE2#

 1
45878-35161

GSE2#

 1
45879A - CAPSULE, BREAK AWAY
45879-22070

GSE2#

 2
45879-22070

GSE2#

 2
45880A - BOLT(FOR STEERING TILT LEVER)
45832-12010

GSE2#

 1
45832-12010

GSE2#

 1
45890A - PAWL ASSY, TILT STEERING
45823-35020

GSE2#

 1
45823-35020

GSE2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GSE2#

 2
45897-12020

GSE2#

 2
Common parts
45847-20010
90119-08560
90179-06008
90179-08040
90374-10002
90460-81007
91551-F0865
91553-A0616
93568-55014

(1011- )

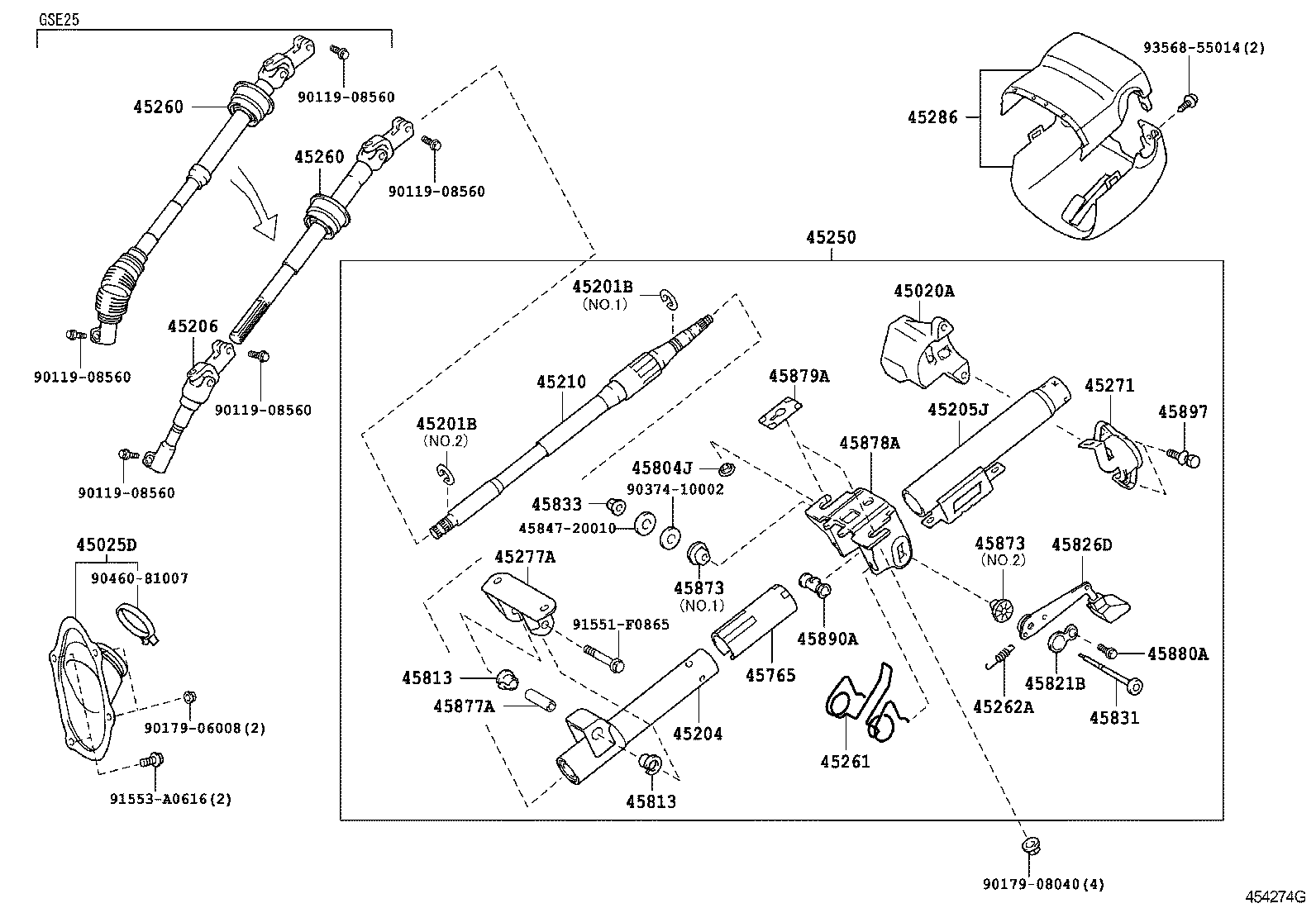

Click highlighted areas on diagram

MANUAL TILT & TELESCOPIC STEERING

diagram 45020A 45025D 45201B 45201B 45204 45205J 45206 45210 45250 45260 45260 45261 45262A 45271 45277A 45286 45765 45804J 45813 45813 45821B 45826D 45831 45832 45833 4584720010 45873 45873 45877A 45878A 45879A 45880A 45890A 45897 9011908560 9011908560 9011908560 9011908560 9011908560 9017906008 9017908040 9037410002 9046081007 91551F0865 91553A0616 9331915010 9331915010 9356855014
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A60

GSE2#..ATM

LUXURY PACKAGE

 1
45020-30A60

GSE20,21

SPORT PACKAGE

 1
45020-30A60

GSE2#

LUXURY PACKAGE

 1
45020-30A60

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45020-52140

GSE2#

 1
45020-52140

GSE2#

 1
45020-30A60

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-30390

GSE20,21

 1
45025-30390

GSE20,21

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-21023

GSE2#

T=1.20,NO.1

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-21023

GSE2#

T=1.20,NO.1

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-21023

GSE2#

T=1.20,NO.1

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-17269

GSE2#

T=1.20,NO.2

 1
90520-21023

GSE2#

T=1.20,NO.1

 1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-53010

GSE2#

 1
45204-53010

GSE2#

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-22270

GSE2#

 1
45205-22270

GSE2#

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-30111

GSE20,21

 1
45206-30110

GSE20,21

 1
45206-30112

GSE20,21

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-22290

GSE2#

 1
45210-22290

GSE2#

 1
45210-22291

GSE2#

 1
45250 - COLUMN ASSY, STEERING
45250-53060

GSE20,21

SPORT PACKAGE

 1
45250-53030

GSE2#

 1
45250-53030

GSE2#

 1
45250-53061

GSE2#..ATM

LUXURY PACKAGE

 1
45250-53060

GSE2#

LUXURY PACKAGE

 1
45250-53031

GSE2#

 1
45250-53061

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45250-53061

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45250-53032

GSE2#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GSE20,21

 1
45260-30200

GSE20,21

 1
45260-30201

GSE20,21

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GSE20,21

 1
45260-30200

GSE20,21

 1
45260-30201

GSE20,21

 1
45261 - SPRING, TILT STEERING JUMP UP
45261-35020

GSE2#

 1
45261-35020

GSE2#

 1
45262A - SPRING, TILT LEVER RETURN
45262-35010

GSE2#

 1
45262-35010

GSE2#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-22030

GSE2#

 1
45271-22030

GSE2#

 1
45277A - SUPPORT, TILT STEERING
45277-53010

GSE2#

 1
45277-53011

GSE2#

 1
45277-53010

GSE2#

 1
45286 - COVER, STEERING COLUMN
45286-53903C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45286-53905C0

GSE2#

LUXURY PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53905C0

GSE20,21

SPORT PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE20,21..ATM

CANADA SPEC&F PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE2#..ATM

LUXURY PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE20..ATM

KOREA SPEC&F PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53914C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45765 - GUIDE, TELESCOPIC STEERING
45765-35010

GSE2#

 1
45765-35010

GSE2#

 1
45804J - COLLAR SUB-ASSY, BREAK AWAY
45804-22030

GSE2#

 2
45804-22030

GSE2#

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-12020

GSE2#

OD=24-16

 2
45813-12020

GSE2#

OD=24-16

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-12020

GSE2#

OD=24-16

 2
45813-12020

GSE2#

OD=24-16

 2
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-35020

GSE2#

 1
45821-35020

GSE2#

 1
45826D - LEVER, STEERING TELESCOPIC
45826-22130

GSE2#

 1
45826-22130

GSE2#

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-35010

GSE2#

 1
45831-35010

GSE2#

 1
45832 - CABLE, TILT STEERING SUPPORT BOND
45832-53010

GSE2#

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-20030

GSE2#

 1
45833-20030

GSE2#

 1
45873 - STOPPER, STEERING COLUMN TUBE
45873-35010

GSE2#

NO.2

 1
45873-35010

GSE2#

NO.2

 1
45873-20050

GSE2#

NO.1

 1
45873-20050

GSE2#

NO.1

 1
45873 - STOPPER, STEERING COLUMN TUBE
45873-35010

GSE2#

NO.2

 1
45873-35010

GSE2#

NO.2

 1
45873-20050

GSE2#

NO.1

 1
45873-20050

GSE2#

NO.1

 1
45877A - SPACER, STEERING COLUMN BRACKET
45877-35030

GSE2#

 1
45877-35030

GSE2#

 1
45878A - BRACKET, BREAK AWAY
45878-35160

GSE2#

 1
45878-35160

GSE2#

 1
45878-35161

GSE2#

 1
45879A - CAPSULE, BREAK AWAY
45879-22070

GSE2#

 2
45879-22070

GSE2#

 2
45880A - BOLT(FOR STEERING TILT LEVER)
45832-12010

GSE2#

 1
45832-12010

GSE2#

 1
45890A - PAWL ASSY, TILT STEERING
45823-35020

GSE2#

 1
45823-35020

GSE2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GSE2#

 2
45897-12020

GSE2#

 2
Common parts
45847-20010
90119-08560
90179-06008
90179-08040
90374-10002
90460-81007
91551-F0865
91553-A0616
93319-15010
93568-55014

(1011- )ATM

Click highlighted areas on diagram

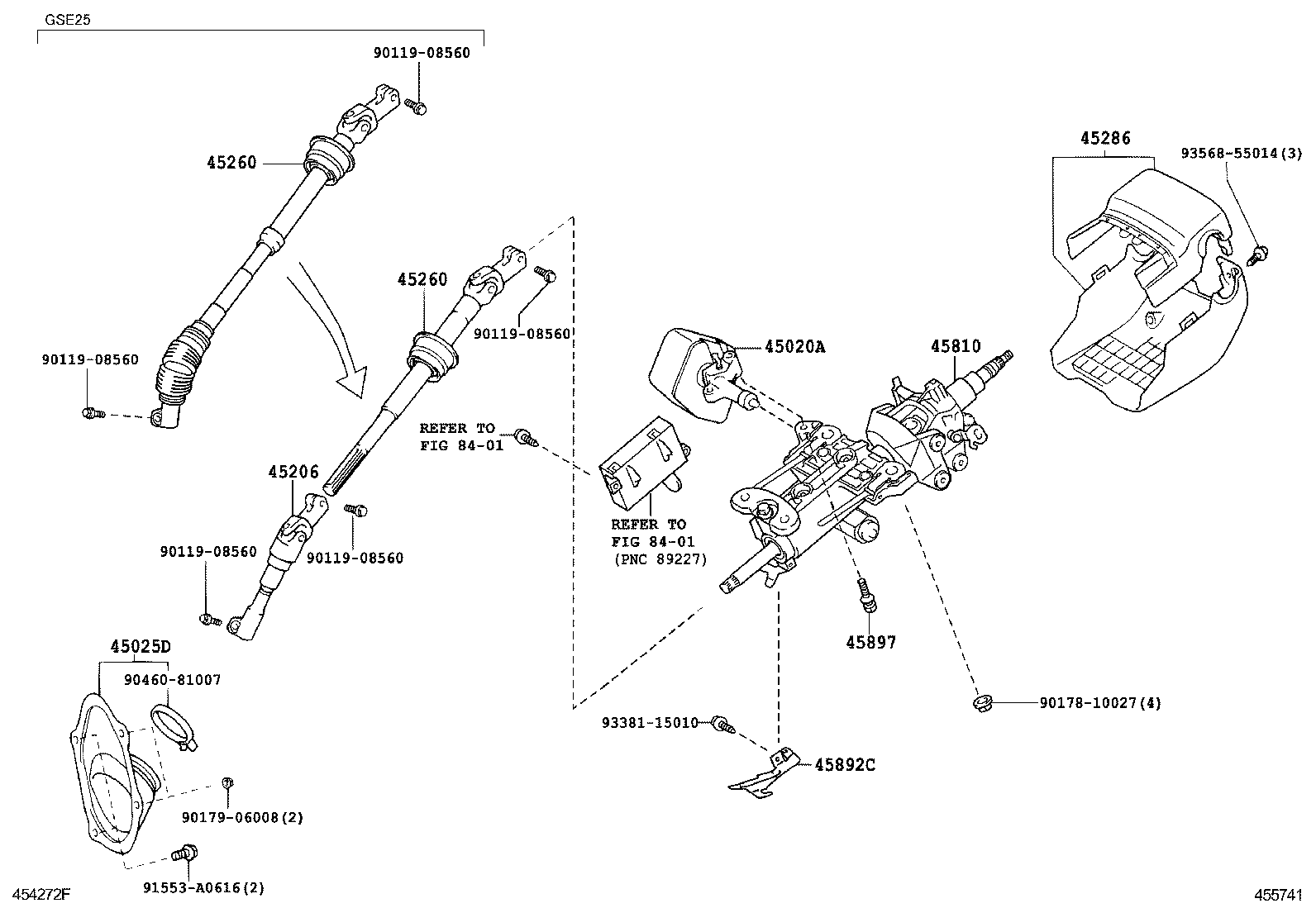

POWER TILT & TELESCOPIC STEERING

diagram 45020A 45025D 45206 45260 45260 45286 45810 45892C 45897 8401 8401 9011908560 9011908560 9011908560 9011908560 9011908560 9017810027 9017906008 9046081007 91553A0616 9338115010 9356855014
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A60

GSE2#..ATM

LUXURY PACKAGE

 1
45020-30A60

GSE20,21

SPORT PACKAGE

 1
45020-30A60

GSE2#

LUXURY PACKAGE

 1
45020-30A60

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45020-52140

GSE2#

 1
45020-52140

GSE2#

 1
45020-30A60

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-30390

GSE20,21

 1
45025-30390

GSE20,21

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-30111

GSE20,21

 1
45206-30110

GSE20,21

 1
45206-30112

GSE20,21

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GSE20,21

 1
45260-30200

GSE20,21

 1
45260-30201

GSE20,21

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GSE20,21

 1
45260-30200

GSE20,21

 1
45260-30201

GSE20,21

 1
45286 - COVER, STEERING COLUMN
45286-53903C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45286-53905C0

GSE2#

LUXURY PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53905C0

GSE20,21

SPORT PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE20,21..ATM

CANADA SPEC&F PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE2#..ATM

LUXURY PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53912C0

GSE20..ATM

KOREA SPEC&F PACKAGE,BLACK,TRIM0#,1#,2#

 1
45286-53914C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45810 - GEAR ASSY, TILT STEERING, W/MOTOR
45810-53020

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45810-53020

GSE2#..ATM

LUXURY PACKAGE

 1
45810-53020

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45892C - BRACKET, RETURN SPRING
45892-30020

GSE20..ATM

KOREA SPEC&F PACKAGE

 1
45892-30020

GSE2#..ATM

LUXURY PACKAGE

 1
45892-30020

GSE20,21..ATM

CANADA SPEC&F PACKAGE

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GSE2#

 2
45897-12020

GSE2#

 2
Common parts
90119-08560
90178-10027
90179-06008
90460-81007
91553-A0616
93381-15010
93568-55014
Linked diagrams
8401
