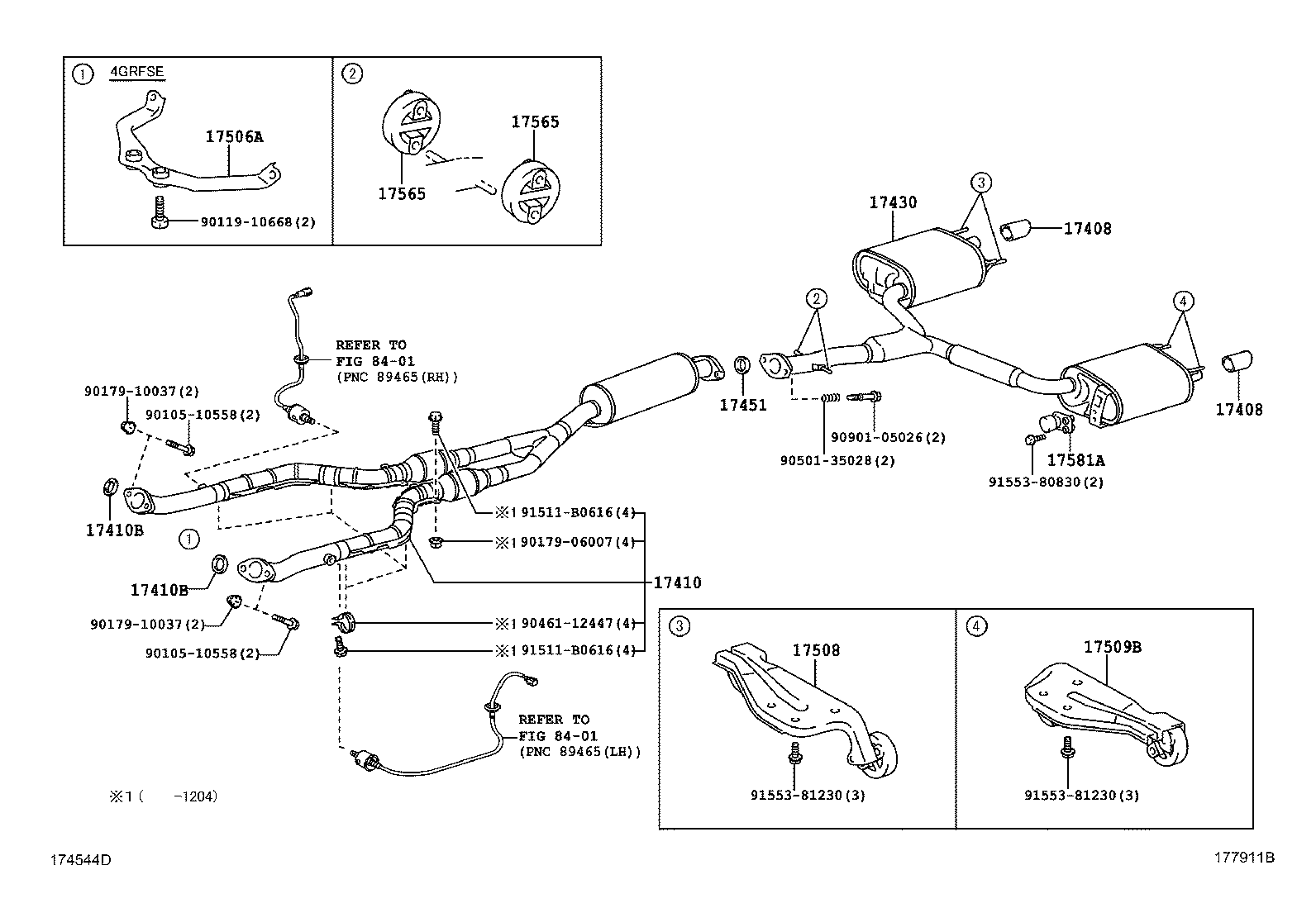

Toyota Lexus is250/350 GSE20 EXHAUST PIPE

Part #	Description	Period	Qty
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31070	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	2
17408-31030	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31070	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	2
17408-31030	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31560	4GRFSE..GSE20 *114=TOYOTA/GD8/Y	08/2005 - 08/2008	1
17410-31A30	4GRFSE..GSE20 *114=TOYOTA/GQ2/Y	08/2010 - 01/2011	1
17410-31G60	4GRFSE..GSE20 *114=TOYOTA/RC4/Y	04/2012 - 08/2012	1
17410-31K00	4GRFSE..GSE20 *114=TOYOTA/RA4/Y	08/2012 - 04/2013	1
17410-31A31	4GRFSE..GSE20 *114=TOYOTA/GQ2/Y	02/2011 - 03/2012	1
17410B - GASKET, EXHAUST PIPE
90917-06078	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	2
90917-06078	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	2
17410B - GASKET, EXHAUST PIPE
90917-06078	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	2
90917-06078	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31490	4GRFSE..GSE20,25	08/2005 - 08/2008	1
17430-31A70	4GRFSE..GSE20,25	08/2010 - 01/2012	1
17430-31A71	4GRFSE..GSE20,25	02/2012 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
17451-31010	2GRFSE,4GRFSE..GSE2#	08/2005 - 06/2008	1
17451-31012	2GRFSE,4GRFSE..GSE2#	03/2011 - 12/2999	1
17451-31011	2GRFSE,4GRFSE..GSE2#	08/2010 - 02/2011	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030	4GRFSE..GSE20..ATM	08/2010 - 12/2999	1
17506-31030	4GRFSE..GSE20..ATM	08/2005 - 08/2008	1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-31100	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	1
17508-31101	2GRFSE,4GRFSE..GSE2#	12/2010 - 12/2999	1
17508-31100	2GRFSE,4GRFSE..GSE2#	08/2010 - 11/2010	1
17509B - SUPPORT, EXHAUST PIPE NO.4
17509-31060	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	1
17509-31060	2GRFSE,4GRFSE..GSE2#	08/2010 - 11/2010	1
17509-31061	2GRFSE,4GRFSE..GSE2#	12/2010 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	2
17565-46040	2GRFSE,4GRFSE..GSE2#	08/2005 - 05/2007	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	2
17565-46040	2GRFSE,4GRFSE..GSE2#	08/2005 - 05/2007	2
17581A - DAMPER, EXHAUST PIPE
17581-46120	2GRFSE,4GRFSE..GSE2#	08/2005 - 08/2008	1
17581-46120	2GRFSE,4GRFSE..GSE2#	08/2010 - 12/2999	1
Common parts
90105-10558
90119-10668
90179-06007
90179-10037
90461-12447
90501-35028
90901-05026
91511-B0616
91553-80830
91553-81230
Linked diagrams
8401

GSE20L-AETLHA (2010)

(0508- )
