GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

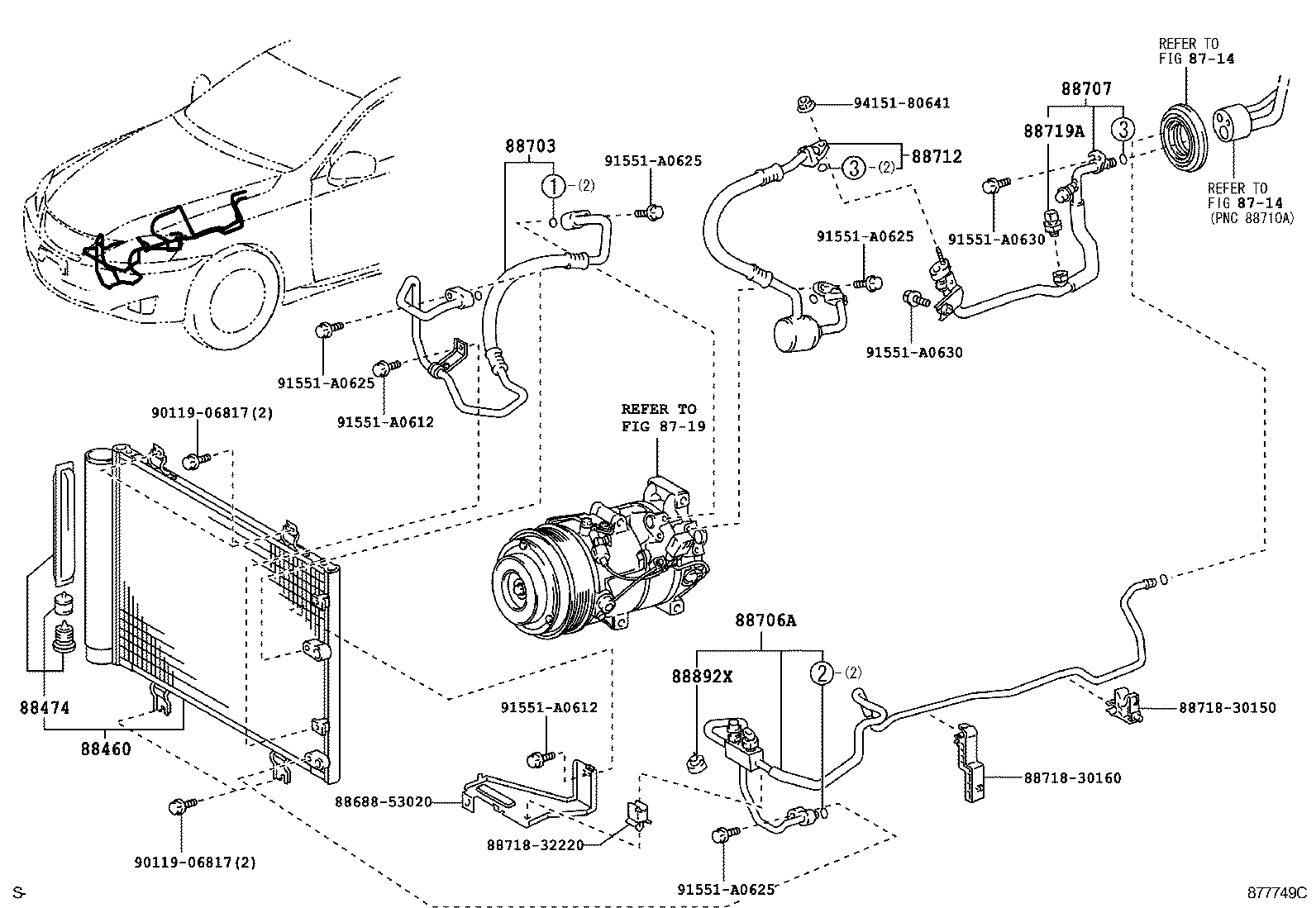

ILLUST NO. 1 OF 2(0509- )MTM

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88474 8868853020 88703 88706A 88707 88712 8871830150 8871830160 8871832220 88719A 88892X 9011906817 9011906817 91551A0612 91551A0612 91551A0625 91551A0625 91551A0625 91551A0625 91551A0630 91551A0630 9415180641
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-53030

GSE2#

 1
88474 - DRYER, COOLER
88474-17010

GSE2#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-53090

GSE2#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-53080

GSE2#

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-53070

GSE20..MTM

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-53100

GSE20,21

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-26020

GSE20..MTM

 1
Common parts
88688-53020
88718-30150
88718-30160
88718-32220
90119-06817
91551-A0612
91551-A0625
91551-A0630
94151-80641
Linked diagrams
8714
8719
