GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0908)

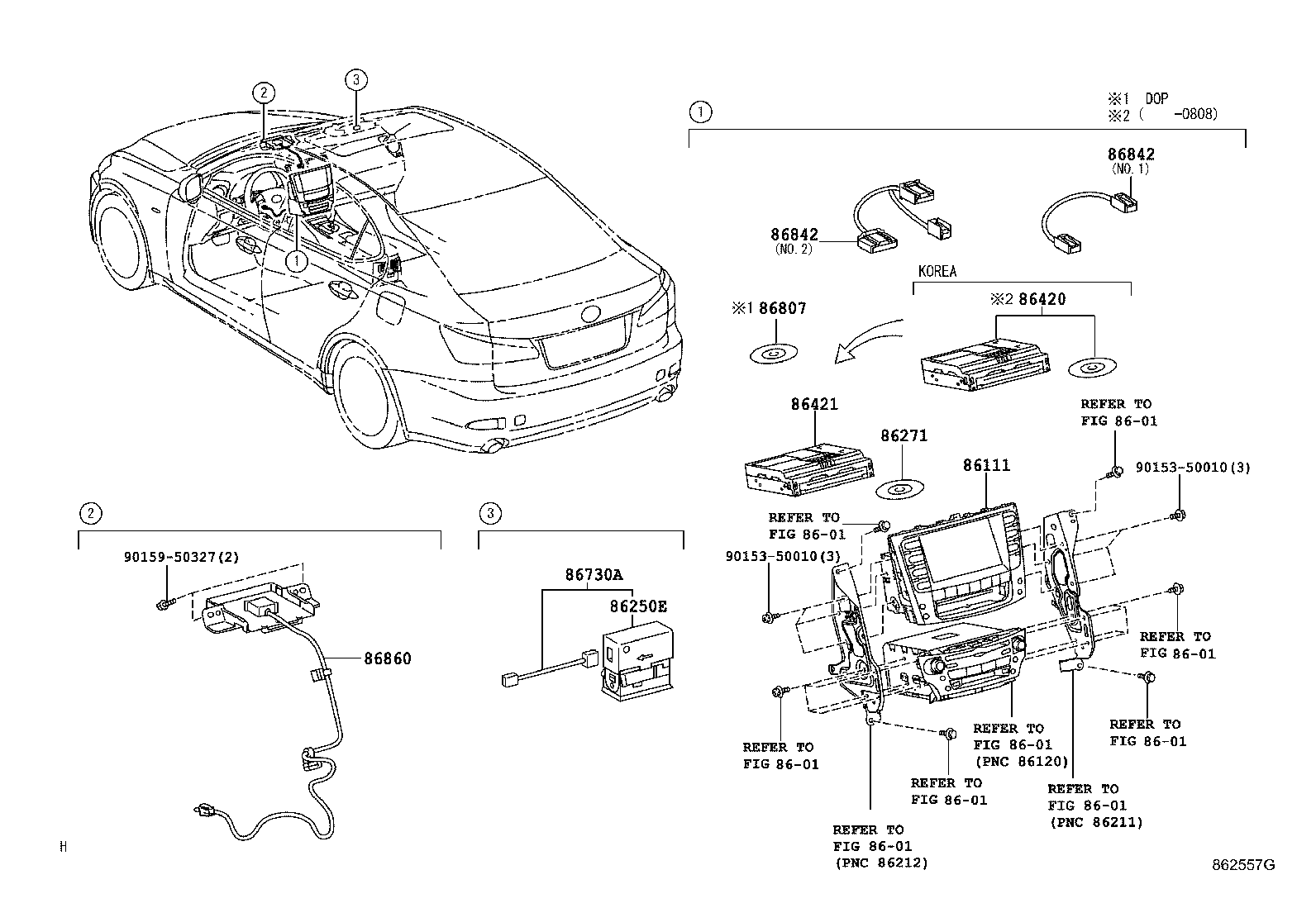

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 8601 86111 86250E 86271 86420 86421 86730A 86807 86842 86842 86860 9015350010 9015350010 9015950327
Part # Description Qty Price
86111 - MULTI-DISPLAY
86111-53050

GSE20,25

DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86111-53050

GSE20,25

DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86111-53140

GSE20,25

DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86111-53140

GSE20,25

DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86250-52030

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86271 - DISC, DISC PLAYER
86271-53021

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86271-53022

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86271-53020

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86271-53020

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86271-53021

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86271-53022

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86421 - BOARD, NAVIGATION MODULE
86421-33040

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86421-53020

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86421-53020

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86421-53020

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86421-33040

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86421-53020

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53020

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86730-53020

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86842 - WIRE, NAVIGATION, NO.1
86842-53030

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.1

 1
86842-53050

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.2

 1
86842-53030

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1

 1
86842-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2

 1
86842 - WIRE, NAVIGATION, NO.1
86842-53030

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.1

 1
86842-53050

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.2

 1
86842-53030

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1

 1
86842-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-53050

GSE2#

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86860-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
Common parts
90153-50010
90159-50327
Linked diagrams
8601
