GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

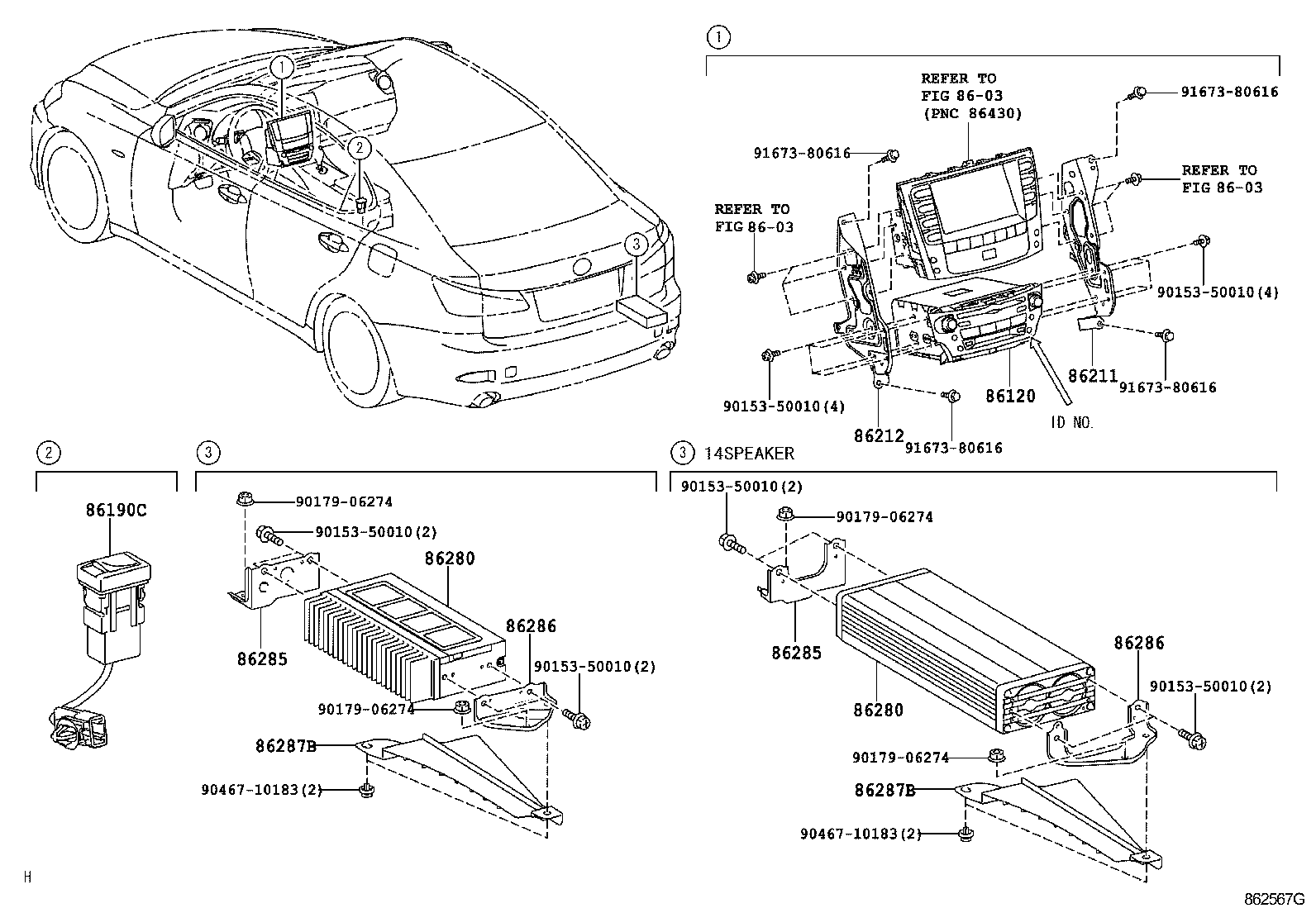

ILLUST NO. 1 OF 2(0508-0908)

Click highlighted areas on diagram

diagram 8603 8603 8603 86120 86190C 86211 86212 86280 86280 86285 86285 86286 86286 86287B 86287B 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9017906274 9017906274 9017906274 9017906274 9046710183 9046710183 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-53320

GSE2#

PIONEER, ID=P1801

 1
86120-53340

GSE2#

PIONEER, ID=P6500,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86120-53330

GSE2#

PIONEER, ID=P1800,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86120-53430

GSE2#

PIONEER, ID=P1809,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-53020

GSE2#

 1
86211 - BRACKET, RADIO, NO.1
86211-53020

GSE2#

 1
86212 - BRACKET, RADIO, NO.2
86212-53020

GSE2#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W360

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86280-0W360

GSE2#

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86280-53110

GSE2#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W360

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86280-0W360

GSE2#

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86280-53110

GSE2#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-53040

GSE2#

 1
86285-53050

GSE2#

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86285-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-53040

GSE2#

 1
86285-53050

GSE2#

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86285-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-53040

GSE2#

 1
86286-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86286-53050

GSE2#

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-53040

GSE2#

 1
86286-53050

GSE2#

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86286-53050

GSE2#

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

 1
86287B - COVER, AMPLIFIER
86287-53010

GSE2#

 1
86287B - COVER, AMPLIFIER
86287-53010

GSE2#

 1
Common parts
90153-50010
90179-06274
90467-10183
91673-80616
Linked diagrams
8603
