GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)

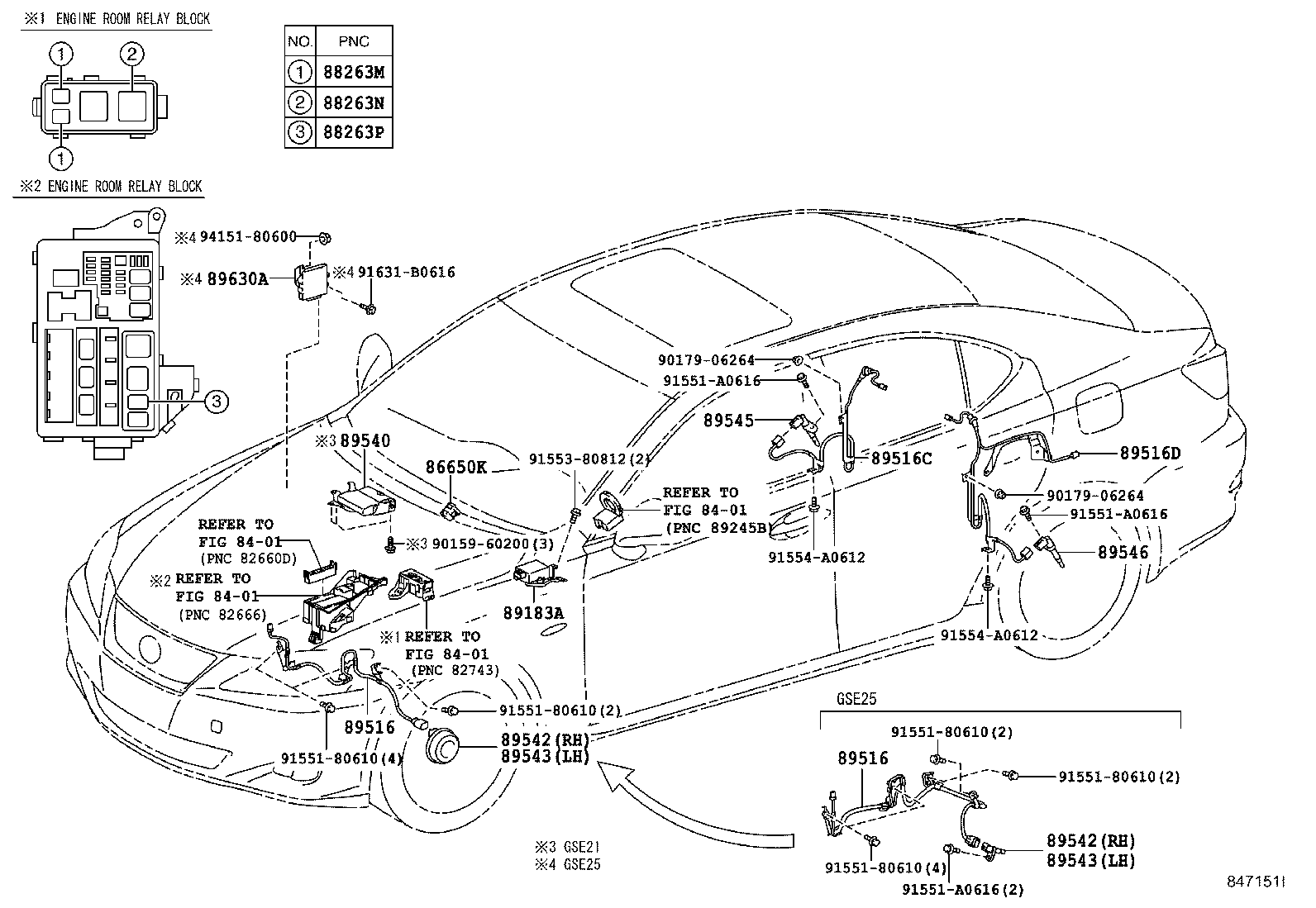

Click highlighted areas on diagram

diagram 8401 8401 8401 8401 86650K 88263M 88263N 88263P 89183A 89516 89516 89516C 89516D 89540 89542 89542 89543 89543 89545 89546 89630A 9015960200 9017906264 9017906264 9155180610 9155180610 9155180610 9155180610 9155180610 91551A0616 91551A0616 91551A0616 9155380812 91554A0612 91554A0612 91631B0616 9415180600
Part # Description Qty Price
86650K - BUZZER ASSY, SKID CONTROL
86652-48010

GSE2#

 1
86652-50010

GSE2#

 1
88263M - RELAY, ABS SOLENOID
88263-32070

GSE20,25

 1
88263N - RELAY, ABS MOTOR
88263-21010

GSE2#

 1
89183A - SENSOR, YAWRATE
89180-22020

GSE2#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-30030

GSE20,21

LH

 1
89516-30020

GSE20,21

RH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-30030

GSE20,21

LH

 1
89516-30020

GSE20,21

RH

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-22020

GSE2#

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-22010

GSE2#

 1
89516-22040

GSE2#

HEADLAMP-DISCHARGE WITH/AUTO LEVELING

 1
89542 - SENSOR, SPEED, FRONT RH
89542-30260

GSE20,21

 1
89542 - SENSOR, SPEED, FRONT RH
89542-30260

GSE20,21

 1
89543 - SENSOR, SPEED, FRONT LH
89543-30260

GSE20,21

 1
89543 - SENSOR, SPEED, FRONT LH
89543-30260

GSE20,21

 1
89545 - SENSOR, SPEED, REAR RH
89545-30070

GSE2#

 1
89546 - SENSOR, SPEED, REAR LH
89546-30070

GSE2#

 1
Common parts
90159-60200
90179-06264
91551-80610
91551-A0616
91553-80812
91554-A0612
91631-B0616
94151-80600
Linked diagrams
8401
