GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
ILLUST NO. 5 OF 8(0508-1108)
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-53010 |
GSE2# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-48010 |
GSE2# |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-60030 |
GSE2# HEAD LAMP CLEANER-WITH |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90010-01039 |
GSE2# 14V0.91W,W(GREEN CAP,HEAD LAMP CLEANER-WITH |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84580-53070 |
GSE20..MTM |
1 | ||
| 84580F - BULB, THROTTLE POSITION SWITCH | ||||
| 90010-01039 |
GSE20..MTM 14V0.91W,W(GREEN CAP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30190 |
GSE2# SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 84751-30180 |
GSE2# SEAT HEATER-HEAT & COOL |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01070 |
GSE2# 14V1.8W,W(GREEN CAP),SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
1 | ||
| 90010-01070 |
GSE2# 14V1.8W,W(GREEN CAP),SEAT HEATER-HEAT & COOL |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33050 |
GSE2# |
1 | ||
| 84840-33080 |
GSE2# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33050 |
GSE2# |
1 | ||
| 84840-33080 |
GSE2# |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
GSE2# |
1 | ||
| 84940 - SWITCH ASSY, CURTAIN | ||||
| 84940-22010 |
GSE2# LUXURY PACKAGE |
1 | ||
| 84940A - BULB, CURTAIN SWITCH | ||||
| 90010-01062 |
GSE2# 14V0.63W,W/GREEN CAP,LUXURY PACKAGE |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-30100 |
GSE20,21 |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01137 |
GSE20,21 14V 0.63W |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-30140 |
GSE2# |
1 | ||
| 84988M - BULB, VSC OFF SWITCH | ||||
| 90010-01137 |
GSE2# 14V 0.63W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30520 |
GSE2# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01111 |
GSE2# 13.5V 2W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GSE2# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GSE2# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-53040 |
GSE2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-50020 |
GSE2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30020 |
GSE2# |
1 | ||
| 89611-30021 |
GSE2# |
1 | ||

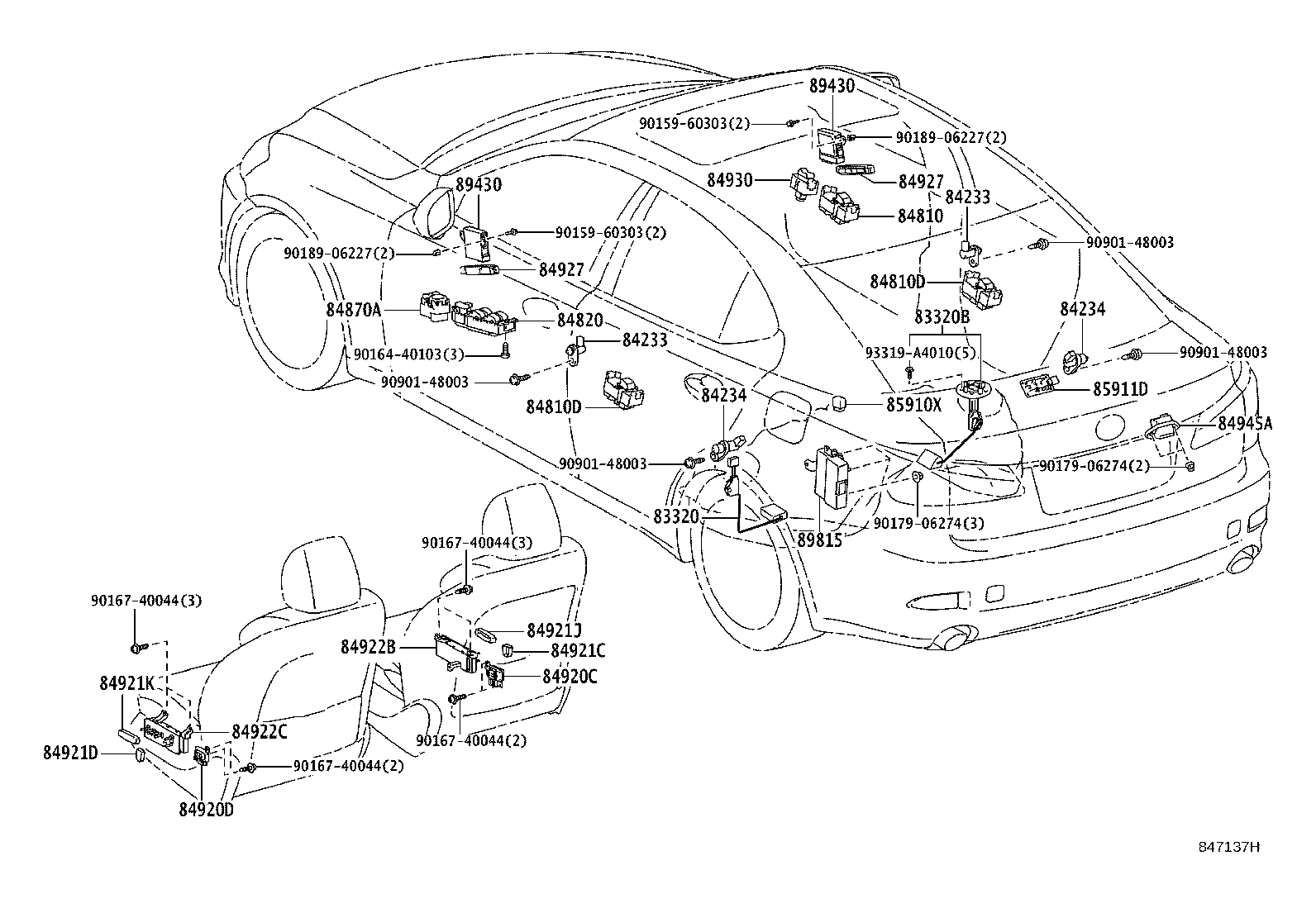

ILLUST NO. 8 OF 8(0508-0808)
DOOR,ROOF,FLOOR,SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-53010 |
GSE2# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-59515 |
GSE2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-53040 |
GSE2# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-53040 |
GSE2# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-53040 |
GSE2# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-53081 |
GSE2# |
1 | ||
| 84040-53080 |
GSE2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-48010 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84872-48010 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84872-52030 |
GSE2# |
1 | ||
| 84872-48010 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-30240C0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84920-30240A0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84920-30240B2 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30240B2 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30240A0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84920-30240C0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-30250A0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84920-30250C0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84920-30250A0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84920-30250B1 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30250B1 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30250C0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-53030A0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53030A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53030B0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030B0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030B0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53030B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030A0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53030B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030A0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53030A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53030C0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53030C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53030C0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53030C0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-53040A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53040A0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53040B0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040C0 |
GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53040A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53040B0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53040C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53040B0 |
GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040A0 |
GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53040B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040C0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53040C0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53040A0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-53010A0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53010A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53010A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53010C0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53010C0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53010B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010B0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010A0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53010B0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010B0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010A0 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53010B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010C0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53010C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53010C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-53020A0 |
GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53020A0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53020B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53020B0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53020C0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53020B0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53020C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53020C0 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53020A0 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0# |
1 | ||
| 84921-53020B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020C0 |
GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-53020B0 |
GSE20,21 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-53030 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53030 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53031 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53031 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53030 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84922-58010 |
GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84922-58010 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84070-53031 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60120 |
GSE20,21 FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84070-53041 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84922-60120 |
GSE20,21 FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53041 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84070-53041 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53040 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
1 | ||
| 84070-53040 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84070-53040 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-53010A0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,RH |
1 | ||
| 84927-53010B0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,RH |
1 | ||
| 84927-53010C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53020B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#,LH |
1 | ||
| 84927-53020A0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,LH |
1 | ||
| 84927-53010A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,RH |
1 | ||
| 84927-53010C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53010B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,RH |
1 | ||
| 84927-53010B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#,RH |
1 | ||
| 84927-53020B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,LH |
1 | ||
| 84927-53020C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53020B0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,LH |
1 | ||
| 84927-53020A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#,LH |
1 | ||
| 84927-53010C0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53020C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53020C0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53010A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#,RH |
1 | ||
| 84927-53020A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,LH |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-53010A0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,RH |
1 | ||
| 84927-53010B0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,RH |
1 | ||
| 84927-53010C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53020B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#,LH |
1 | ||
| 84927-53020A0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,LH |
1 | ||
| 84927-53010A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,RH |
1 | ||
| 84927-53010C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53010B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,RH |
1 | ||
| 84927-53010B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#,RH |
1 | ||
| 84927-53020B0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,LH |
1 | ||
| 84927-53020C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53020B0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#,LH |
1 | ||
| 84927-53020A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#,LH |
1 | ||
| 84927-53010C0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53020C0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53020C0 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53010A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#,RH |
1 | ||
| 84927-53020A0 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#,LH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48030 |
GSE2# |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-53010 |
GSE2# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
GSE2# |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-50010 |
GSE2# LUXURY PACKAGE |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-53010 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53010 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53010 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
2 | ||
| 89430-53011 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
2 | ||
| 89430-53011 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53030 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53030 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53030 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
2 | ||
| 89430-53011 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-53010 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53010 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53010 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
2 | ||
| 89430-53011 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
2 | ||
| 89430-53011 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53030 |
GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53030 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| 89430-53030 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
2 | ||
| 89430-53011 |
GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
2 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
