GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)

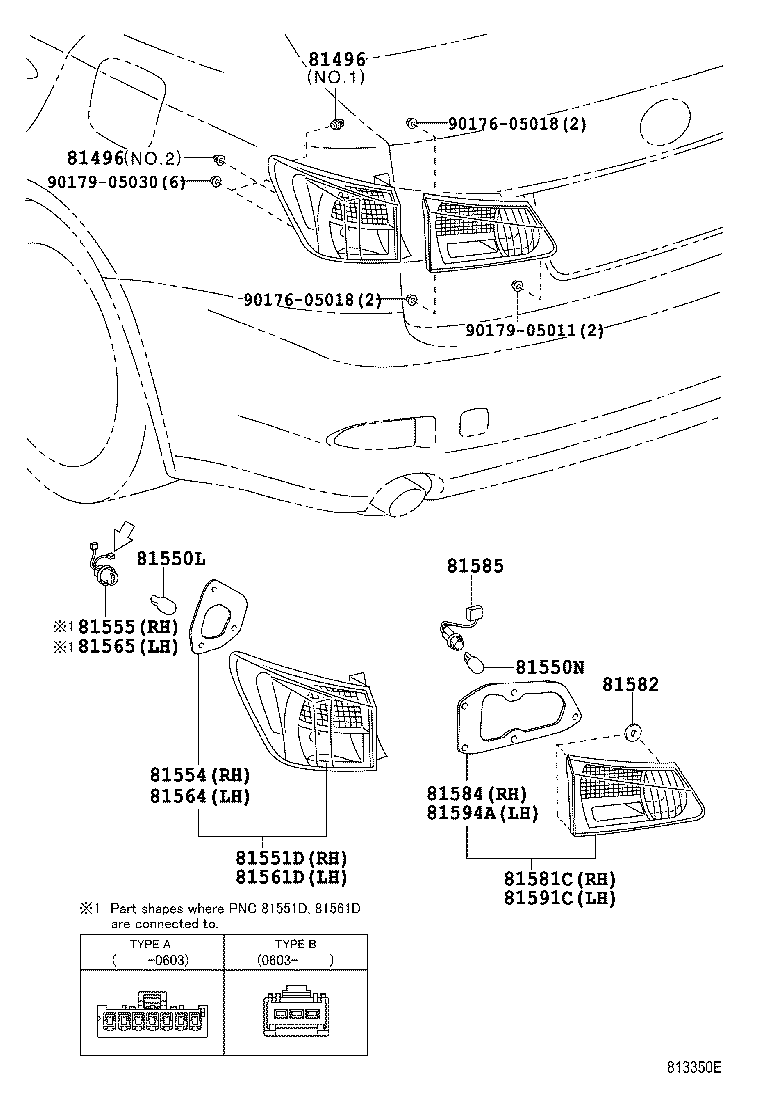

Click highlighted areas on diagram

diagram 81496 81496 81550L 81550N 81551D 81554 81555 81561D 81564 81565 81581C 81582 81584 81585 81591C 81594A 9017605018 9017605018 9017905011 9017905030
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-53010

GSE2#

NO.2

 2
81496-60010

GSE2#

NO.1

 2
81496 - GUIDE, REAR COMBINATION LAMP
81496-53010

GSE2#

NO.2

 2
81496-60010

GSE2#

NO.1

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-13043

GSE2#

 2
81550N - BULB, BACK UP LAMP
90981-11059

GSE2#

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-53170

GSE2#

PNC 81555=TYPE A

 1
81551-53171

GSE2#

PNC 81555=TYPE B

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-53160

GSE2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-53160

GSE2#

TYPE A(REFER ILLUST)

 1
81555-53161

GSE2#

TYPE B:REFER ILLUST.

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-53170

GSE2#

PNC 81565=TYPE A

 1
81561-53171

GSE2#

PNC 81565=TYPE B

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-53160

GSE2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-53161

GSE2#

TYPE B:REFER ILLUST.

 1
81555-53160

GSE2#

TYPE A(REFER ILLUST)

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-53060

GSE2#

 1
81581-53061

GSE2#

 1
81582 - GASKET, REAR LAMP
81584-22040

GSE2#

 6
81584 - PACKING, REAR LAMP RH
81584-53060

GSE2#

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-53060

GSE2#

 2
81585-53060

GSE2#

 2
81591C - LENS, REAR LAMP, LH
81591-53061

GSE2#

 1
81591-53060

GSE2#

 1
81594A - GASKET, REAR LAMP LH
81594-53060

GSE2#

 1
Common parts
90176-05018
90179-05011
90179-05030
