GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-1008)

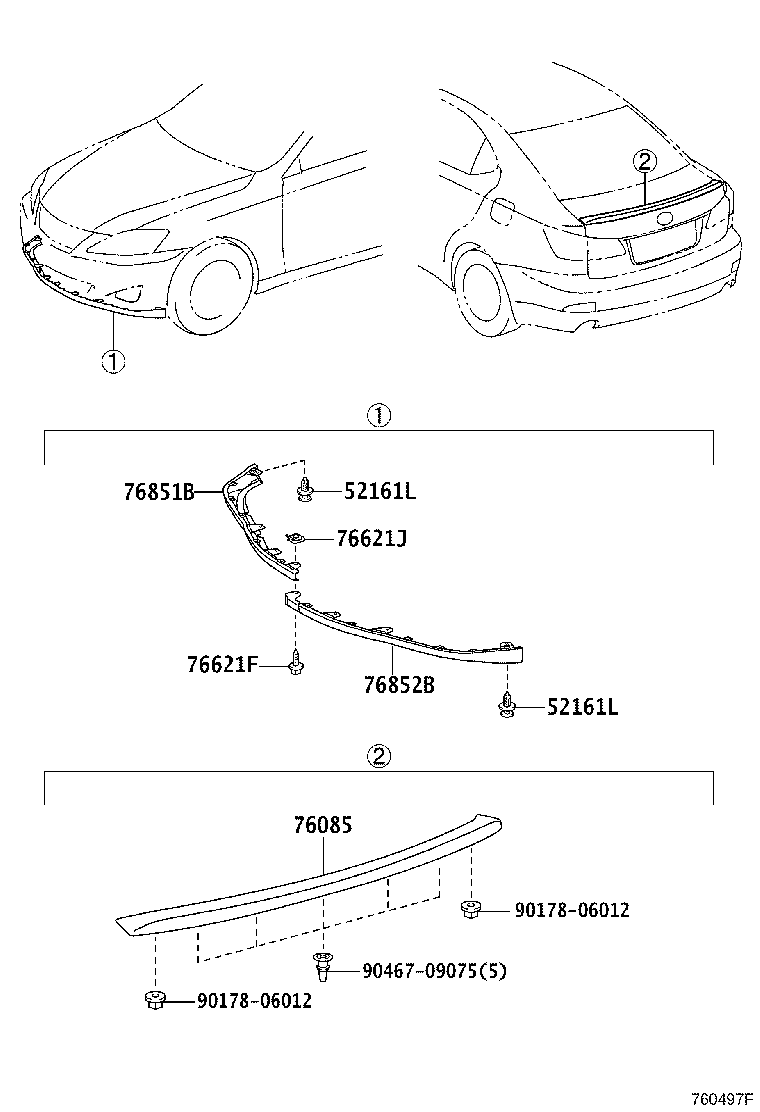

Click highlighted areas on diagram

diagram 52161L 52161L 76085 76621F 76621J 76851B 76852B 9017806012 9017806012 9046709075
Part # Description Qty Price
52161L - PIECE, FRONT SPOILER
52161-16010

GSE2#

 2
52161L - PIECE, FRONT SPOILER
52161-16010

GSE2#

 2
76621F - SCREW, NO.1
90159-60602

GSE2#

 1
90159-60477

GSE2#

 1
76621J - NUT, NO.1
90183-06019

GSE2#

 1
76851B - SPOILER, FRONT, RH
76851-53010C0

GSE2#

BLACK,202

 1
76851-53010J1

GSE2#

LT.BLUE ME.,8R6

 1
76851-53010A0

GSE2#

WHITE PEARL CS.,062

 1
76851-53010E0

GSE2#

BEIGE ME.,4P7

 1
76851-53010A1

GSE2#

BLUISH PEARL CS.,074

 1
76851-53010B1

GSE2#

SILVER M.M.,1G1

 1
76851-53010D0

GSE2#

RED MC.CS.,3R1

 1
76851-53010J0

GSE2#

DARK BLUE MC.,8P8

 1
76851-53010B0

GSE2#

DK.GRAY MC.,1G0

 1
76851-53010G0

GSE2#

MD.GREEN M.M.,6U3

 1
76851-53010A2

GSE2#

WHITE PEARL CS.,077

 1
76851-53010E1

GSE2#

BEIGE ME.,4T1

 1
76851-53010C1

GSE2#

BLACK,212

 1
76851-53010J3

GSE2#

DK.BLUE MC. CC.,8U0

 1
76852B - SPOILER, FRONT, LH
76852-53010B0

GSE2#

DK.GRAY MC.,1G0

 1
76852-53010E0

GSE2#

BEIGE ME.,4P7

 1
76852-53010D0

GSE2#

RED MC.CS.,3R1

 1
76852-53010J0

GSE2#

DARK BLUE MC.,8P8

 1
76852-53010C0

GSE2#

BLACK,202

 1
76852-53010B1

GSE2#

SILVER M.M.,1G1

 1
76852-53010G0

GSE2#

MD.GREEN M.M.,6U3

 1
76852-53010J3

GSE2#

DK.BLUE MC. CC.,8U0

 1
76852-53010C1

GSE2#

BLACK,212

 1
76852-53010A2

GSE2#

WHITE PEARL CS.,077

 1
76852-53010E1

GSE2#

BEIGE ME.,4T1

 1
76852-53010A1

GSE2#

BLUISH PEARL CS.,074

 1
76852-53010J1

GSE2#

LT.BLUE ME.,8R6

 1
76852-53010A0

GSE2#

WHITE PEARL CS.,062

 1
Common parts
90178-06012
90467-09075
