GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )MTM

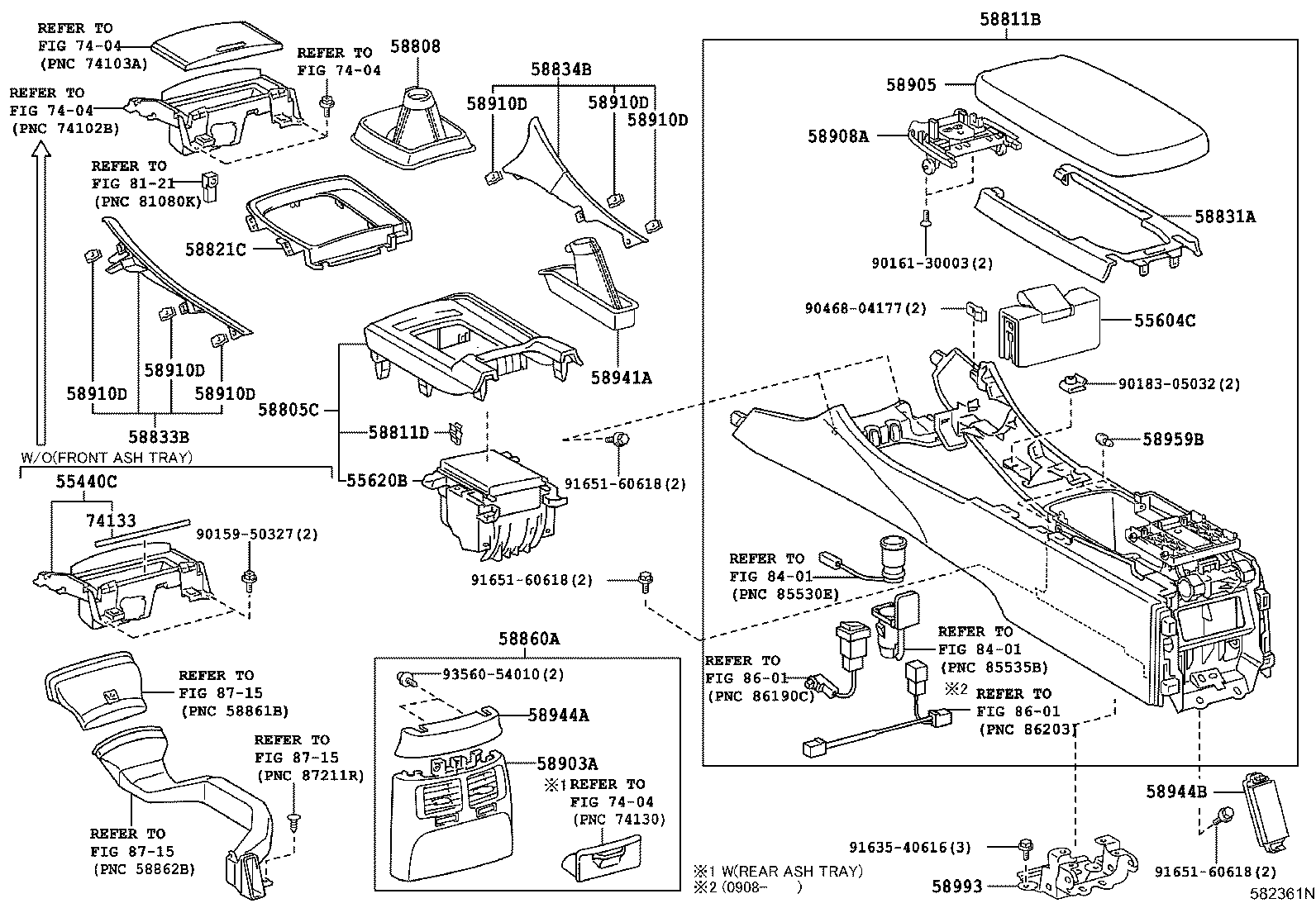

Click highlighted areas on diagram

diagram 55440C 55604C 55620B 58805C 58808 58811B 58811D 58821C 58831A 58833B 58834B 58860A 58903A 58905 58908A 58910D 58910D 58910D 58910D 58910D 58910D 58941A 58944A 58944B 58959B 58993 7404 7404 7404 7404 74133 8121 8401 8401 8601 8601 8715 8715 8715 9015950327 9016130003 9018305032 9046804177 9163540616 9165160618 9165160618 9165160618 9356054010
Part # Description Qty Price
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
55604-53070

GSE2#

 1
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-53060D0

GSE20..MTM

POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL,RED,TRIM0#,1#,2#

 1
55620-53050

GSE20..MTM

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-53040C0

GSE20..MTM

BLACK,TRIM0#,1#,2#

 1
58805-53050C0

GSE20..MTM

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM0#,1#,2#

 1
58805-53060C0

GSE20..MTM

POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#

 1
58805-53050C0

GSE20..MTM

SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-53040C0

GSE20..MTM

BLACK,TRIM0#,1#,2#

 1
58811B - BOX, CONSOLE
58810-5303023

GSE20..MTM

BLACK,TRIM2#

 1
58810-53030C7

GSE20..MTM

BLACK,TRIM1#

 1
58810-53050C8

GSE20..MTM

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#

 1
58810-53050C7

GSE20..MTM

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#

 1
58810-53031C6

GSE20..MTM

BLACK,TRIM0#

 1
58810-5303123

GSE20..MTM

BLACK,TRIM2#

 1
58810-53031C7

GSE20..MTM

BLACK,TRIM1#

 1
58810-53051C7

GSE20..MTM

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

 1
58810-53050C6

GSE20..MTM

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM0#

 1
58810-53051C6

GSE20..MTM

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM0#

 1
58810-53050C6

GSE20..MTM

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM0#

 1
58810-53050C7

GSE20..MTM

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

 1
58810-53051C8

GSE20..MTM

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#

 1
58810-53050C8

GSE20..MTM

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#

 1
58810-53051C7

GSE20..MTM

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#

 1
58810-53030C6

GSE20..MTM

BLACK,TRIM0#

 1
58810-53051C6

GSE20..MTM

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM0#

 1
58810-53051C8

GSE20..MTM

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

GSE20..MTM

 2
58821C - PANEL, CONSOLE, UPPER
58821-53030

GSE20..MTM

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-53080

GSE20..MTM

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-53070

GSE20..MTM

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-53070B2

GSE2#

FROSTY GRAY,TRIM1#

 1
58905-53090A2

GSE20,21

FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#

 1
58905-53070B3

GSE2#

DK.GRAY,TRIM2#

 1
58905-53090B2

GSE2#

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#

 1
58905-53090C1

GSE2#

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#

 1
58905-53090A2

GSE2#

FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#

 1
58905-53090C1

GSE20,21

FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#

 1
58905-53070A2

GSE2#

IVORY,TRIM0#

 1
58905-53090B2

GSE20,21

FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-53040C3

GSE2#

BLACK,TRIM2#

 1
58908-53040A3

GSE2#

IVORY,TRIM0#

 1
58908-53041B4

GSE2#

FROSTY GRAY,TRIM1#

 1
58908-53040B4

GSE2#

FROSTY GRAY,TRIM1#

 1
58908-53041A3

GSE2#

IVORY,TRIM0#

 1
58908-53041C3

GSE2#

BLACK,TRIM2#

 1
58910D - CLIP(FOR CONSOLE BOX)
90468-05135

GSE20..MTM

 6
58910D - CLIP(FOR CONSOLE BOX)
90468-05135

GSE20..MTM

 6
58910D - CLIP(FOR CONSOLE BOX)
90468-05135

GSE20..MTM

 6
58910D - CLIP(FOR CONSOLE BOX)
90468-05135

GSE20..MTM

 6
58910D - CLIP(FOR CONSOLE BOX)
90468-05135

GSE20..MTM

 6
58910D - CLIP(FOR CONSOLE BOX)
90468-05135

GSE20..MTM

 6
58941A - COVER, PARKING BRAKE HOLE
58809-53060C0

GSE20..MTM

BLACK,TRIM0#,1#,2#

 1
58944A - COVER, CONSOLE, REAR
58944-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58944B - COVER, CONSOLE, REAR
58944-53020

GSE20..MTM

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

GSE2#

 2
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-53030

GSE20..MTM

 1
Common parts
90159-50327
90161-30003
90183-05032
90468-04177
91635-40616
91651-60618
93560-54010
Linked diagrams
7404
8121
8401
8601
8715
