GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0508-0808) ; (0808- )GSE25,26 ; (0908- )GSE20,21

Click highlighted areas on diagram

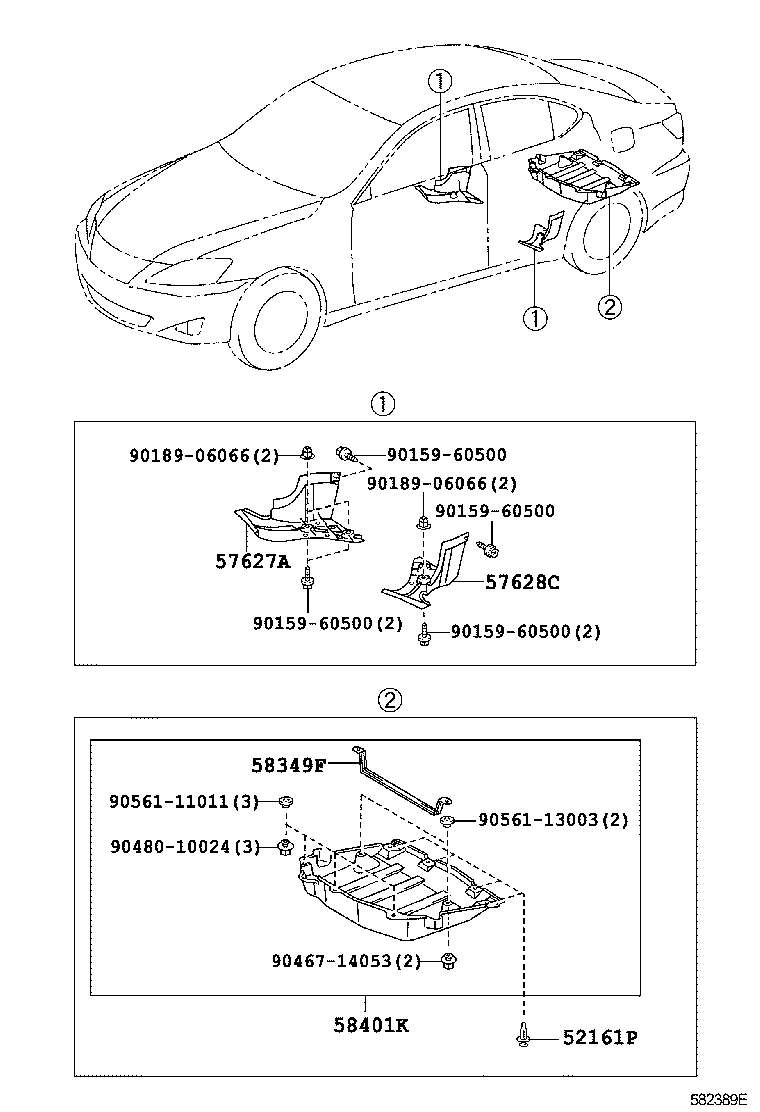

FLOOR UNDER COVER

diagram 52161P 57627A 57628C 58349F 58401K 9015960500 9015960500 9015960500 9015960500 9018906066 9018906066 9046714053 9048010024 9056111011 9056113003
Part # Description Qty Price
52161P - PIECE, REAR BUMPER
52161-16010

GSE2#

 4
57627A - COVER, REAR FLOOR SIDE MEMBER, RH
57627-30040

GSE2#

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-30040

GSE2#

 1
58349F - RETAINER, REAR FLOOR SUPPORT STAY
58349-53010

GSE2#

 1
58401K - BOARD SUB-ASSY, REAR FLOOR, NO.1
58401-53020

GSE2#

 1
Common parts
90159-60500
90189-06066
90467-14053
90480-10024
90561-11011
90561-13003
