GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)

Click highlighted areas on diagram

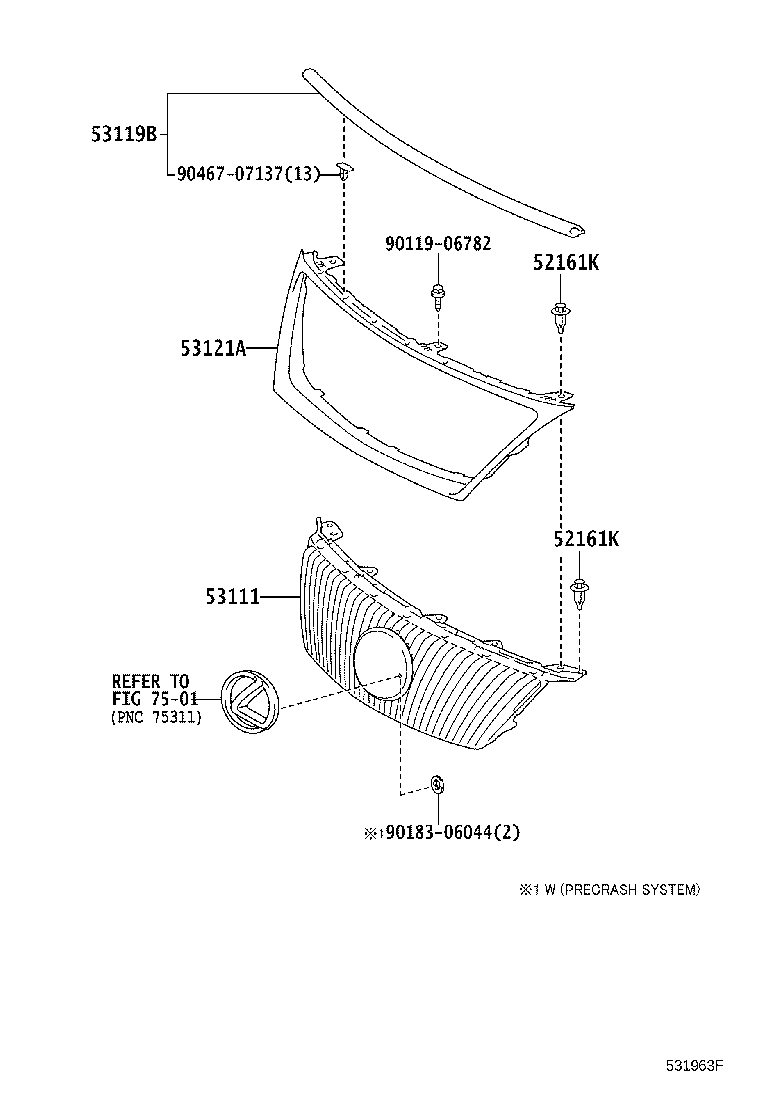

diagram 52161K 52161K 53111 53119B 53121A 7501 9011906782 9018306044 9046707137
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

GSE2#

 4
52161K - PIECE, FRONT BUMPER
52161-16010

GSE2#

 4
53111 - GRILLE, RADIATOR
53111-53120

GSE2#

NO PAINT REQ.

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-53010

GSE2#

 1
53121A - MOULDING, RADIATOR GRILLE
52711-53010

GSE2#

 1
Common parts
90119-06782
90183-06044
90467-07137
Linked diagrams
7501
