GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

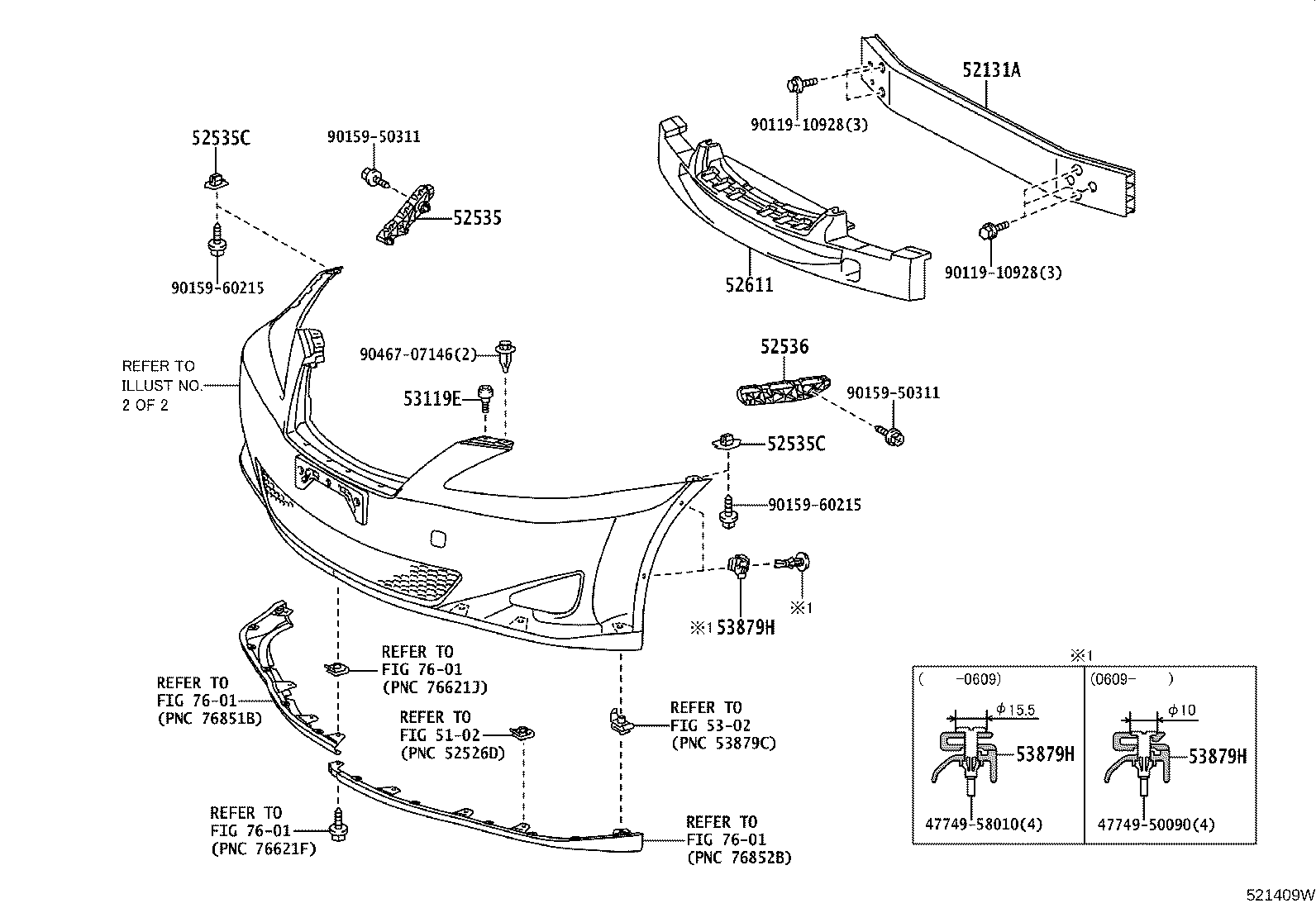

ILLUST NO. 1 OF 2(0508-0808)

Click highlighted areas on diagram

diagram 4774950090 4774958010 5102 52131A 52535 52535C 52535C 52536 52611 5302 53119E 53879H 53879H 53879H 7601 7601 7601 7601 9011910928 9011910928 9015950311 9015950311 9015960215 9015960215 9046707146
Part # Description Qty Price
52131A - REINFORCEMENT, FRONT BUMPER
52131-53060

GSE2#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-53011

GSE2#

 1
52535-53010

GSE2#

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GSE2#

 2
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GSE2#

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-53010

GSE2#

 1
52536-53011

GSE2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-53060

GSE2#

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-53020

GSE2#

 2
53119-53021

GSE2#

 2
53879H - RETAINER, FRONT FENDER LINER
53879-58010

GSE2#

 4
53879-50020

GSE2#

 4
53879H - RETAINER, FRONT FENDER LINER
53879-58010

GSE2#

 4
53879-50020

GSE2#

 4
53879H - RETAINER, FRONT FENDER LINER
53879-58010

GSE2#

 4
53879-50020

GSE2#

 4
Common parts
47749-50090
47749-58010
90119-10928
90159-50311
90159-60215
90467-07146
Linked diagrams
5102
5302
7601

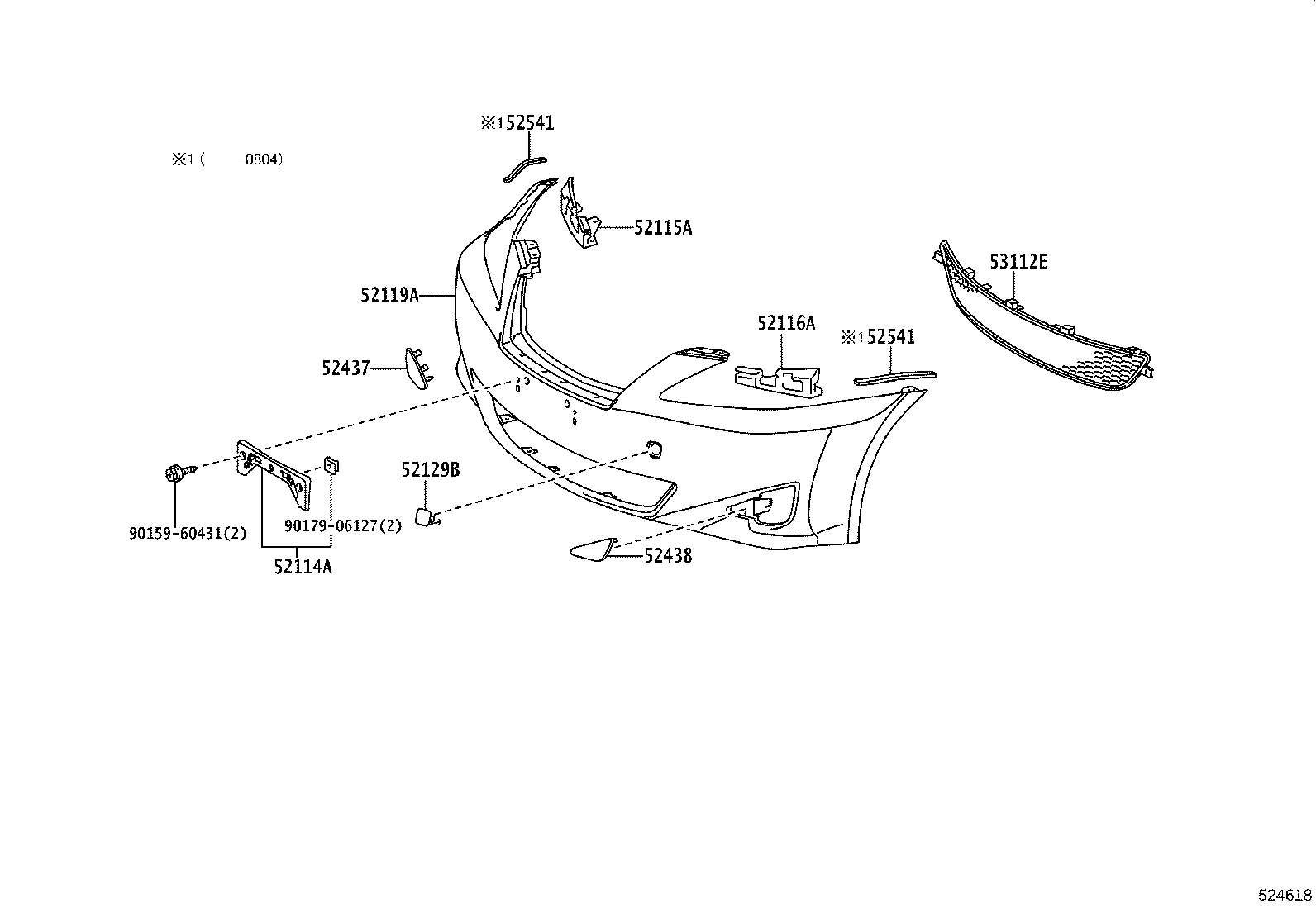

ILLUST NO. 2 OF 2(0508-0808)

Click highlighted areas on diagram

diagram 52114A 52115A 52116A 52119A 52129B 52437 52438 52541 52541 53112E 9015960431 9017906127
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-53080

GSE2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-53020

GSE2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-53020

GSE2#

 1
52119A - COVER, FRONT BUMPER
52119-53917

GSE2#

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

 1
52119-53925

GSE2#

PAINT REQ.

 1
52119-53919

GSE2#

PAINT REQ.,HEADLAMP-DISCHARGE WITH/AUTO LEVELING&HEAD LAMP CLEANER-WITH&CLEARANCE& BACK SONAR-WITH

 1
52119-53919

GSE2#

PAINT REQ.,HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH

 1
52119-53918

GSE2#

PAINT REQ.,HEAD LAMP CLEANER-WITH

 1
52119-53918

GSE2#

PAINT REQ.,HEADLAMP-DISCHARGE WITH/AUTO LEVELING&HEAD LAMP CLEANER-WITH

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-53902

GSE2#

 1
52437 - COVER, FRONT BUMPER GUARD, RH
52437-53010

GSE2#

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-53010

GSE2#

 1
52541 - PROTECTOR, FRONT BUMPER
52541-53010

GSE2#

 2
52541 - PROTECTOR, FRONT BUMPER
52541-53010

GSE2#

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-53010

GSE2#

NO PAINT REQ.

 1
Common parts
90159-60431
90179-06127
