GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
Production
Sep 2005
-
Aug 2008
Engine
4GRFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0508-0808)GSE20,21

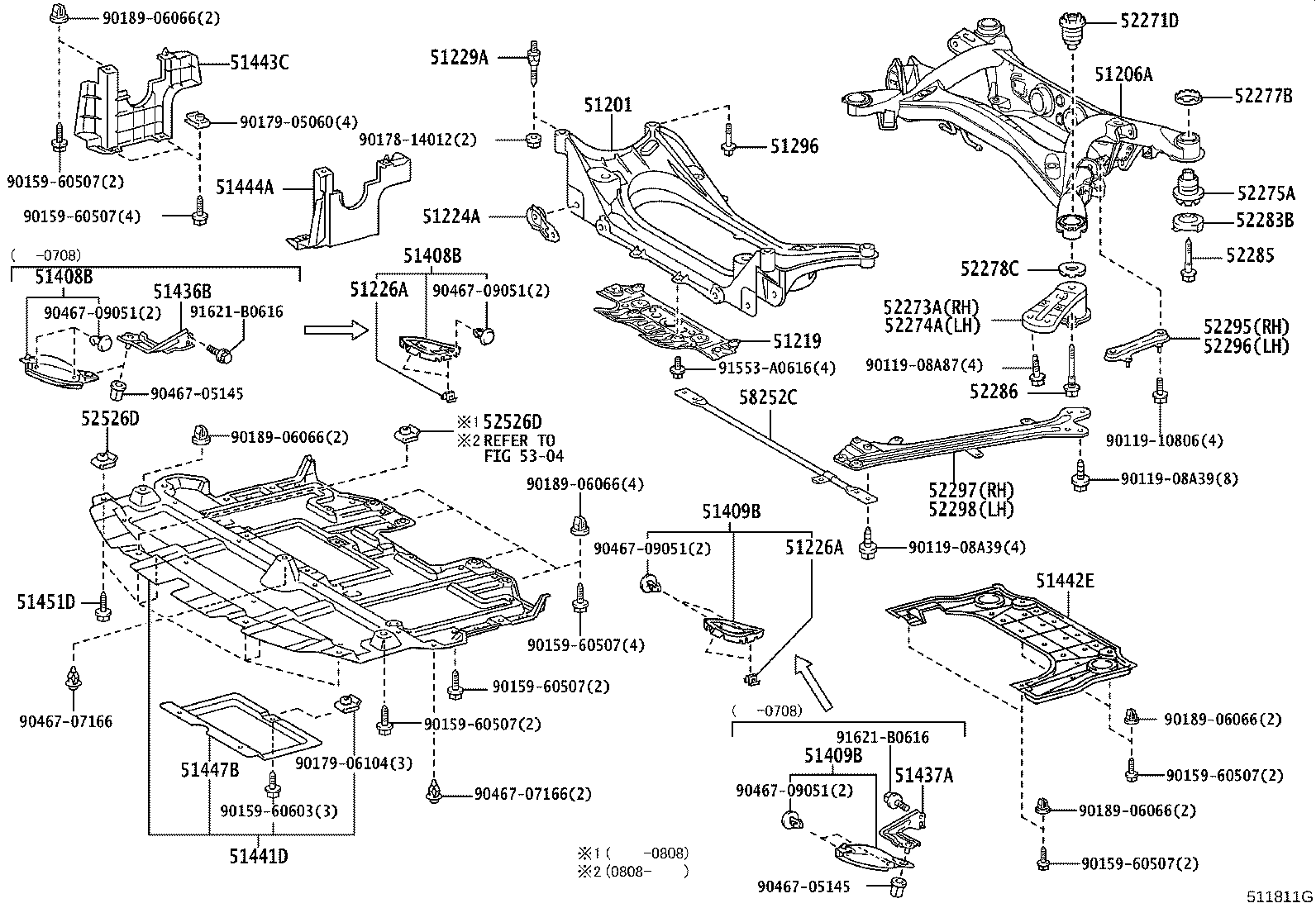

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-30130 |
GSE20,21 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30080 |
GSE20,25 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-30031 |
GSE20,21 |
1 | ||
| 51224A - PLATE, FRONT SUSPENSION MENBER BRACE | ||||
| 51224-30030 |
GSE20,21 |
2 | ||
| 51226A - BRACKET, FRONT SUSPENSION MEMBER, LH | ||||
| 51226-30020 |
GSE20,21 |
2 | ||
| 51226A - BRACKET, FRONT SUSPENSION MEMBER, LH | ||||
| 51226-30020 |
GSE20,21 |
2 | ||
| 51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 90951-01004 |
GSE20,21 |
2 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 90119-16013 |
GSE20,21 |
2 | ||
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-30060 |
GSE20,21 |
1 | ||
| 51408-30050 |
GSE20,21 |
1 | ||
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-30060 |
GSE20,21 |
1 | ||
| 51408-30050 |
GSE20,21 |
1 | ||
| 51409B - COVER SUB-ASSY, ENGINE UNDER, LH | ||||
| 51409-30050 |
GSE20,21 |
1 | ||
| 51409-30060 |
GSE20,21 |
1 | ||
| 51409B - COVER SUB-ASSY, ENGINE UNDER, LH | ||||
| 51409-30050 |
GSE20,21 |
1 | ||
| 51409-30060 |
GSE20,21 |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-30030 |
GSE20,21 |
1 | ||
| 51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH | ||||
| 51437-30010 |
GSE20,21 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-53060 |
GSE20,21 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-30180 |
GSE20,21 |
1 | ||
| 51442-30130 |
GSE20,21 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-30140 |
GSE20,21 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-30170 |
GSE20,21 |
1 | ||
| 51447B - PROTECTOR, OIL PAN | ||||
| 51447-53010 |
GSE20,21 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
GSE2# |
6 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-53030 |
GSE2# |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-53020 |
GSE2# |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-53020 |
GSE2# |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-53030 |
GSE2# |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-53020 |
GSE2# |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-53020 |
GSE2# |
2 | ||
| 52283B - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-30060 |
GSE2# |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
GSE2# |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-53020 |
GSE2# |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30030 |
GSE2# |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-30030 |
GSE2# |
1 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-53030 |
GSE2# |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-53030 |
GSE2# |
1 | ||
| 52526D - RETAINER, FRONT BUMPER, LOWER | ||||
| 52526-53020 |
GSE2# |
4 | ||
| 52526D - RETAINER, FRONT BUMPER, LOWER | ||||
| 52526-53020 |
GSE2# |
4 | ||
| 58252C - BRACE, FLOOR PANEL, REAR NO.1 | ||||
| 58252-53010 |
GSE2# |
1 | ||
| Common parts | ||||
| 90119-08A39 | ||||
| 90119-08A87 | ||||
| 90119-10806 | ||||
| 90159-60507 | ||||
| 90159-60603 | ||||
| 90178-14012 | ||||
| 90179-05060 | ||||
| 90179-06104 | ||||
| 90189-06066 | ||||
| 90467-05145 | ||||
| 90467-07166 | ||||
| 90467-09051 | ||||
| 91553-A0616 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 5304 | ||||
