GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
(0508-0808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-30090 |
GSE2# |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-30090 |
GSE2# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-53150 |
GSE20,21 SPORT PACKAGE&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53200 |
GSE20 |
1 | ||
| 48231-53150 |
GSE20,21 X PACKAGE&TIRE & DISC WHEEL-WITHOUT |
1 | ||
| 48231-53180 |
GSE20 TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53181 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53180 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48231-53151 |
GSE20,21 SPORT PACKAGE&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53201 |
GSE20 |
1 | ||
| 48231-53181 |
GSE20 TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53151 |
GSE20,21 X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48231-53181 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48231-53180 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53150 |
GSE20,21 X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-53150 |
GSE20,21 X PACKAGE&TIRE & DISC WHEEL-WITHOUT |
1 | ||
| 48231-53150 |
GSE20,21 SPORT PACKAGE&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53151 |
GSE20,21 X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48231-53180 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53151 |
GSE20,21 SPORT PACKAGE&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53150 |
GSE20,21 X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48231-53200 |
GSE20 |
1 | ||
| 48231-53181 |
GSE20 TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53180 |
GSE20 TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53181 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48231-53180 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48231-53181 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48231-53201 |
GSE20 |
1 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48158-30020 |
GSE2# |
2 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-30070 |
GSE2# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-30070 |
GSE2# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-30110 |
GSE20 TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48341-53010 |
GSE20 |
1 | ||
| 48341-30110 |
GSE20 X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48341-30110 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48341-30110 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48341-30110 |
GSE20 X PACKAGE&TIRE & DISC WHEEL-WITHOUT |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-30110 |
GSE20 X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48341-53010 |
GSE20 |
1 | ||
| 48341-30110 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48341-30110 |
GSE20 X PACKAGE&TIRE & DISC WHEEL-WITHOUT |
1 | ||
| 48341-30110 |
GSE20 TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48341-30110 |
GSE20 TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-30020 |
GSE2# |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-30040 |
GSE2# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80288 |
GSE20 MARK 48530-53120,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80286 |
GSE20 MARK 48530-53130 |
1 | ||
| 48530-80288 |
GSE20 MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80288 |
GSE20 MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48530-80412 |
GSE20 MARK 48530-53131 |
1 | ||
| 48530-80289 |
GSE20,21 MARK 48530-53100,X PACKAGE&TIRE & DISC WHEEL-WITHOUT |
1 | ||
| 48530-80413 |
GSE20 MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48530-80413 |
GSE20 MARK 48530-53121,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80413 |
GSE20 MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80289 |
GSE20,21 MARK 48530-53100,SPORT PACKAGE&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80289 |
GSE20,21 MARK 48530-53100,X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
GSE2# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01089 |
GSE2# |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01090 |
GSE2# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80288 |
GSE20 MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80288 |
GSE20 MARK 48530-53120,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80289 |
GSE20,21 MARK 48530-53100,SPORT PACKAGE&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80289 |
GSE20,21 MARK 48530-53100,X PACKAGE&TIRE & DISC WHEEL-WITHOUT |
1 | ||
| 48530-80288 |
GSE20 MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48530-80289 |
GSE20,21 MARK 48530-53100,X PACKAGE&TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL) |
1 | ||
| 48530-80413 |
GSE20 MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI |
1 | ||
| 48530-80412 |
GSE20 MARK 48530-53131 |
1 | ||
| 48530-80413 |
GSE20 MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI |
1 | ||
| 48530-80286 |
GSE20 MARK 48530-53130 |
1 | ||
| 48530-80413 |
GSE20 MARK 48530-53121,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-53020 |
GSE2# |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-53020 |
GSE2# |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-53020 |
GSE2# |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-53020 |
GSE2# |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-30090 |
GSE2# |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-30110 |
GSE2# |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-30150 |
GSE2# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12127 |
GSE2# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-30150 |
GSE2# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-12127 |
GSE2# |
1 | ||
| 48770J - ARM ASSY, UPPER CONTROL, REAR NO.1 | ||||
| 48770-30080 |
GSE2# |
2 | ||
| 48790D - ARM ASSY, UPPER CONTROL, REAR NO.2 | ||||
| 48790-53030 |
GSE2# |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-53030 |
GSE20,21 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30210 |
GSE20,21 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48832-30060 |
GSE2# |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GSE2# |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-30090 |
GSE2# |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-30090 |
GSE2# |
1 | ||
| Common parts | ||||
| 90110-12009 | ||||
| 90170-12030 | ||||
| 90177-12001 | ||||
| 90178-10014 | ||||
| 90179-14044 | ||||
| 90179-14068 | ||||
| 91551-G0875 | ||||
| 91556-11475 | ||||
| 91556-11485 | ||||
| 91672-G1265 | ||||
| 91672-G1485 | ||||
| 91674-80814 | ||||
| 91674-80820 | ||||
| 94151-20801 | ||||
| 94151-21200 | ||||
| 94151-21401 | ||||
| 94622-51400 | ||||

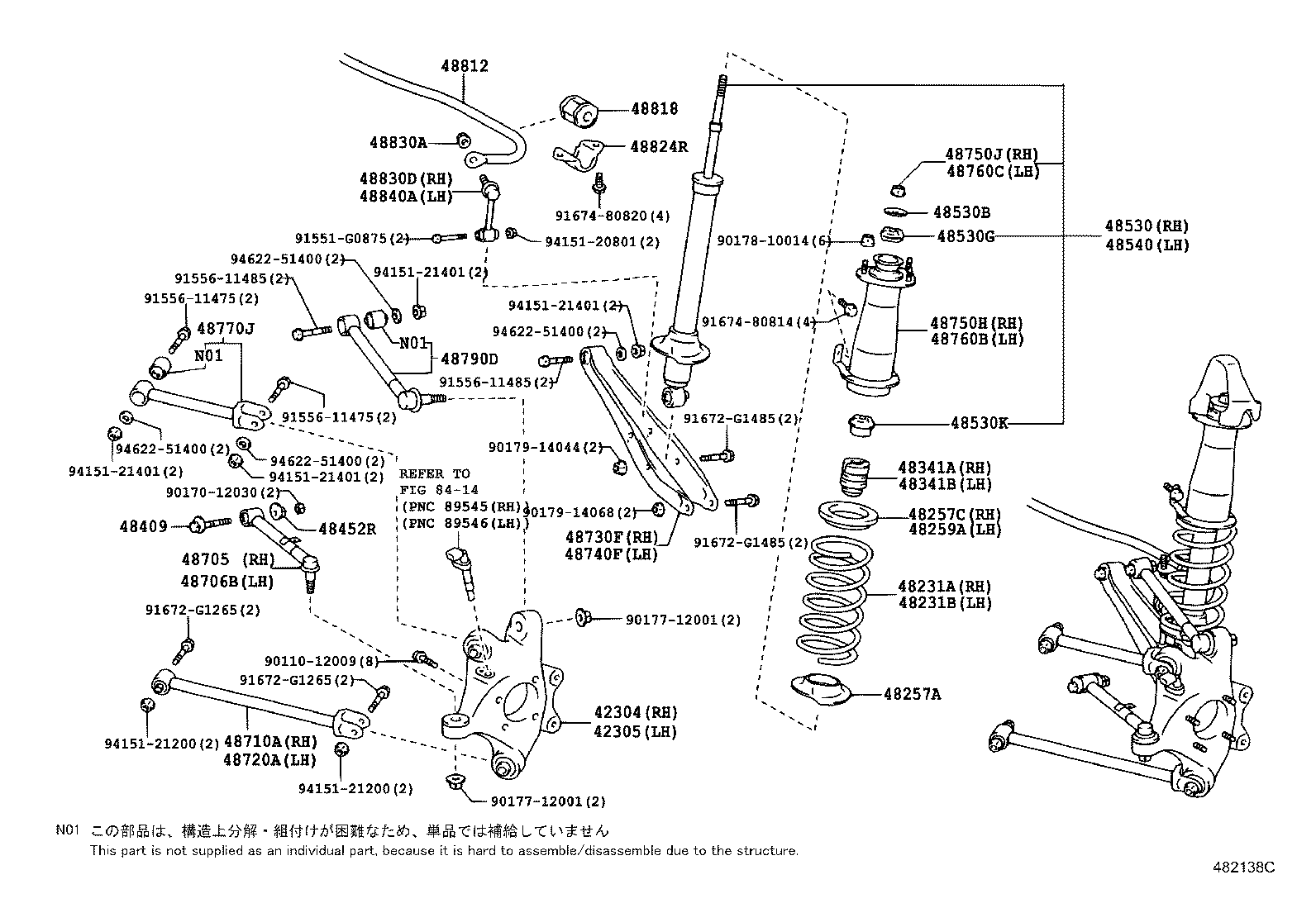

| Linked diagrams | ||||
| 8414 | ||||
