GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0508-0808)

Click highlighted areas on diagram

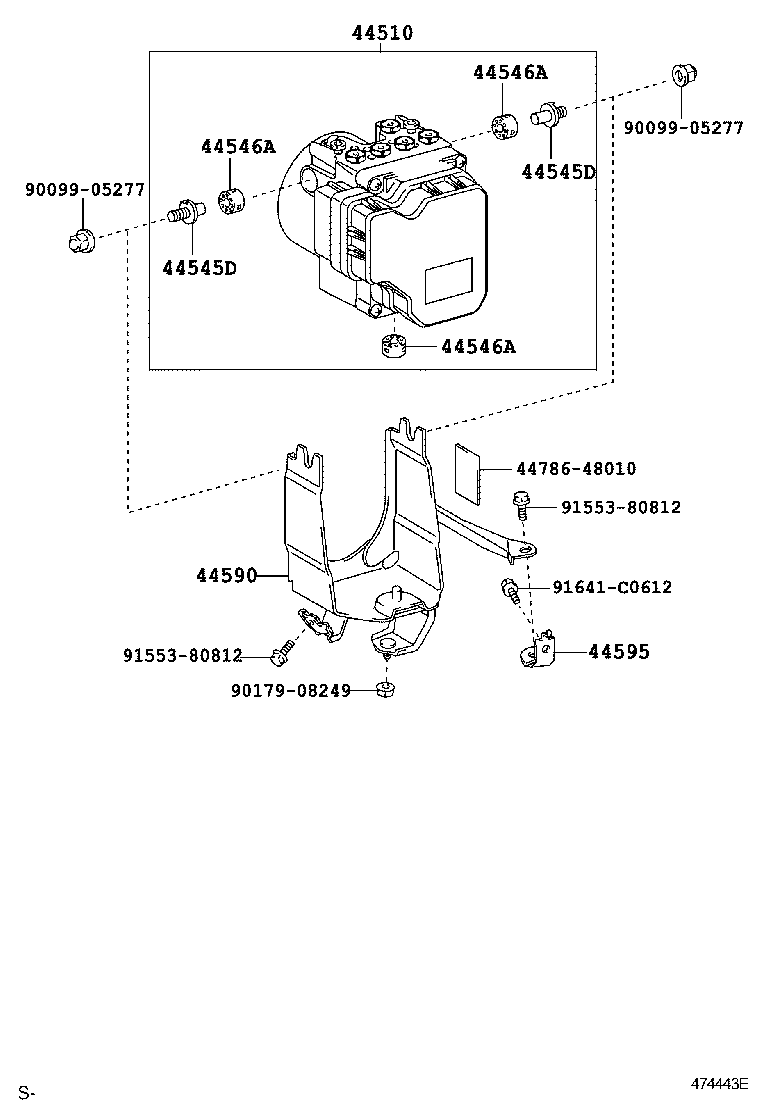

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 44595 4478648010 9009905277 9009905277 9017908249 9155380812 9155380812 91641C0612
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-53061

GSE20

 1
44050-53080

GSE20

TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI

 1
44050-53060

GSE20

 1
44050-53081

GSE20

TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI

 1
44050-53140

GSE20

 1
44050-53160

GSE20

TIRE & DISC WHEEL-X PACKAGE(18INCH ALUMINIUM WHEEL)

 1
44050-53160

GSE20

TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GSE2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GSE2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSE2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSE2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSE2#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-53080

GSE2#

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-53010

GSE2#

 1
Common parts
44786-48010
90099-05277
90179-08249
91553-80812
91641-C0612

ILLUST NO. 1 OF 2(0508-0808)

Click highlighted areas on diagram

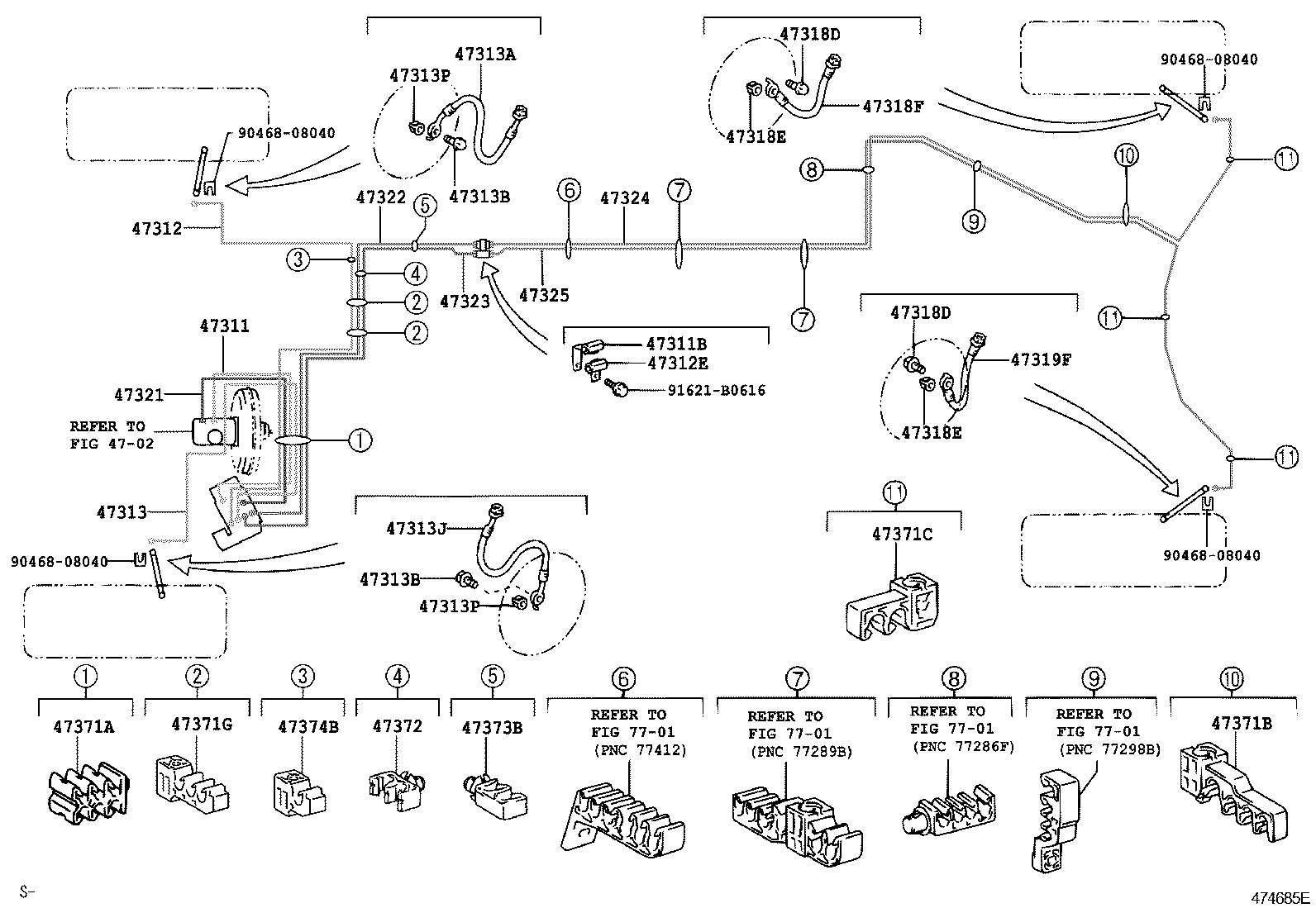

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47371A 47371B 47371C 47371G 47372 47373B 47374B 7701 7701 7701 7701 9046808040 9046808040 9046808040 9046808040 91621B0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-53130

GSE2#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10250

GSE2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-53140

GSE20,21

 1
47312-53140

GSE20,21

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10278

GSE2#

 1
90412-10144

GSE2#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-53140

GSE20,21

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F72

GSE20

 1
90947-02E51

GSE20

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSE2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSE2#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02E51

GSE20

 1
90947-02F72

GSE20

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GSE2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GSE2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GSE2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GSE2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GSE2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GSE2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E50

GSE2#

 1
90947-02F71

GSE2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E50

GSE2#

 1
90947-02F71

GSE2#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-53110

GSE2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-53140

GSE2#

 1
47322-53140

GSE2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-53120

GSE2#

 1
47323-53120

GSE2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-53070

GSE2#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-53060

GSE2#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01C51

GSE2#

 1
90949-01C51

GSE2#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D09

GSE2#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D11

GSE2#

 3
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01886

GSE2#

 2
90949-01D08

GSE2#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D12

GSE2#

 1
90949-01D12

GSE2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D13

GSE2#

 1
90949-01D13

GSE2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D10

GSE2#

 1
90949-01D20

GSE2#

 1
Common parts
90468-08040
91621-B0616
