GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

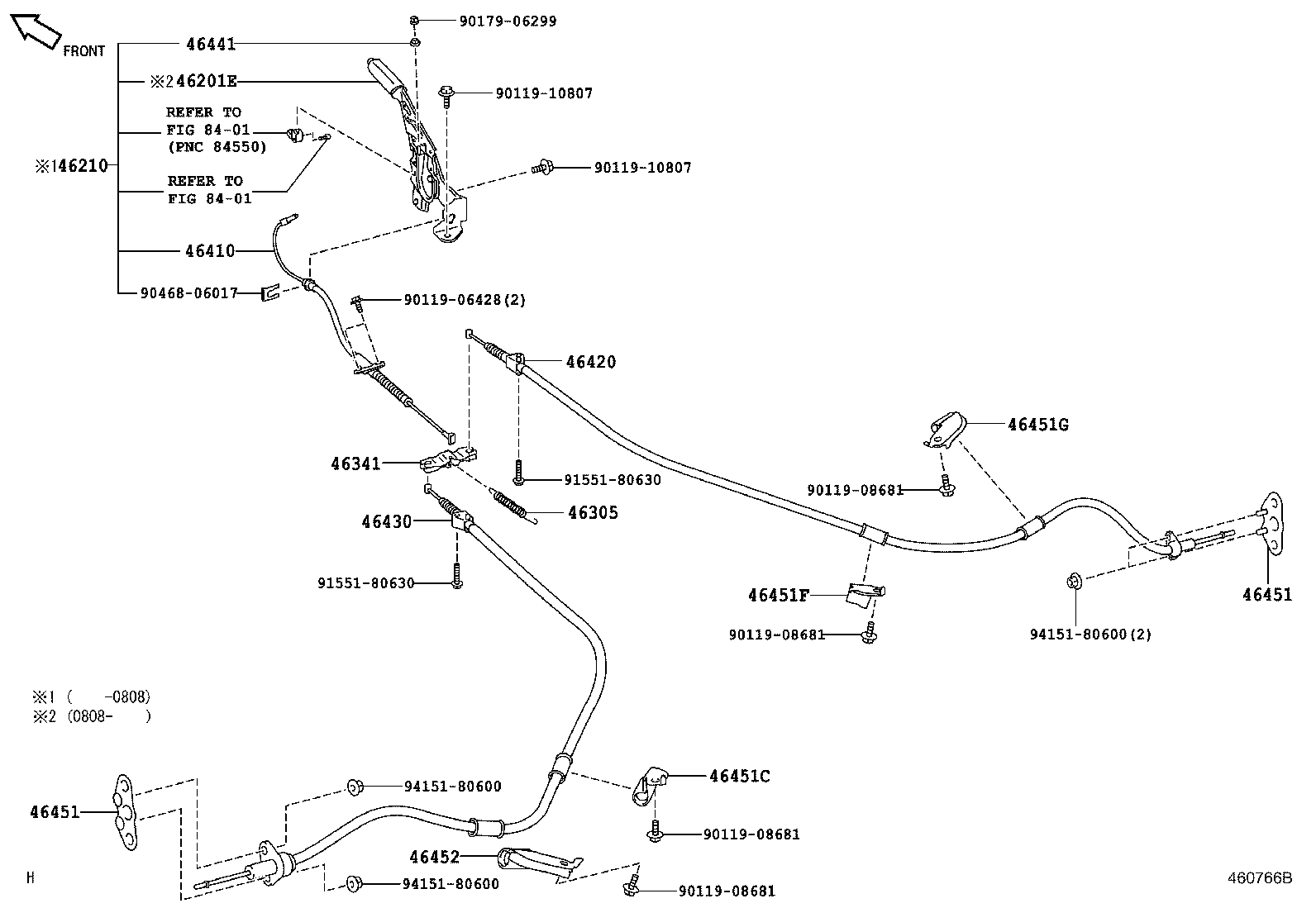

ILLUST NO. 1 OF 2(0509- )MTM

Click highlighted areas on diagram

diagram 46201E 46210 46305 46341 46410 46420 46430 46441 46451 46451 46451C 46451F 46451G 46452 8401 8401 9011906428 9011908681 9011908681 9011908681 9011908681 9011910807 9011910807 9017906299 9046806017 9155180630 9155180630 9415180600 9415180600 9415180600
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-53060C0

GSE20..MTM

BLACK,TRIM0#,1#,2#

 1
46305 - SPRING, PARKING BRAKE RETURN W/DAMPER
46305-53010

GSE2#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-22060

GSE2#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-53060

GSE20..MTM

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-53020

GSE2#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46420-53020

GSE2#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

GSE2#

 1
46451 - BRACKET, CABLE SUPPORT
46451-50050

GSE2#

 2
46451 - BRACKET, CABLE SUPPORT
46451-50050

GSE2#

 2
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-30180

GSE2#

 1
46451F - BRACKET, CABLE SUPPORT
46451-22100

GSE20,25

 1
46451G - BRACKET, CABLE SUPPORT
46451-30190

GSE2#

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-30200

GSE2#

 1
Common parts
90119-06428
90119-08681
90119-10807
90179-06299
90468-06017
91551-80630
94151-80600
Linked diagrams
8401
