GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )MTM

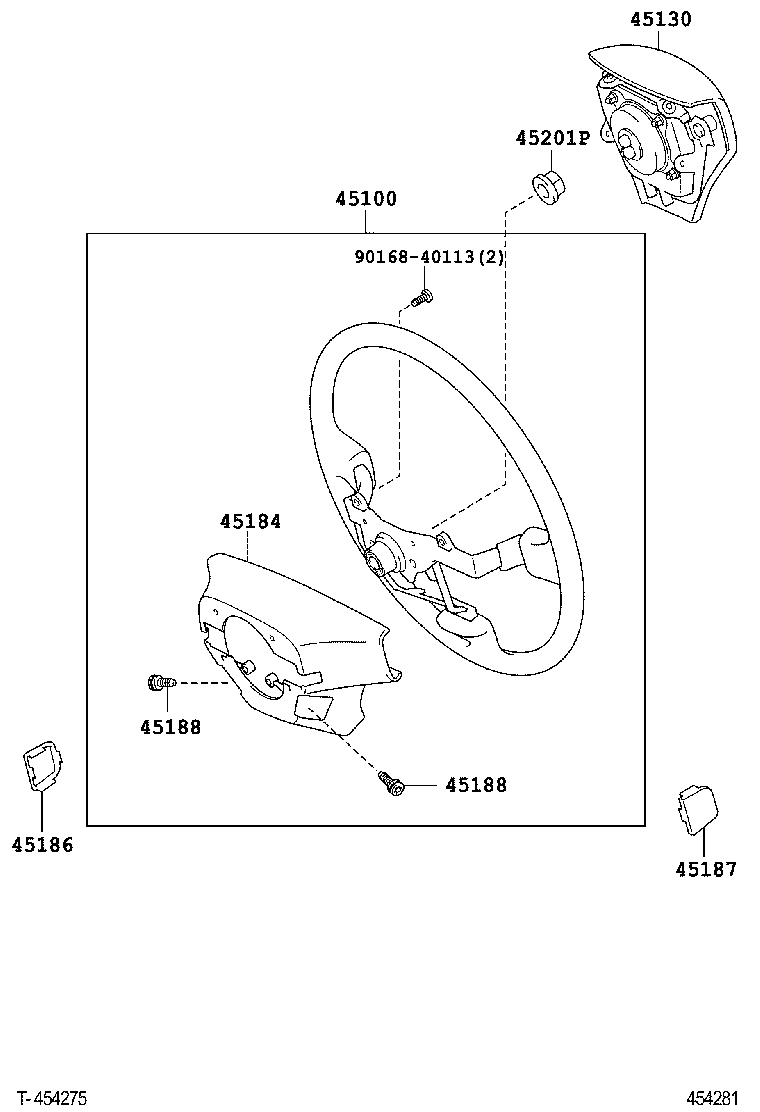

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45184 45186 45187 45188 45188 45201P 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-53170C0

GSE20..MTM

3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#

 1
45130 - BUTTON ASSY, HORN
45130-53080C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-53010C0

GSE20..MTM

BLACK,TRIM0#,1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

GSE2#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

GSE2#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

GSE2#

 1
Common parts
90168-40113
