GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
Production
Sep 2005
-
Aug 2008
Engine
4GRFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )MTM

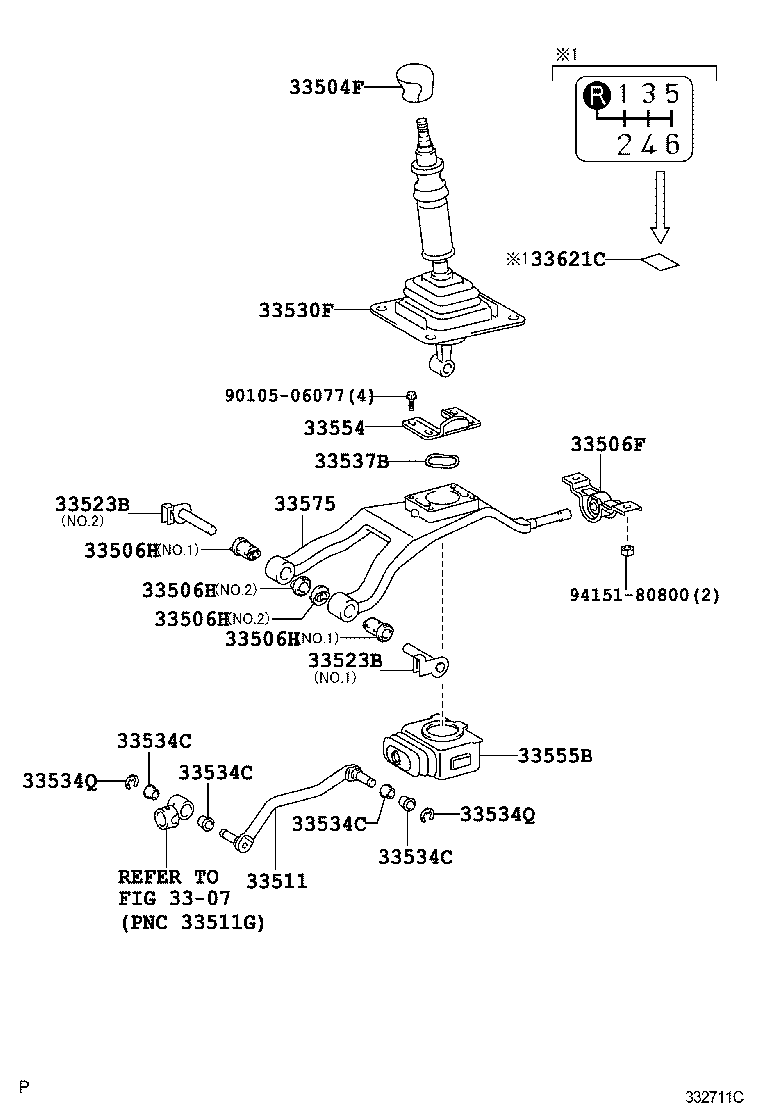

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-53070C0 |
GSE20..MTM BLACK,TRIM0#,1#,2# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-53030 |
GSE20..MTM |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53020 |
GSE20..MTM NO.1 |
2 | ||
| 33546-53040 |
GSE20..MTM NO.2 |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53020 |
GSE20..MTM NO.1 |
2 | ||
| 33546-53040 |
GSE20..MTM NO.2 |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53020 |
GSE20..MTM NO.1 |
2 | ||
| 33546-53040 |
GSE20..MTM NO.2 |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53020 |
GSE20..MTM NO.1 |
2 | ||
| 33546-53040 |
GSE20..MTM NO.2 |
2 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-53040 |
GSE20..MTM |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-53040 |
GSE20..MTM NO.2 |
1 | ||
| 33523-53030 |
GSE20..MTM NO.1 |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-53040 |
GSE20..MTM NO.2 |
1 | ||
| 33523-53030 |
GSE20..MTM NO.1 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-53050 |
GSE20..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-10042 |
GSE20..MTM |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-10042 |
GSE20..MTM |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-10042 |
GSE20..MTM |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-10042 |
GSE20..MTM |
4 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00800 |
GSE20..MTM |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00800 |
GSE20..MTM |
2 | ||
| 33537B - WASHER, WAVE (FOR TRANSMISSION SHIFT LEVER) | ||||
| 90206-29001 |
GSE20..MTM |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-53050 |
GSE20..MTM |
1 | ||
| 33555B - BOOT, SHIFT & SELECT LEVER | ||||
| 33555-53070 |
GSE20..MTM |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-53040 |
GSE20..MTM |
1 | ||
| 33621C - LABEL, CONTROL LEVER INFORMATION | ||||
| 33621-53030 |
GSE20..MTM |
1 | ||
| Common parts | ||||
| 90105-06077 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3307 | ||||
