GSE20L-AEFLHA (2005)

Toyota Lexus Is250/350

Production Sep 2005 - Aug 2008
Engine 4GRFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )MTM

Click highlighted areas on diagram

RA62

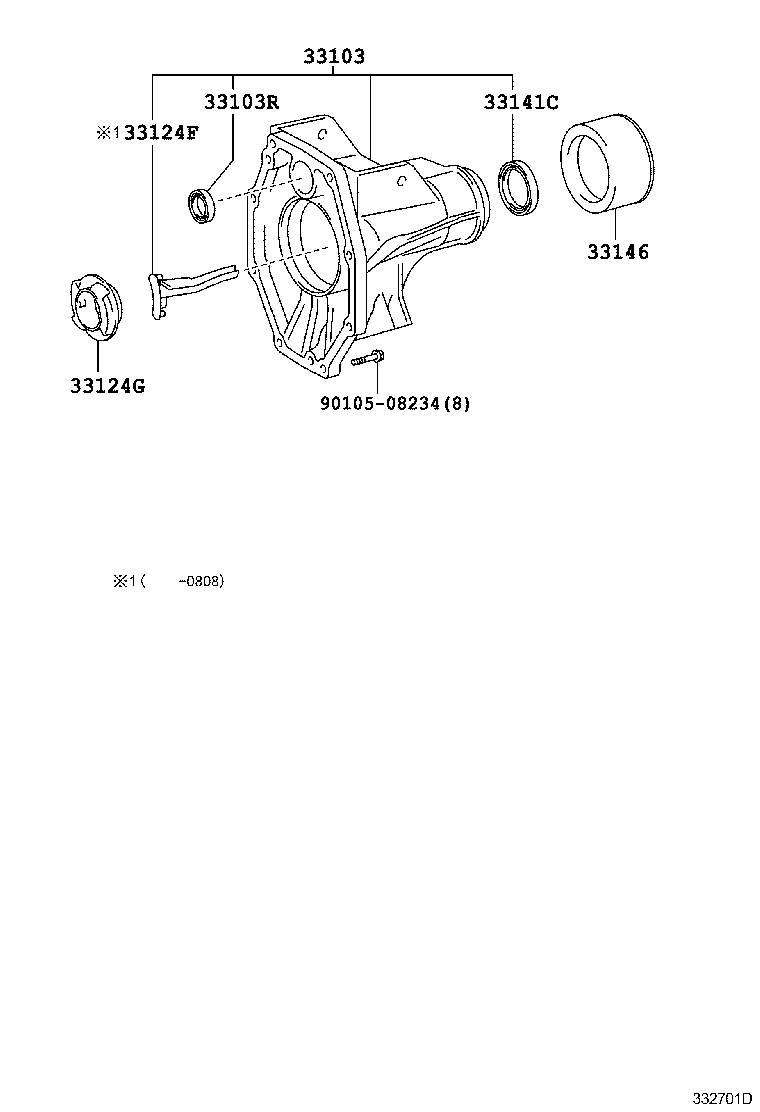

diagram 33103 33103R 33124F 33124G 33141C 33146 9010508234
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-53030

GSE20..MTM

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-18016

GSE20..MTM

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-53020

GSE20..MTM

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-53030

GSE20..MTM

 1
33141C - SEAL, OIL(FOR EXTENSION HOUSING REAR)
90311-40001

GSE20..MTM

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30020

GSE20..MTM

 1
Common parts
90105-08234
