GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
Production
Sep 2005
-
Aug 2008
Engine
4GRFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )MTM

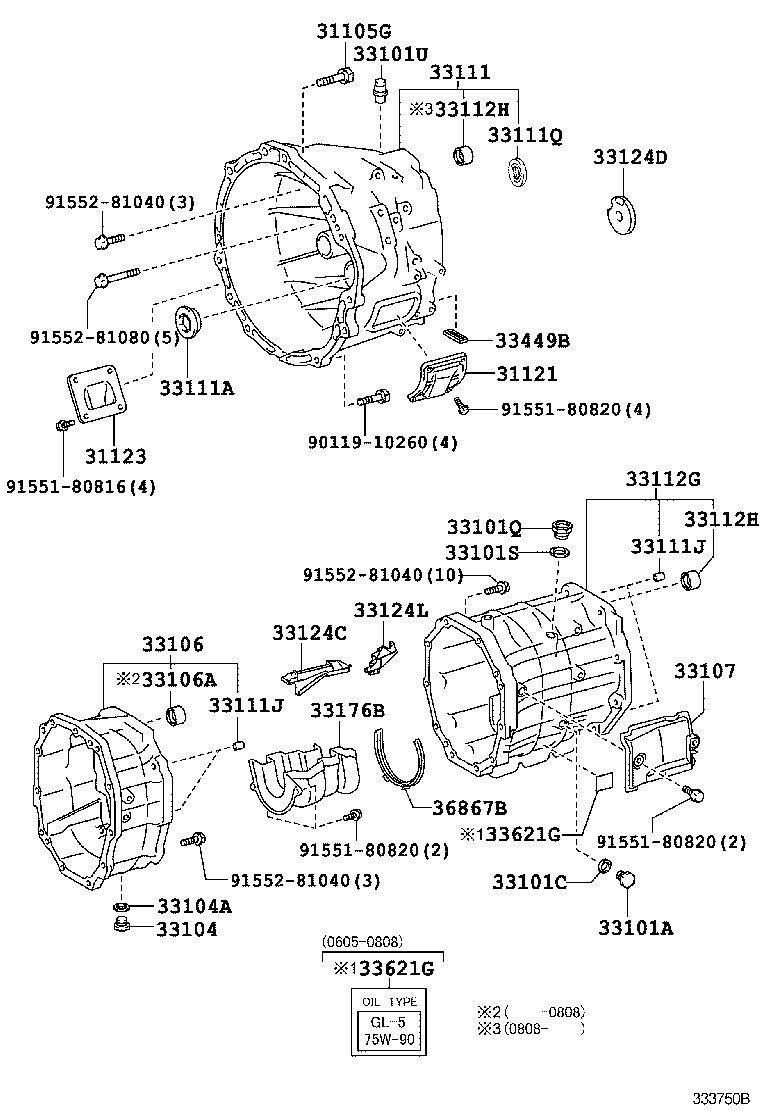

Click highlighted areas on diagram
RA62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12005 |
GSE20..MTM *12-1.25PX70-30 |
5 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-53010 |
GSE20..MTM |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31123-53010 |
GSE20..MTM |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GSE20..MTM |
1 | ||
| 90341-18033 |
GSE20..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
GSE20..MTM |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-18033 |
GSE20..MTM |
1 | ||
| 33101S - GASKET(FOR TRANSMISSION CASE PLUG NO.1) | ||||
| 90430-18008 |
GSE20..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03114 |
GSE20..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
GSE20..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GSE20..MTM |
1 | ||
| 33106 - CASE SUB-ASSY, TRANSMISSION CENTER | ||||
| 33106-53020 |
GSE20..MTM |
1 | ||
| 33106A - BEARING, TRANSMISSION CENTER CASE NEEDLE ROLLER | ||||
| 90364-18011 |
GSE20..MTM |
1 | ||
| 33107 - COVER SUB-ASSY, TRANSMISSION, UPPER | ||||
| 33107-53010 |
GSE20..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-53030 |
GSE20..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-42001 |
GSE20..MTM |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
GSE20..MTM L=15,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
GSE20..MTM L=15,OD=8 |
4 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-34029 |
GSE20..MTM |
1 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-53030 |
GSE20..MTM |
1 | ||
| 33102-53010 |
GSE20..MTM |
1 | ||
| 33112H - BEARING, TRANSMISSION CASE NEEDLE | ||||
| 90364-18011 |
GSE20..MTM |
1 | ||
| 33112H - BEARING, TRANSMISSION CASE NEEDLE | ||||
| 90364-18011 |
GSE20..MTM |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-35121 |
GSE20..MTM |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-35130 |
GSE20..MTM |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-35140 |
GSE20..MTM |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-35030 |
GSE20..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
GSE20..MTM |
1 | ||
| 33621G - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-53040 |
GSE20..MTM |
1 | ||
| 33621G - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-53040 |
GSE20..MTM |
1 | ||
| 36867B - SEAL, PACKING (FOR OIL SEPARATOR) | ||||
| 36867-35010 |
GSE20..MTM |
1 | ||
| Common parts | ||||
| 90119-10260 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91552-81040 | ||||
| 91552-81080 | ||||
