GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
Production
Sep 2005
-
Aug 2008
Engine
4GRFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )MTM

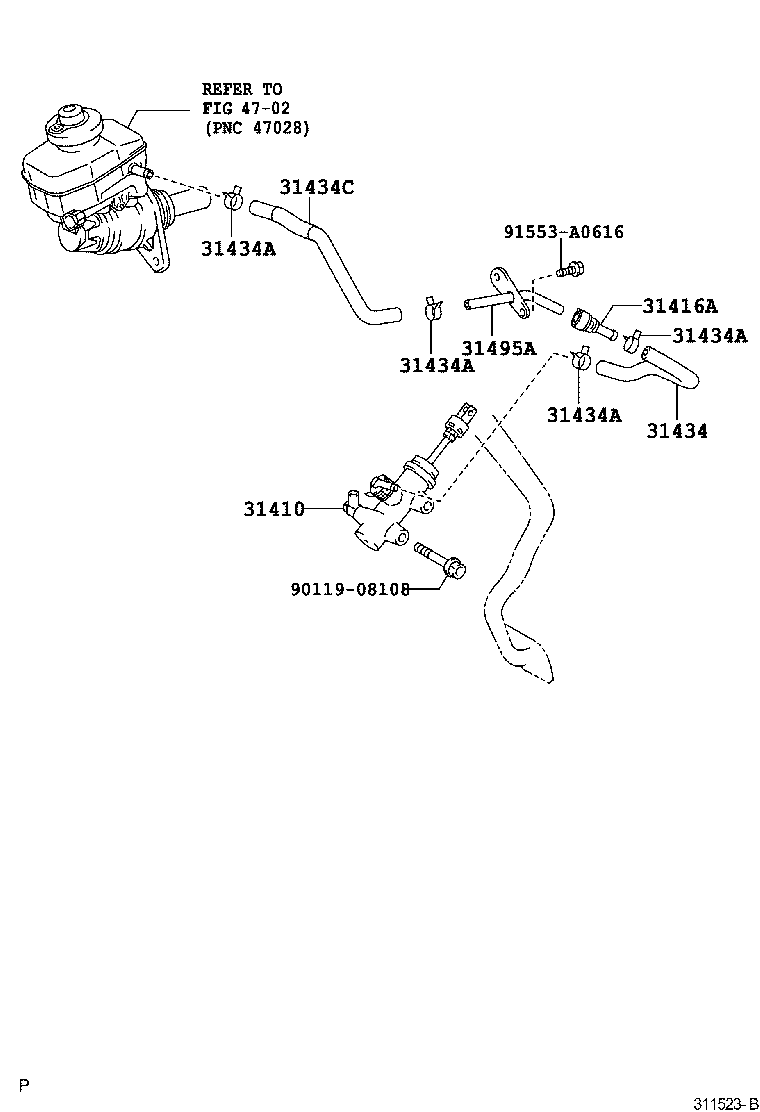

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-53040 |
GSE20..MTM |
1 | ||
| 31416A - CONNECTOR, CLUTCH HOSE | ||||
| 31416-53010 |
GSE20..MTM |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-53030 |
GSE20..MTM |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41500 |
GSE20..MTM |
4 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41500 |
GSE20..MTM |
4 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41500 |
GSE20..MTM |
4 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41500 |
GSE20..MTM |
4 | ||
| 31434C - TUBE, CLUTCH RESERVOIR | ||||
| 31434-53040 |
GSE20..MTM |
1 | ||
| 31495A - WAY, CLUTCH TUBE | ||||
| 3140A-53010 |
GSE20..MTM |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 91553-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
