GSE20L-AEFLHA (2005)
Toyota Lexus Is250/350
Production
Sep 2005
-
Aug 2008
Engine
4GRFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

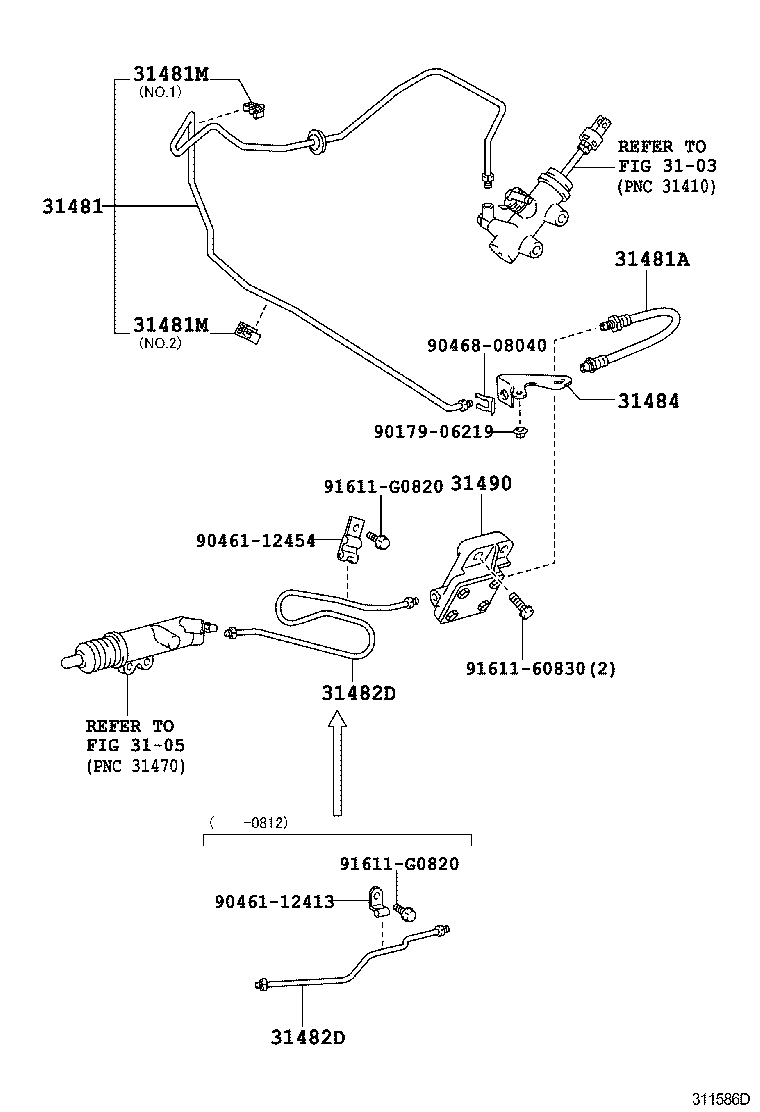

ILLUST NO. 2 OF 2(0509- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-53080 |
GSE20..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02E47 |
GSE20..MTM |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01B45 |
GSE20..MTM NO.2 |
1 | ||
| 90949-01D12 |
GSE20..MTM NO.1 |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01B45 |
GSE20..MTM NO.2 |
1 | ||
| 90949-01D12 |
GSE20..MTM NO.1 |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-53040 |
GSE20..MTM |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-53040 |
GSE20..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-53050 |
GSE20..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-53010 |
GSE20..MTM |
1 | ||
| Common parts | ||||
| 90179-06219 | ||||
| 90461-12413 | ||||
| 90461-12454 | ||||
| 90468-08040 | ||||
| 91611-60830 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
ILLUST NO. 1 OF 2(0509- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-53110 |
GSE20..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GSE20..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GSE20..MTM |
2 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-01001 |
GSE20..MTM |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GSE20..MTM |
1 | ||
| 90386-05017 |
GSE20..MTM |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06046 |
GSE20..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-53010 |
GSE20..MTM SPORT PACKAGE |
1 | ||
| 31321-12040 |
GSE20..MTM |
1 | ||
| 31321-53010 |
GSE20..MTM ACCELERATOR PEDAL-ALUMINUM TYPE |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-53010 |
GSE20..MTM SPORT PACKAGE |
1 | ||
| 31321-12040 |
GSE20..MTM |
1 | ||
| 31321-53010 |
GSE20..MTM ACCELERATOR PEDAL-ALUMINUM TYPE |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10164 |
GSE20..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10105 |
GSE20..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GSE20..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-13015 |
GSE20..MTM |
2 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-13015 |
GSE20..MTM |
2 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-53010 |
GSE20..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
GSE20..MTM L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08036 |
GSE20..MTM |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-53020 |
GSE20..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-53050 |
GSE20..MTM |
1 | ||
| 55196A - BRACKET, CLUTCH START SWITCH MOUNTING | ||||
| 55196-53030 |
GSE20..MTM |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90189-06211 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91674-80818 | ||||
| 94622-11000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
