ANF10L-AEXWBA (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2012
Engine 2AZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0907- )

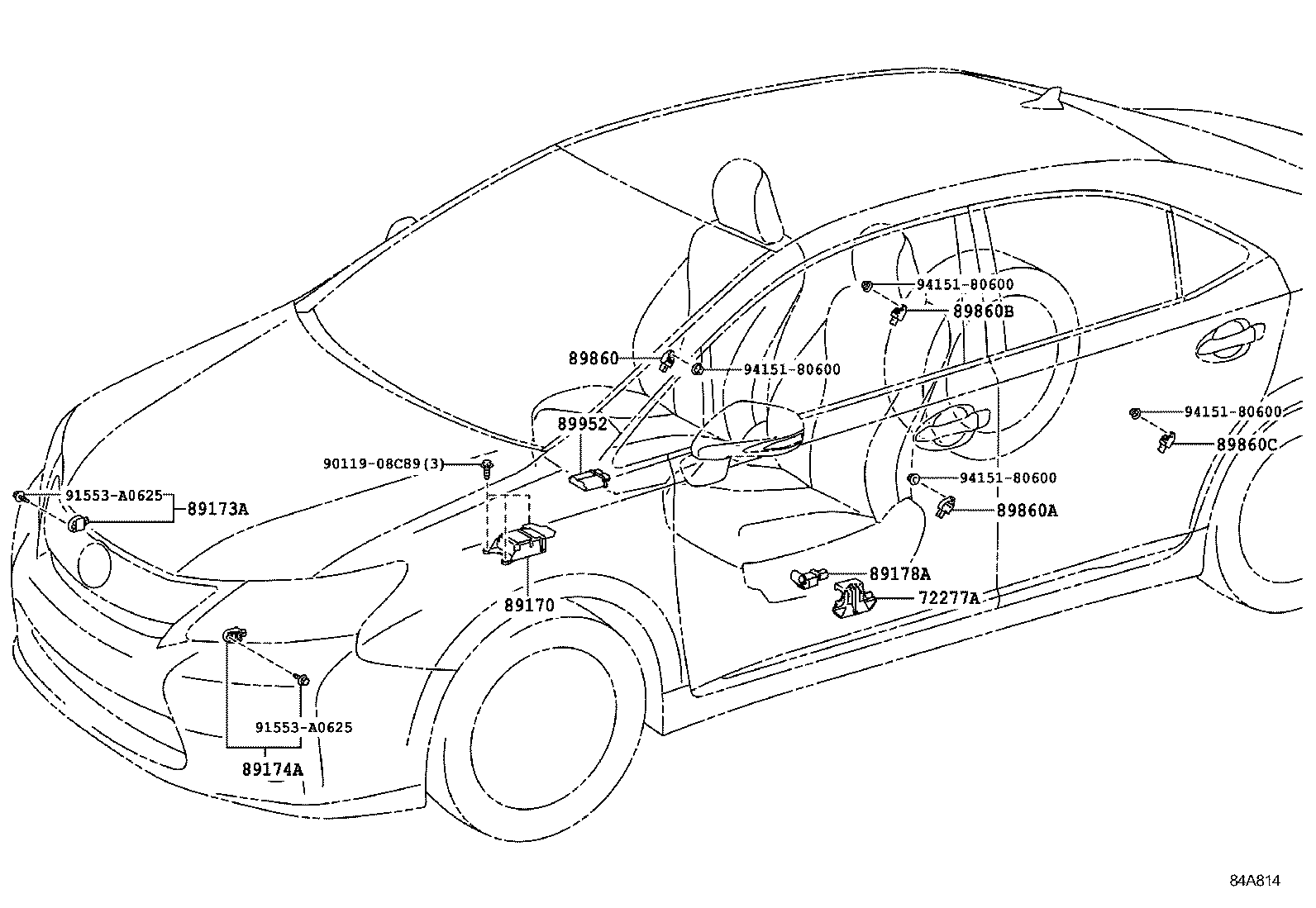

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89860 89860A 89860B 89860C 89952 9011908C89 91553A0625 91553A0625 9415180600 9415180600 9415180600 9415180600
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

ANF10

 1
89170 - SENSOR ASSY, AIR BAG
89170-75060

ANF10

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-79025

ANF10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-79025

ANF10

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

ANF10

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-75010

ANF10

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-75010

ANF10

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-75020

ANF10

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-75020

ANF10

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

ANF10..V

KOREA

 1
89952-35011

ANF10

 1
Common parts
90119-08C89
91553-A0625
94151-80600
