ANF10L-AEXWBA (2009)
Toyota Lexus Hs250h
Production
Jul 2009
-
Jan 2012
Engine
2AZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0907- )
Click highlighted areas on diagram

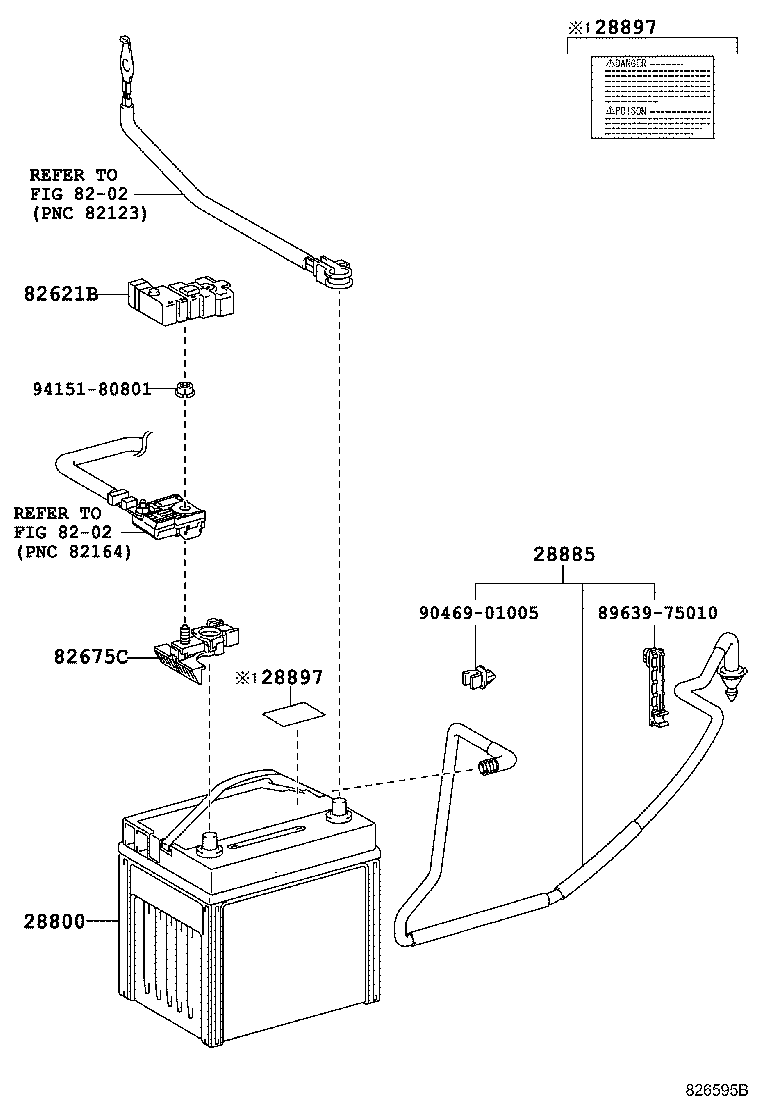

12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-28100 |
2AZFXE..ANF10 S55D23R |
1 | ||
| 28885 - HOSE, BATTERY ROOM VENTILATION | ||||
| 28885-28120 |
2AZFXE..ANF10 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-46020 |
2AZFXE..ANF10 CANADA SPEC |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-46020 |
2AZFXE..ANF10 CANADA SPEC |
1 | ||
| 82621B - COVER, FUSIBLE LINK | ||||
| 82621-33010 |
ANF10 |
1 | ||
| 82675C - TERMINAL, JUNCTION | ||||
| 82675-75050 |
ANF10 |
1 | ||
| Common parts | ||||
| 89639-75010 | ||||
| 90469-01005 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 3(0907- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-33020 |
ANF10 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-75010 |
ANF10 |
1 | ||
| G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2 | ||||
| G92D2-75010 |
ANF10 |
1 | ||
| G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3 | ||||
| G92D3-75010 |
ANF10 |
1 | ||
| G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4 | ||||
| G92D4-75010 |
ANF10 |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-75010 |
ANF10 |
1 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-75010 |
ANF10 |
1 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-75010 |
ANF10 |
1 | ||
| G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3 | ||||
| G92F3-75010 |
ANF10 |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90467-07117 | ||||

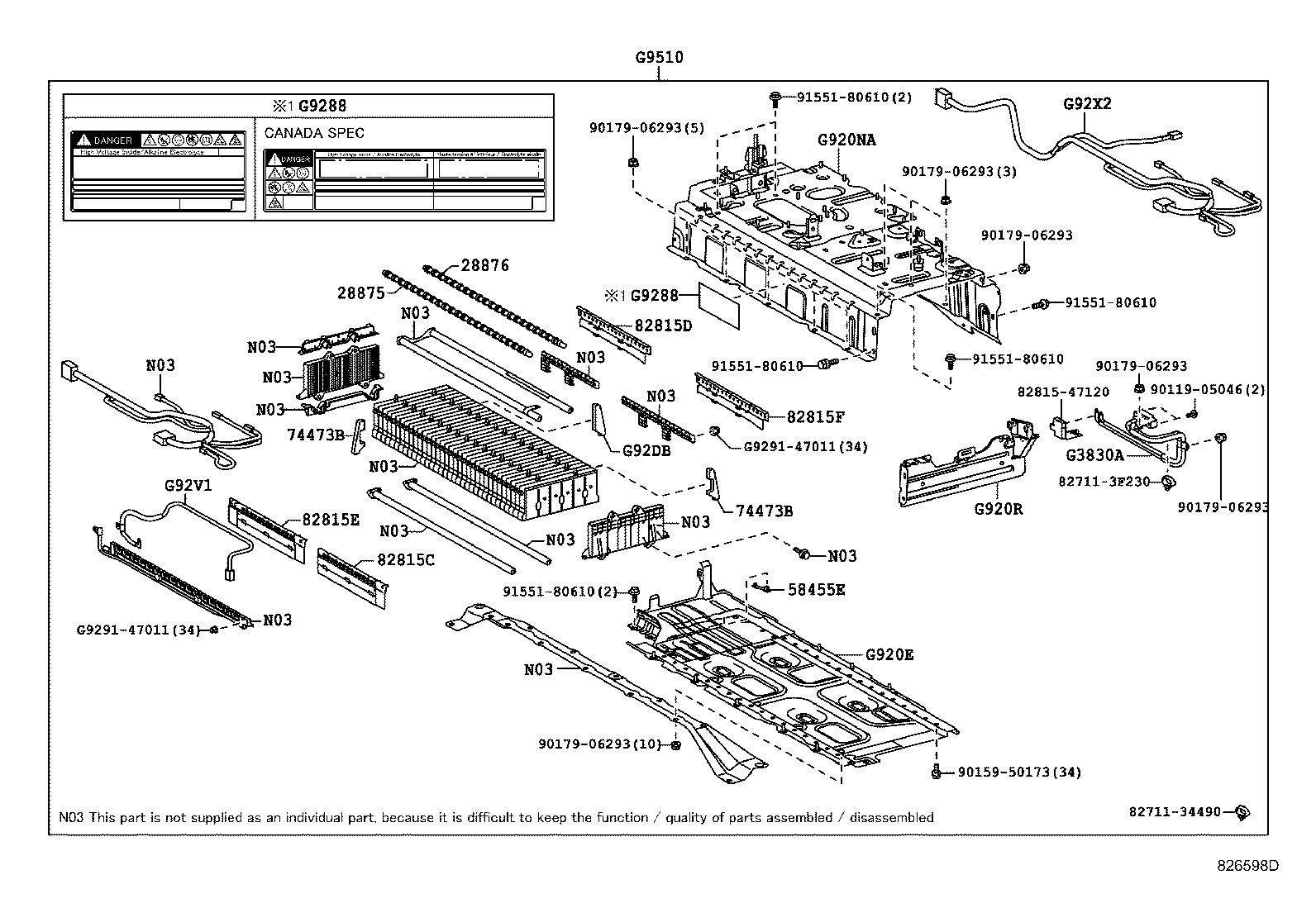

ILLUST NO. 3 OF 3(0907- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28875 - DUCT, BATTERY INSULATOR, NO.1 | ||||
| 28875-28020 |
2AZFXE..ANF10 |
1 | ||
| 28876 - DUCT, BATTERY INSULATOR, NO.2 | ||||
| 28876-28020 |
2AZFXE..ANF10 |
1 | ||
| 58455E - STOPPER, BATTERY CARRIER | ||||
| 58455-75010 |
ANF10 |
1 | ||
| 74473B - CUSHION, BATTERY CARRIER, NO.3 | ||||
| 74473-47020 |
ANF10 |
2 | ||
| 74473B - CUSHION, BATTERY CARRIER, NO.3 | ||||
| 74473-47020 |
ANF10 |
2 | ||
| 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33240 |
ANF10 |
1 | ||
| 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33250 |
ANF10 |
1 | ||
| 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47130 |
ANF10 |
1 | ||
| 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-47140 |
ANF10 |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-75010 |
ANF10 |
1 | ||
| G920E - CARRIER SUB-ASSY, HV BATTERY, LOWER | ||||
| G920E-75010 |
ANF10 |
1 | ||
| G920NA - COVER SUB-ASSY, HV BATTERY, LH | ||||
| G920N-75010 |
ANF10 |
1 | ||
| G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 | ||||
| G920R-75010 |
ANF10 |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-48020 |
ANF10 |
1 | ||
| G9288-48030 |
ANF10 CANADA SPEC |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-48020 |
ANF10 |
1 | ||
| G9288-48030 |
ANF10 CANADA SPEC |
1 | ||
| G92DB - SEAL, HYBRID BATTERY, NO.1 | ||||
| G92DB-75010 |
ANF10 |
1 | ||
| G92V1 - CABLE, HYBRID BATTERY MAIN, NO.3 | ||||
| G92V1-75010 |
ANF10 |
1 | ||
| G92X2 - WIRE, HV BATTERY PACK, NO.2 | ||||
| G92X2-75010 |
ANF10 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-75010 |
ANF10 |
1 | ||
| Common parts | ||||
| 82711-34490 | ||||
| 82711-3F230 | ||||
| 82815-47120 | ||||
| 90119-05046 | ||||
| 90159-50173 | ||||
| 90179-06293 | ||||
| 91551-80610 | ||||
| G9291-47011 | ||||

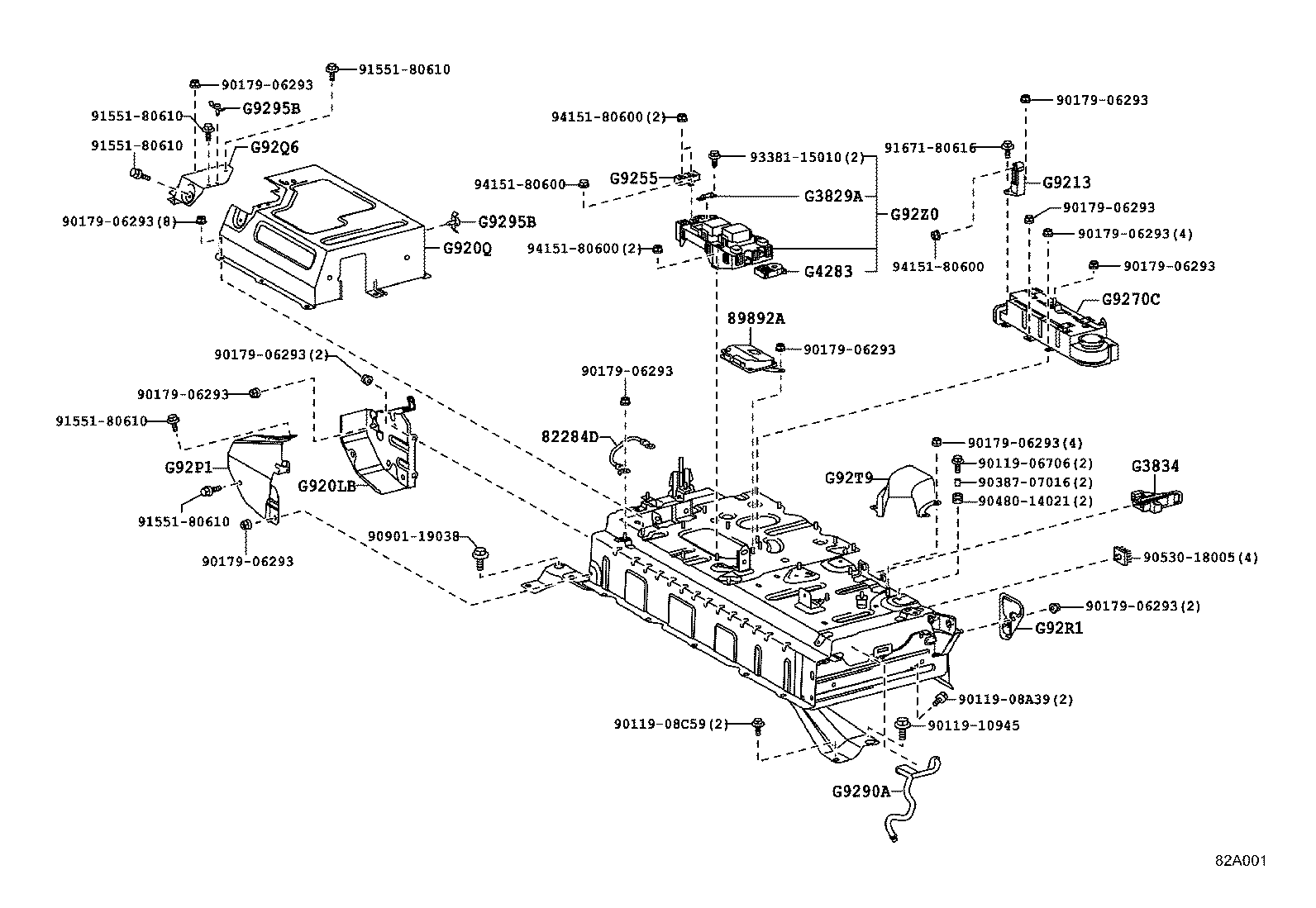

ILLUST NO. 2 OF 3(0907- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82284D - WIRE, EARTH | ||||
| 82284-75020 |
ANF10 |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-75010 |
ANF10 |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| 90982-11051 |
ANF10 15A |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G9530-75030 |
ANF10 |
1 | ||
| G4283 - SENSOR, BATTERY CURRENT | ||||
| G4283-47030 |
ANF10 |
1 | ||
| G920LB - COVER SUB-ASSY, HYBRID BATTERY, RH | ||||
| G920L-75010 |
ANF10 |
1 | ||
| G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 | ||||
| G920Q-75010 |
ANF10 |
1 | ||
| G9213 - TERMINAL, INVERTER | ||||
| G9213-75010 |
ANF10 |
1 | ||
| G9255 - CAPACITOR, FILTER NOISE | ||||
| G9255-33010 |
ANF10 |
1 | ||
| G9270C - CONVERTER, HV | ||||
| G9270-75010 |
ANF10 |
1 | ||
| G9270-75030 |
ANF10 |
1 | ||
| G9270-75031 |
ANF10 |
1 | ||
| G9290A - HOSE ASSY, HYBRID BATTERY | ||||
| G9290-75010 |
ANF10 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
ANF10 |
2 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
ANF10 |
2 | ||
| G92P1 - SHIELD, HYBRID BATTERY, FRONT | ||||
| G92P1-75010 |
ANF10 |
1 | ||
| G92Q6 - PANEL, HV BATTERY SHIELD, NO.4 | ||||
| G92Q6-75010 |
ANF10 |
1 | ||
| G92R1 - SHIELD, HYBRID BATTERY, REAR NO.1 | ||||
| G92R1-75010 |
ANF10 |
1 | ||
| G92T9 - COVER, HYBRID BATTERY SERVICE PLUG | ||||
| G92T9-75010 |
ANF10 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-33010 |
ANF10 |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90119-08A39 | ||||
| 90119-08C59 | ||||
| 90119-10945 | ||||
| 90179-06293 | ||||
| 90387-07016 | ||||
| 90480-14021 | ||||
| 90530-18005 | ||||
| 90901-19038 | ||||
| 91551-80610 | ||||
| 91671-80616 | ||||
| 93381-15010 | ||||
| 94151-80600 | ||||
