ANF10L-AEXWBA (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2012
Engine 2AZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0907- )

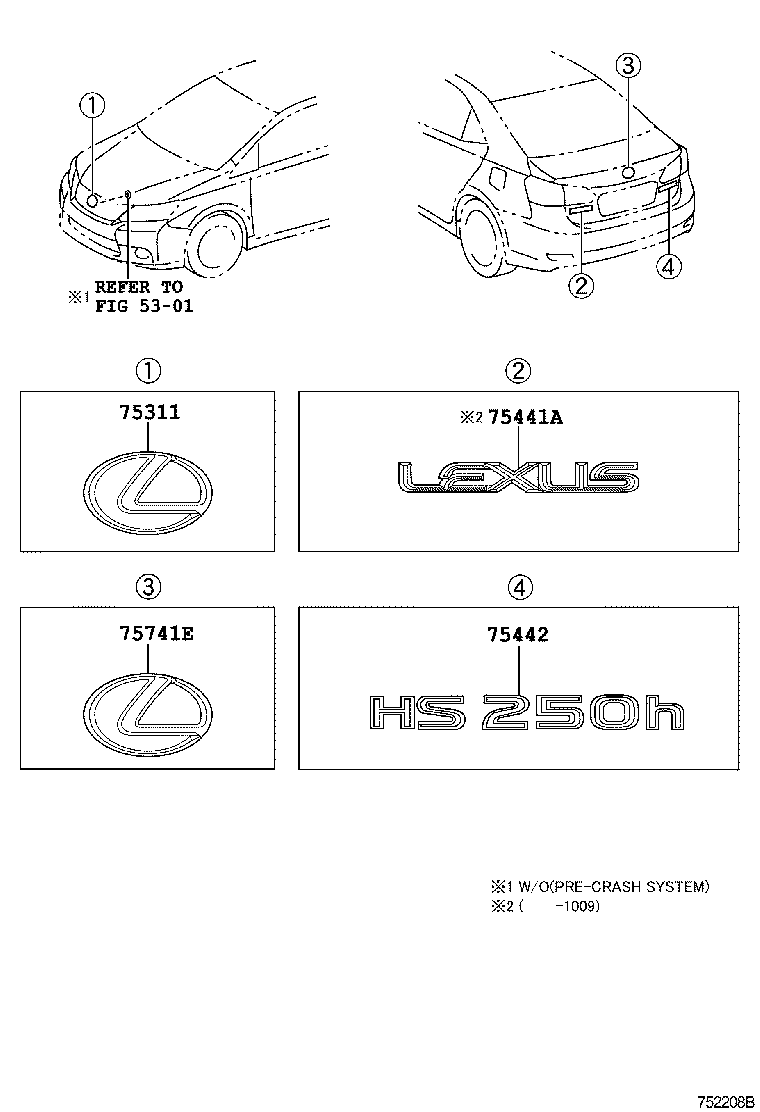

Click highlighted areas on diagram

diagram 5301 75311 75441A 75442 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
53141-75040

ANF10..W

PRE-COLLISION SYSTEM-WITH(*PB)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

 1
53141-75040

ANF10..W

PRE-COLLISION SYSTEM-WITH(*DMO & *PB)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

 1
90975-02117

ANF10

 1
75441A - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-75020

ANF10

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-75020

ANF10

HS 250H

 1
75741E - EMBLEM, SYMBOL
90975-02113

ANF10

 1
90975-02228

ANF10

 1
Linked diagrams
5301
