ANF10L-AEXWBA (2009)
Toyota Lexus Hs250h
(0907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

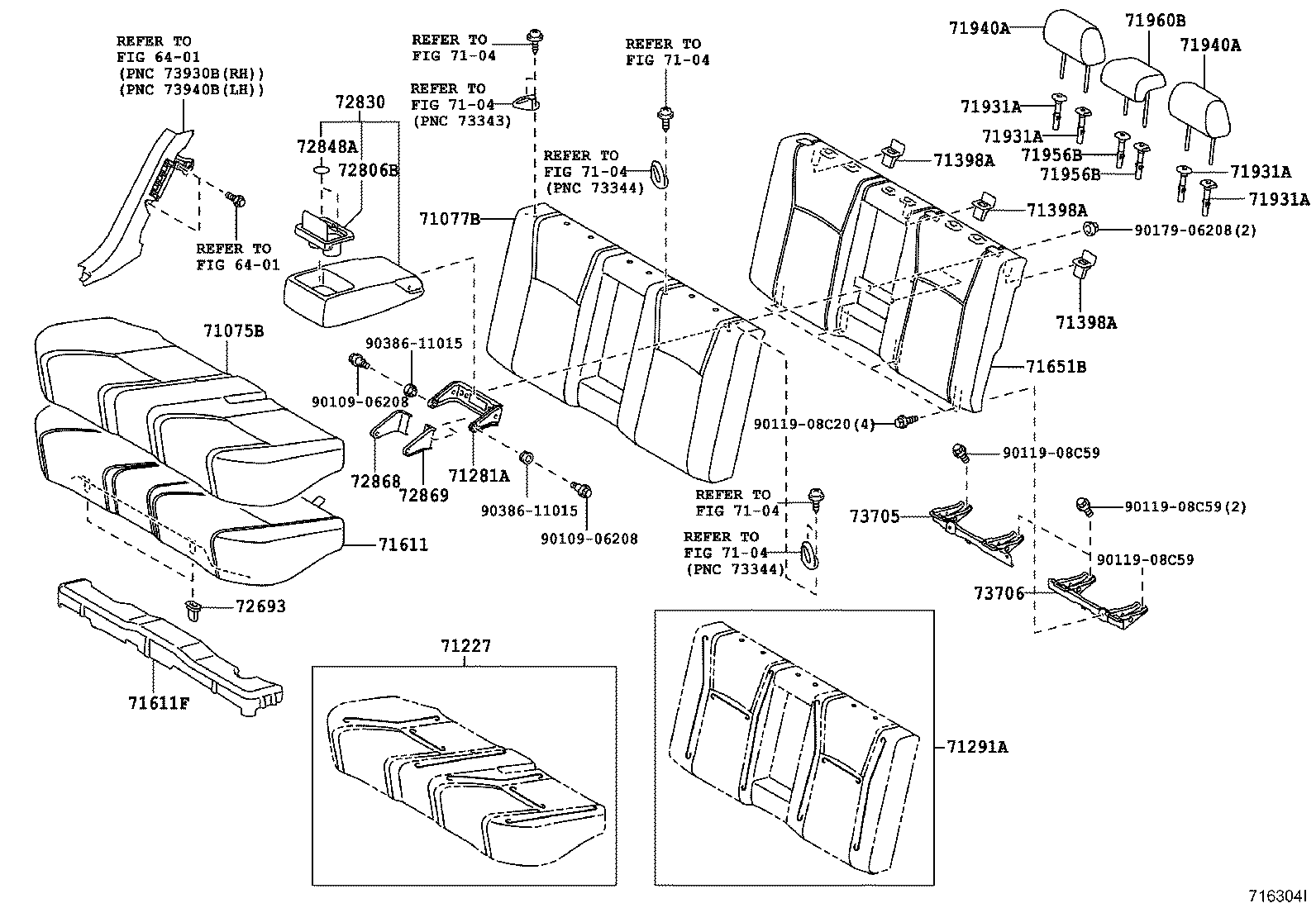

| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-75090C2 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71075-7504001 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 71075-75090A6 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71075-75090A5 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71075-75180A1 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 71075-75091A6 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71075-75180A0 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 71075-75210C0 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71075-75180C0 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 71075-75210A0 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71075-75200A0 |
ANF10..V TOURING PACKAGE&SEAT HEATER-WITH,WATER WHITE,TRIM2# |
1 | ||
| 71075-75080A4 |
ANF10..V TOURING PACKAGE&SEAT HEATER-WITH,WATER WHITE/BLACK,TRIM2# |
1 | ||
| 71075-75091A5 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71075-75040C5 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 71075-7504002 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 71075-75091C2 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71075-75210A1 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-75090A5 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71077-75040C4 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 71077-75091C2 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71077-75080A3 |
ANF10..V TOURING PACKAGE&SEAT HEATER-WITH,WATER WHITE,TRIM2# |
1 | ||
| 71077-75180A1 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 71077-75040A8 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 71077-75090A6 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71077-75091A6 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71077-75040A9 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 71077-75180C0 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 71077-75210A0 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71077-75210C0 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71077-75180A0 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 71077-75090C2 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71077-75210A1 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71077-75200A0 |
ANF10..V TOURING PACKAGE&SEAT HEATER-WITH,WATER WHITE,TRIM2# |
1 | ||
| 71077-75091A5 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71227 - WIRE, REAR SEAT CUSHION COVER SET | ||||
| 71227-75010 |
ANF10 |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-75010 |
ANF10 |
1 | ||
| 71291A - WIRE, REAR SEAT BACK COVER SET | ||||
| 71291-75010 |
ANF10 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C0 |
ANF10 BLACK,TRIM2# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C0 |
ANF10 BLACK,TRIM2# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C0 |
ANF10 BLACK,TRIM2# |
3 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-75010 |
ANF10 |
1 | ||
| 71611F - PAD, REAR SEAT CUSHION, A | ||||
| 71611-75010 |
ANF10 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-75020 |
ANF10 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A4 |
ANF10 W(LOCK),IVORY,TRIM05 |
2 | ||
| 71931-47010A9 |
ANF10..W W/O(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71931-47010C0 |
ANF10..V W/O(LOCK),BLACK,TRIM25 |
2 | ||
| 71931-47010A8 |
ANF10 W/O(LOCK),IVORY,TRIM05 |
2 | ||
| 71930-44020C0 |
ANF10..W W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ANF10..W W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-44020A5 |
ANF10..W W(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71930-44020A5 |
ANF10..V W(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71931-47010A9 |
ANF10..V W/O(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71930-44020C0 |
ANF10..V W(LOCK),BLACK,TRIM25 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A4 |
ANF10 W(LOCK),IVORY,TRIM05 |
2 | ||
| 71931-47010A9 |
ANF10..W W/O(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71931-47010C0 |
ANF10..V W/O(LOCK),BLACK,TRIM25 |
2 | ||
| 71931-47010A8 |
ANF10 W/O(LOCK),IVORY,TRIM05 |
2 | ||
| 71930-44020C0 |
ANF10..W W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ANF10..W W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-44020A5 |
ANF10..W W(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71930-44020A5 |
ANF10..V W(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71931-47010A9 |
ANF10..V W/O(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71930-44020C0 |
ANF10..V W(LOCK),BLACK,TRIM25 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A4 |
ANF10 W(LOCK),IVORY,TRIM05 |
2 | ||
| 71931-47010A9 |
ANF10..W W/O(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71931-47010C0 |
ANF10..V W/O(LOCK),BLACK,TRIM25 |
2 | ||
| 71931-47010A8 |
ANF10 W/O(LOCK),IVORY,TRIM05 |
2 | ||
| 71930-44020C0 |
ANF10..W W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ANF10..W W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-44020A5 |
ANF10..W W(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71930-44020A5 |
ANF10..V W(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71931-47010A9 |
ANF10..V W/O(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71930-44020C0 |
ANF10..V W(LOCK),BLACK,TRIM25 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020A4 |
ANF10 W(LOCK),IVORY,TRIM05 |
2 | ||
| 71931-47010A9 |
ANF10..W W/O(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71931-47010C0 |
ANF10..V W/O(LOCK),BLACK,TRIM25 |
2 | ||
| 71931-47010A8 |
ANF10 W/O(LOCK),IVORY,TRIM05 |
2 | ||
| 71930-44020C0 |
ANF10..W W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ANF10..W W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-44020A5 |
ANF10..W W(LOCK),WATER WHITE,TRIM06 |
2 | ||
| 71930-44020A5 |
ANF10..V W(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71931-47010A9 |
ANF10..V W/O(LOCK),WATER WHITE,TRIM06,25 |
2 | ||
| 71930-44020C0 |
ANF10..V W(LOCK),BLACK,TRIM25 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-75091A2 |
ANF10..W IVORY,TRIM05 |
2 | ||
| 71940-75091C1 |
ANF10..W BLACK,TRIM2# |
2 | ||
| 71940-75090A4 |
ANF10..W WATER WHITE,TRIM06 |
2 | ||
| 71940-75080A4 |
ANF10..V IVORY,TRIM05 |
2 | ||
| 71940-75080A5 |
ANF10..V WATER WHITE,TRIM06,25 |
2 | ||
| 71940-75090C1 |
ANF10..W BLACK,TRIM2# |
2 | ||
| 71940-75190A0 |
ANF10..W IVORY,TRIM05 |
2 | ||
| 71940-75180C0 |
ANF10..V BLACK,TRIM25 |
2 | ||
| 71940-75180A0 |
ANF10..V WATER WHITE,TRIM06,25 |
2 | ||
| 71940-75091A4 |
ANF10..W WATER WHITE,TRIM06 |
2 | ||
| 71940-75090A2 |
ANF10..W IVORY,TRIM05 |
2 | ||
| 71940-75190A1 |
ANF10..W WATER WHITE,TRIM06 |
2 | ||
| 71940-75180A1 |
ANF10..V IVORY,TRIM05 |
2 | ||
| 71940-75080C2 |
ANF10..V BLACK,TRIM25 |
2 | ||
| 71940-75190C0 |
ANF10..W BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-75091A2 |
ANF10..W IVORY,TRIM05 |
2 | ||
| 71940-75091C1 |
ANF10..W BLACK,TRIM2# |
2 | ||
| 71940-75090A4 |
ANF10..W WATER WHITE,TRIM06 |
2 | ||
| 71940-75080A4 |
ANF10..V IVORY,TRIM05 |
2 | ||
| 71940-75080A5 |
ANF10..V WATER WHITE,TRIM06,25 |
2 | ||
| 71940-75090C1 |
ANF10..W BLACK,TRIM2# |
2 | ||
| 71940-75190A0 |
ANF10..W IVORY,TRIM05 |
2 | ||
| 71940-75180C0 |
ANF10..V BLACK,TRIM25 |
2 | ||
| 71940-75180A0 |
ANF10..V WATER WHITE,TRIM06,25 |
2 | ||
| 71940-75091A4 |
ANF10..W WATER WHITE,TRIM06 |
2 | ||
| 71940-75090A2 |
ANF10..W IVORY,TRIM05 |
2 | ||
| 71940-75190A1 |
ANF10..W WATER WHITE,TRIM06 |
2 | ||
| 71940-75180A1 |
ANF10..V IVORY,TRIM05 |
2 | ||
| 71940-75080C2 |
ANF10..V BLACK,TRIM25 |
2 | ||
| 71940-75190C0 |
ANF10..W BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A9 |
ANF10..V W/O(LOCK),WATER WHITE,TRIM06,25 |
1 | ||
| 71931-47010C0 |
ANF10..V W/O(LOCK),BLACK,TRIM25 |
1 | ||
| 71930-44020A5 |
ANF10..V W(LOCK),WATER WHITE,TRIM06,25 |
1 | ||
| 71930-44020A5 |
ANF10..W W(LOCK),WATER WHITE,TRIM06 |
1 | ||
| 71930-44020C0 |
ANF10..W W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-44020A4 |
ANF10 W(LOCK),IVORY,TRIM05 |
1 | ||
| 71930-44020C0 |
ANF10..V W(LOCK),BLACK,TRIM25 |
1 | ||
| 71931-47010C0 |
ANF10..W W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47010A9 |
ANF10..W W/O(LOCK),WATER WHITE,TRIM06 |
1 | ||
| 71931-47010A8 |
ANF10 W/O(LOCK),IVORY,TRIM05 |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A9 |
ANF10..V W/O(LOCK),WATER WHITE,TRIM06,25 |
1 | ||
| 71931-47010C0 |
ANF10..V W/O(LOCK),BLACK,TRIM25 |
1 | ||
| 71930-44020A5 |
ANF10..V W(LOCK),WATER WHITE,TRIM06,25 |
1 | ||
| 71930-44020A5 |
ANF10..W W(LOCK),WATER WHITE,TRIM06 |
1 | ||
| 71930-44020C0 |
ANF10..W W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-44020A4 |
ANF10 W(LOCK),IVORY,TRIM05 |
1 | ||
| 71930-44020C0 |
ANF10..V W(LOCK),BLACK,TRIM25 |
1 | ||
| 71931-47010C0 |
ANF10..W W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47010A9 |
ANF10..W W/O(LOCK),WATER WHITE,TRIM06 |
1 | ||
| 71931-47010A8 |
ANF10 W/O(LOCK),IVORY,TRIM05 |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-75040A2 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71960-75041C1 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71960-75050A5 |
ANF10..V WATER WHITE,TRIM06,25 |
1 | ||
| 71960-75050A4 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 71960-75100C0 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71960-75040C1 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 71960-75041A4 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71960-75110C0 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 71960-75100A0 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71960-75041A2 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 71960-75040A4 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71960-75050C2 |
ANF10..V BLACK,TRIM25 |
1 | ||
| 71960-75110A0 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 71960-75100A1 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 71960-75110A1 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ANF10 |
2 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-33050C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 72806-33050A0 |
ANF10 IVORY,TRIM05 |
1 | ||
| 72806-33050A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-75050A4 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 72830-75050A2 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 72830-75060C2 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 72830-75120C0 |
ANF10..V BLACK,TRIM2# |
1 | ||
| 72830-75051C1 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 72830-75110A0 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 72830-75050C1 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 72830-75051A2 |
ANF10..W IVORY,TRIM05 |
1 | ||
| 72830-75120A0 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 72830-75060A4 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 72830-75110C0 |
ANF10..W BLACK,TRIM2# |
1 | ||
| 72830-75110A1 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 72830-75060A5 |
ANF10..V WATER WHITE,TRIM06 |
1 | ||
| 72830-75120A1 |
ANF10..V IVORY,TRIM05 |
1 | ||
| 72830-75051A4 |
ANF10..W WATER WHITE,TRIM06 |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-75010 |
ANF10 |
2 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-75020A0 |
ANF10 IVORY,TRIM05 |
1 | ||
| 72868-75020A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 72868-75020C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-75010C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 72869-75010A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 72869-75010A0 |
ANF10 IVORY,TRIM05 |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-75010 |
ANF10 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-75010 |
ANF10 |
1 | ||
| Common parts | ||||
| 90109-06208 | ||||
| 90119-08C20 | ||||
| 90119-08C59 | ||||
| 90179-06208 | ||||
| 90386-11015 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
