ANF10L-AEXWBA (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2012
Engine 2AZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

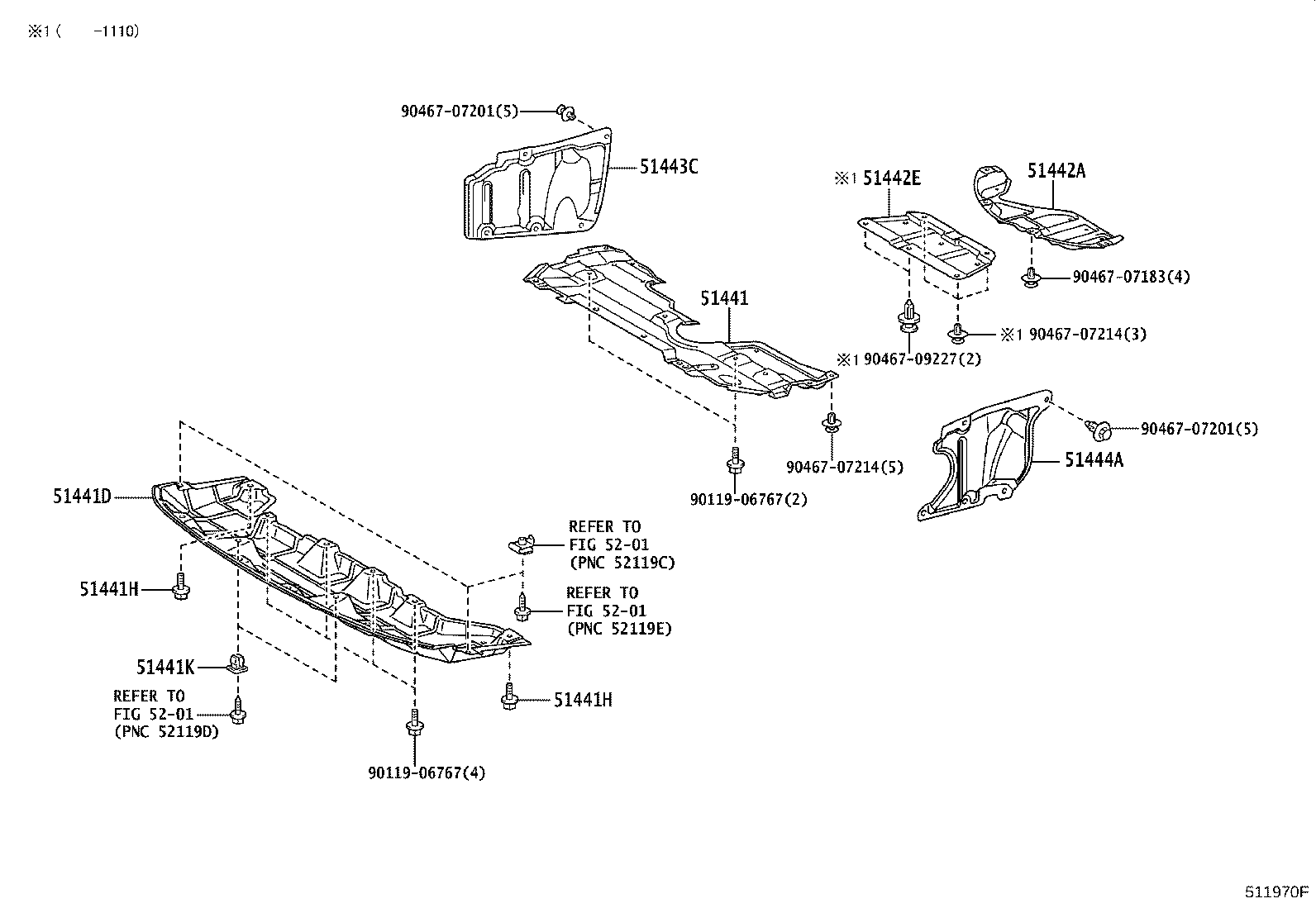

ILLUST NO. 2 OF 2(0907- )

Click highlighted areas on diagram

UNDER COVER

diagram 51441 51441D 51441H 51441H 51441K 51442A 51442E 51443C 51444A 5201 5201 5201 9011906767 9011906767 9046707183 9046707201 9046707201 9046707214 9046707214 9046709227
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-12270

ANF10

 1
51441D - COVER, ENGINE UNDER
52618-75040

ANF10

 1
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767

ANF10

 2
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767

ANF10

 2
51441K - GROMMET(FOR ENGINE UNDER COVER)
90189-06193

ANF10

 2
51442A - COVER, ENGINE UNDER, FRONT NO.3
51442-12210

ANF10

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-12270

ANF10

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-12080

ANF10

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-75010

ANF10

 1
Common parts
90119-06767
90467-07183
90467-07201
90467-07214
90467-09227
Linked diagrams
5201

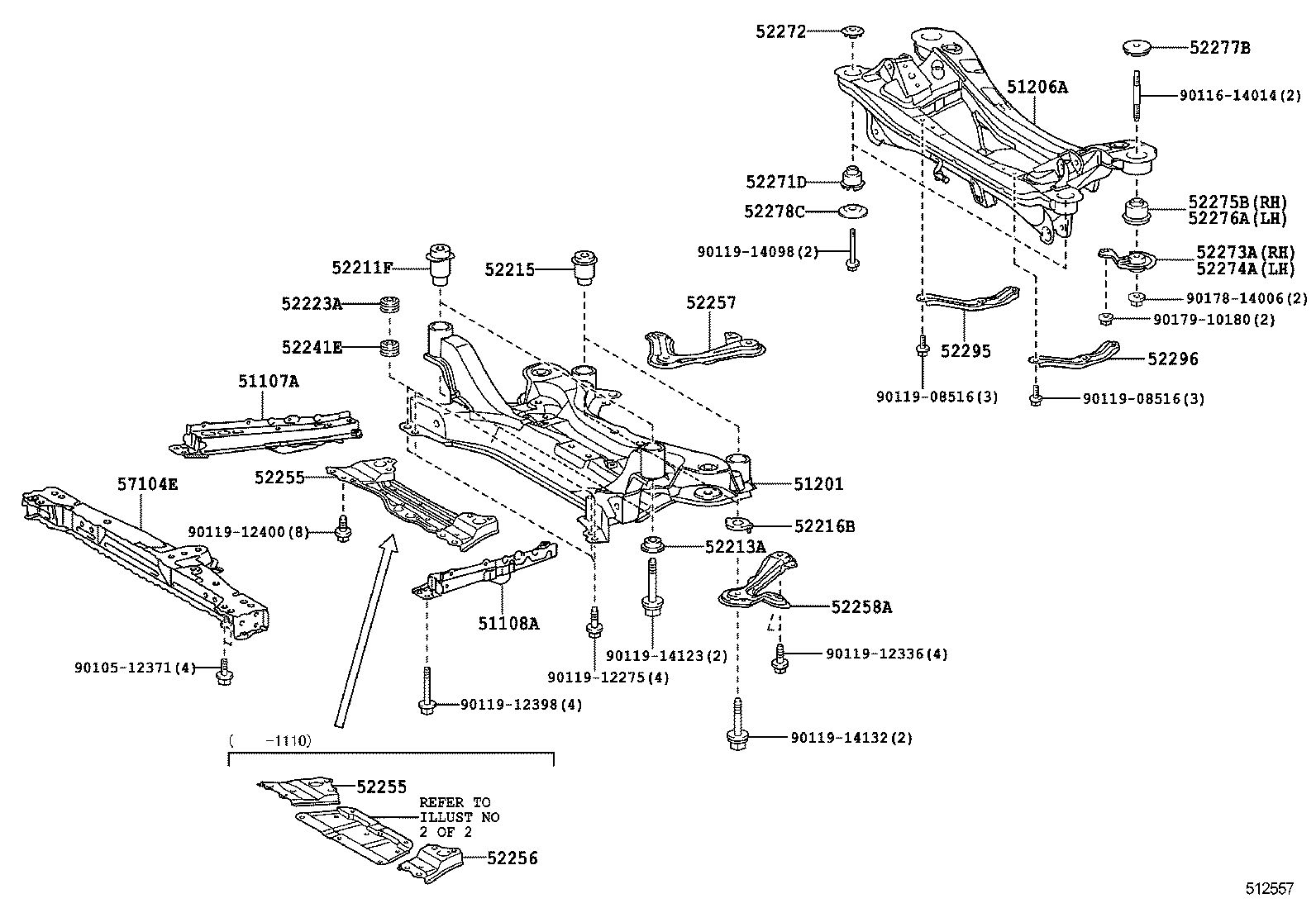

ILLUST NO. 1 OF 2(0907- )

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

diagram 51107A 51108A 51201 51206A 52211F 52213A 52215 52216B 52223A 52241E 52255 52255 52256 52257 52258A 52271D 52272 52273A 52274A 52275B 52276A 52277B 52278C 52295 52296 57104E 9010512371 9011614014 9011908516 9011908516 9011912275 9011912336 9011912398 9011912400 9011914098 9011914123 9011914132 9017814006 9017910180
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-28030

ANF10

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-28030

ANF10

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-72010

ANF10

 1
51201-72011

ANF10

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-75011

ANF10

 1
51206-75020

ANF10

 1
52211F - CUSHION, BODY MOUNTING, FRONT UPPER
52211-75020

ANF10

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-28040

ANF10

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-75010

ANF10

 2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-28030

ANF10

 2
52223A - SPACER, CAB REAR MOUNTING, LOWER
52223-28010

ANF10

 4
52241E - CUSHION, CAB REAR MOUNTING
52241-28010

ANF10

 4
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-12010

ANF10

 1
52255-76010

ANF10

 1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-12010

ANF10

 1
52255-76010

ANF10

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-12010

ANF10

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-72022

ANF10

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-72022

ANF10

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-75010

ANF10

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-75010

ANF10

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-12010

ANF10

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52203-12010

ANF10

 1
52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52275-75010

ANF10

 1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-75010

ANF10

 1
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-75010

ANF10

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-75010

ANF10

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-12051

ANF10

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-12051

ANF10

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-12270

ANF10

 1
Common parts
90105-12371
90116-14014
90119-08516
90119-12275
90119-12336
90119-12398
90119-12400
90119-14098
90119-14123
90119-14132
90178-14006
90179-10180
