UZJ120L-GKAZKA (2002)

Toyota Lexus Gx470

Production Nov 2002 - Aug 2009
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

Click highlighted areas on diagram

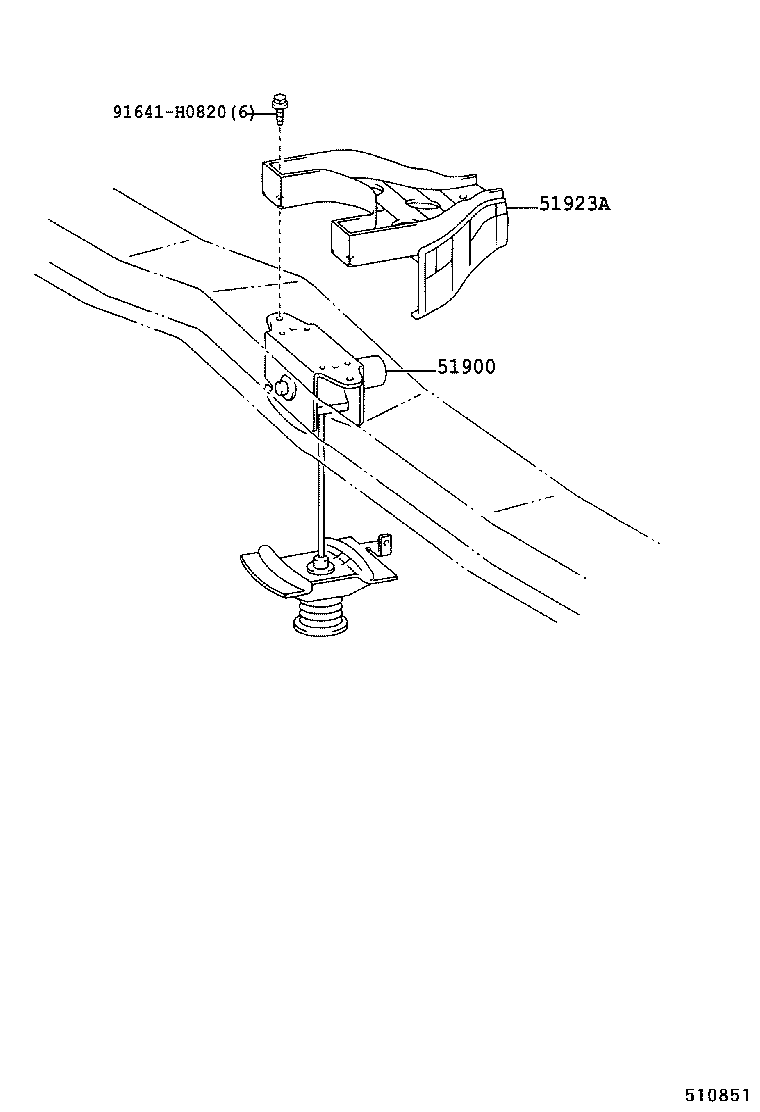

diagram 51900 51923A 91641H0820
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-60310

UZJ120

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

 1
51900-35380

UZJ120

 1
51923A - GUIDE, SPARE WHELL CARRIER HANDLE
51923-35020

UZJ120

 1
Common parts
91641-H0820
