UZJ120L-GKAZKA (2002)
Toyota Lexus Gx470
Production
Nov 2002
-
Aug 2009
Engine
2UZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0211- )

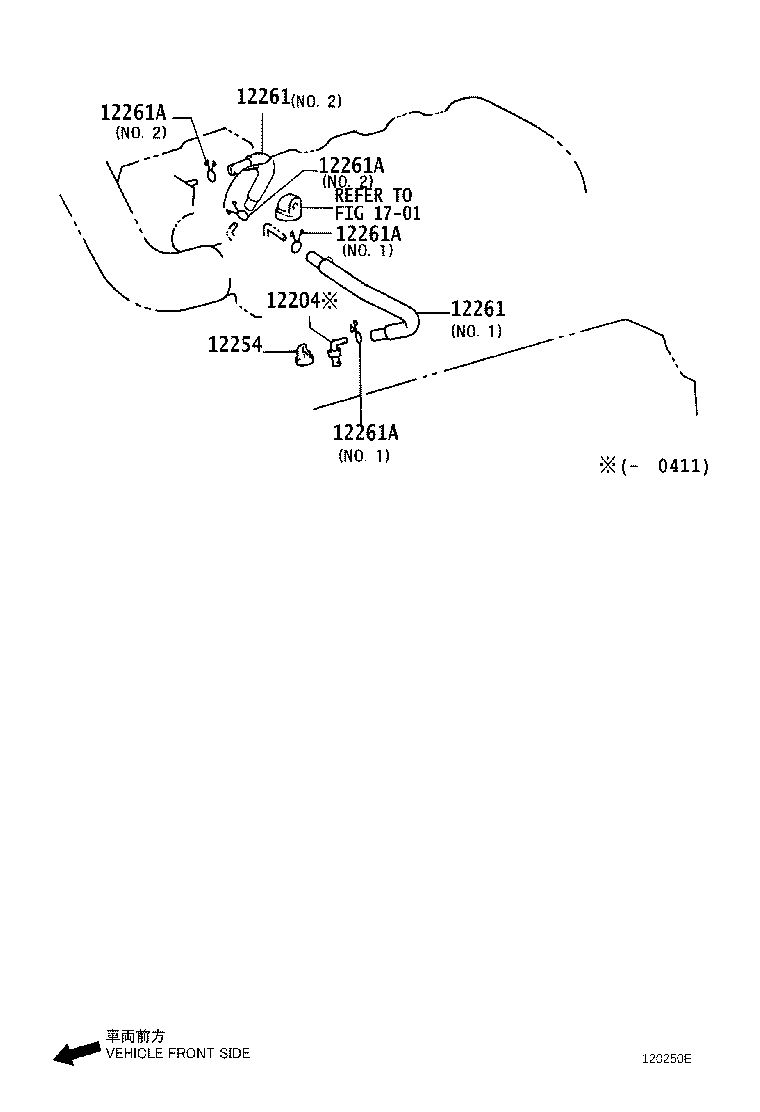

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-50030 |
2UZFE..UZJ120 |
1 | ||
| 12254 - COVER, VENTILATION VALVE | ||||
| 12236-50010 |
2UZFE..UZJ120 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-50050 |
2UZFE..UZJ120 NO.1 |
1 | ||
| 12261-50060 |
2UZFE..UZJ120 NO.2 |
1 | ||
| 12261-50070 |
2UZFE..UZJ120 NO.1 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-50050 |
2UZFE..UZJ120 NO.1 |
1 | ||
| 12261-50060 |
2UZFE..UZJ120 NO.2 |
1 | ||
| 12261-50070 |
2UZFE..UZJ120 NO.1 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
2UZFE..UZJ120 NO.1 |
2 | ||
| 90467-19003 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 96133-41900 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
2UZFE..UZJ120 NO.1 |
2 | ||
| 90467-19003 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 96133-41900 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
2UZFE..UZJ120 NO.1 |
2 | ||
| 90467-19003 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 96133-41900 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
2UZFE..UZJ120 NO.1 |
2 | ||
| 90467-19003 |
2UZFE..UZJ120 NO.2 |
2 | ||
| 96133-41900 |
2UZFE..UZJ120 NO.2 |
2 | ||
| Linked diagrams | ||||
| 1701 | ||||
