URJ150L-GKTZKA (2013)
Toyota Lexus Gx460
(1308-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-60040 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE) |
1 | ||
| 86104-60020 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE) |
1 | ||
| 86104-60021 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE) |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-60100 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE) |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86118-60090 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),NO.2 |
1 | ||
| 86118-60070 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),NO.1 |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86118-60090 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),NO.2 |
1 | ||
| 86118-60070 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),NO.1 |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-60090 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE) |
1 | ||
| 86174B - CASE, SWITCH & VOLUME | ||||
| 86174-60050A0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
1 | ||
| 86174-60050C0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
1 | ||
| 86174-60050E0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-48080A1 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86295-48080E0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86295-48080C0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86295E - BASE, TELEVISION, NO.2 | ||||
| 86295-48070A1 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86295-48070C0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86295-48070E0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86295F - BASE, TELEVISION, NO.3 | ||||
| 86295-60050C0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86295-48060C0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86295-48060E0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86295-48060A1 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86295-60050A0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86295-60050E0 |
URJ150..Z REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86470 - COMPUTER ASSY, DRIVER MONITOR | ||||
| 86470-60010 |
URJ150..Z PRE-COLLISION SYSTEM-WITH(*DMO & *MRT) |
1 | ||
| 86471 - CAMERA, DRIVER MONITOR | ||||
| 86471-60010 |
URJ150..Z PRE-COLLISION SYSTEM-WITH(*DMO & *MRT) |
1 | ||
| 86472 - BRACKET, DRIVER MONITOR | ||||
| 86472-50010 |
URJ150..Z PRE-COLLISION SYSTEM-WITH(*DMO & *MRT) |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86430-60090A0 |
URJ150..Z TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86430-60110E0 |
URJ150..Z PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86430-60120A0 |
URJ150..Z PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86430-60110A0 |
URJ150..Z PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
2 | ||
| 86430-60090E0 |
URJ150..Z TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86430-60120E0 |
URJ150..Z PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
2 | ||
| 86430-60110C0 |
URJ150..Z PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86430-60090C0 |
URJ150..Z TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86430-60120C0 |
URJ150..Z PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
2 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-60200 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 86790-60200 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-60230 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),RH |
1 | ||
| 86790-60220 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),LH |
1 | ||
| 86790-60230 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),RH |
1 | ||
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-60230 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),RH |
1 | ||
| 86790-60220 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),LH |
1 | ||
| 86790-60230 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),RH |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-60180 |
URJ150 |
1 | ||
| 86790-60182 |
URJ150 |
1 | ||
| 86790-60181 |
URJ150 |
1 | ||
| 86790-60240 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 86790-60240 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 86790-60241 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 86790-60241 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-60571 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 86792-60570 |
URJ150..Z BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 86792-60570 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 86792-60571 |
URJ150 BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90153-50012 | ||||
| 90159-50327 | ||||
| 90167-40044 | ||||
| 90167-40057 | ||||
| 90179-06274 | ||||
| 91631-J0612 | ||||
| 91673-80616 | ||||
| 93560-14010 | ||||

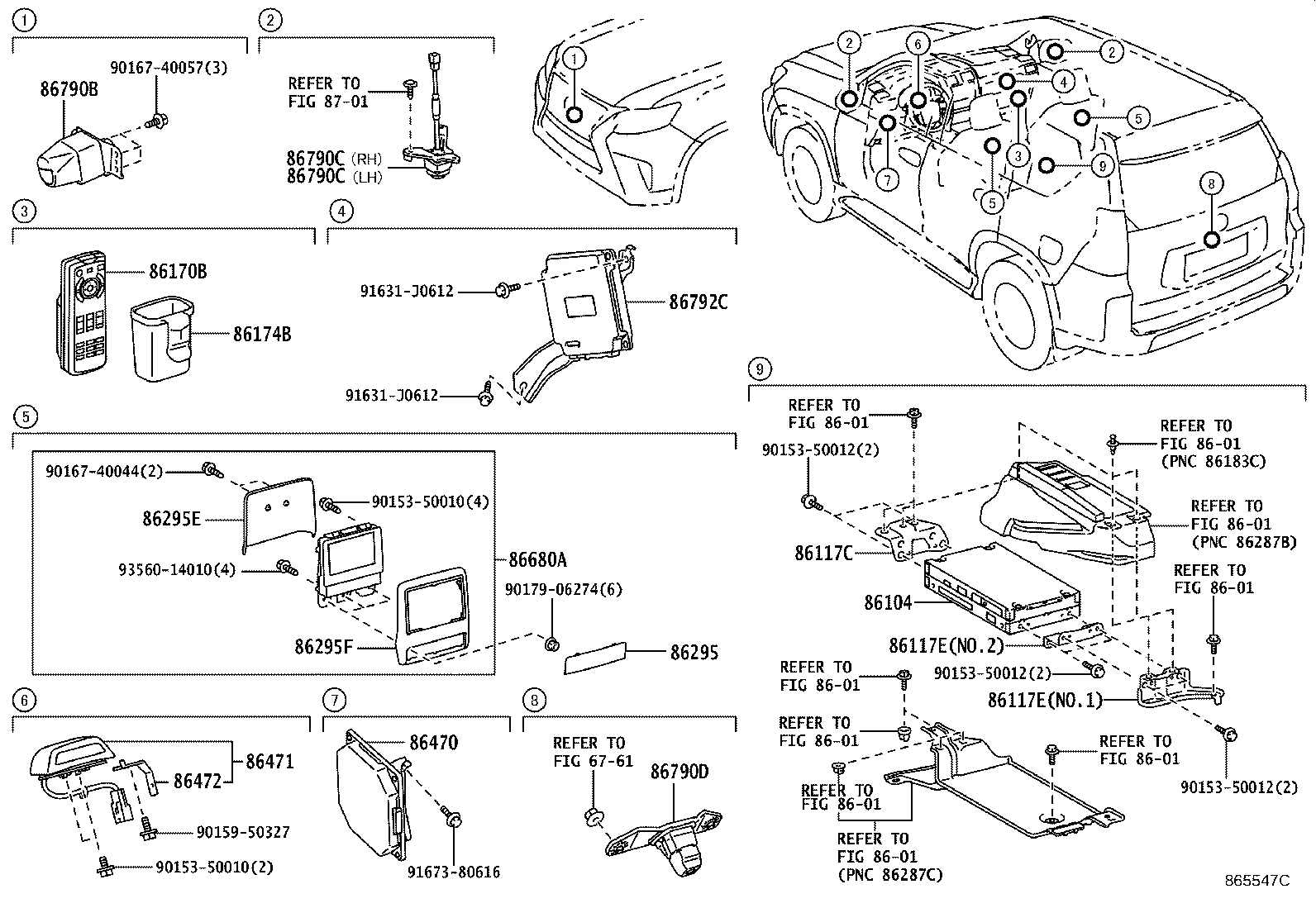

| Linked diagrams | ||||
| 8601 | ||||
| 8701 | ||||
