URJ150L-GKTZKA (2013)

Toyota Lexus Gx460

Production Aug 2013 - Aug 2019
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

Click highlighted areas on diagram

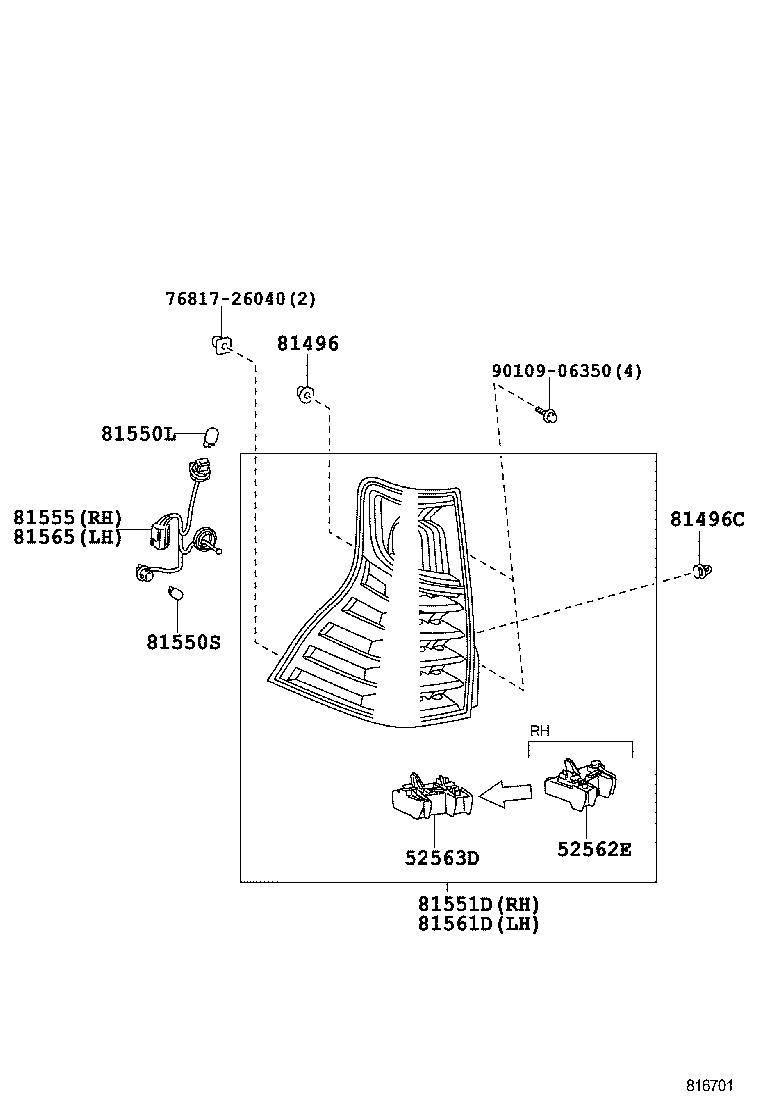

W/O(SPORT PACKAGE)

diagram 52562E 52563D 7681726040 81496 81496C 81550L 81550S 81551D 81555 81561D 81565 9010906350
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-60070

URJ150

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-60070

URJ150

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

URJ150

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

URJ150

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

URJ150

12V 21W,AMBER

 2
81550S - BULB, REAR SIDE MARKER LAMP
99132-12050

URJ150

12V 5W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-60B30

URJ150

 1
81551-60B31

URJ150

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-60A00

URJ150

 1
81555-60B31

URJ150

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-60B10

URJ150

 1
81561-60B11

URJ150

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-60B31

URJ150

 1
81555-60A00

URJ150

 1
Common parts
76817-26040
90109-06350

(1608- )

Click highlighted areas on diagram

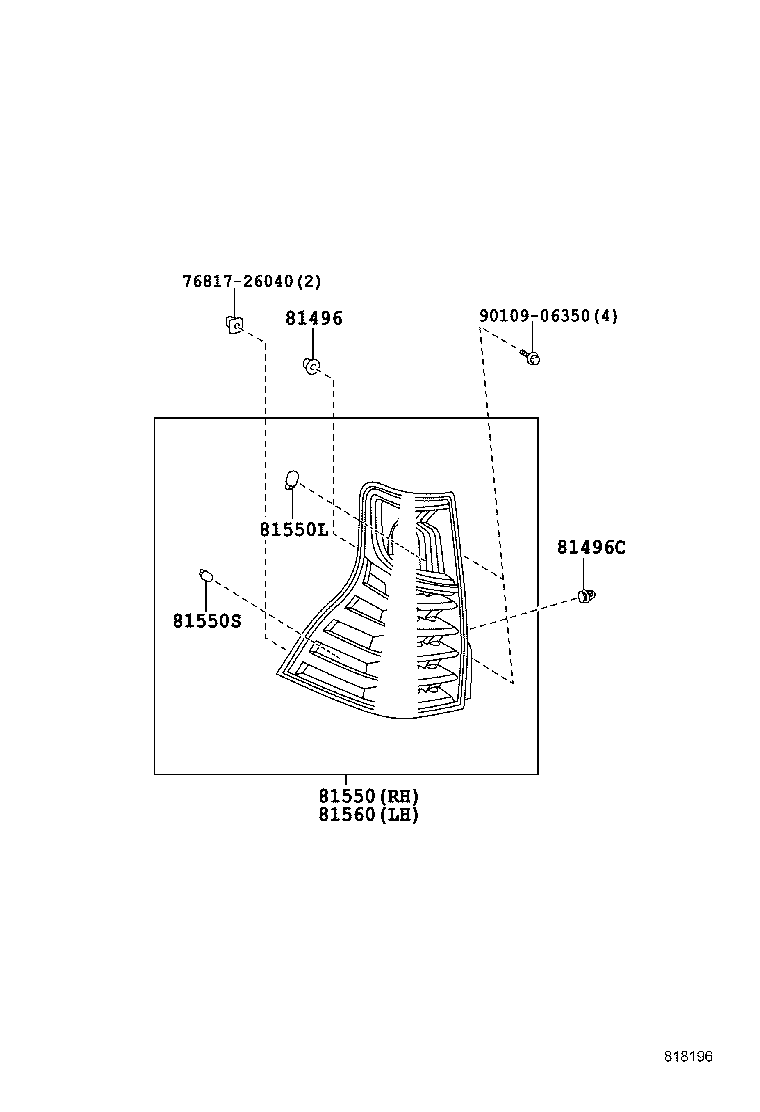

W(SPORT PACKAGE)

diagram 7681726040 81496 81496C 81550 81550L 81550S 81560 9010906350
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

URJ150

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

URJ150

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-WY040

URJ150

SPORT PACKAGE

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

URJ150

12V 21W,AMBER

 2
81550S - BULB, REAR SIDE MARKER LAMP
99132-12050

URJ150

12V 5W

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-WY030

URJ150

SPORT PACKAGE

 1
Common parts
76817-26040
90109-06350
