URJ150L-GKTZKA (2009)

Toyota Lexus Gx460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )

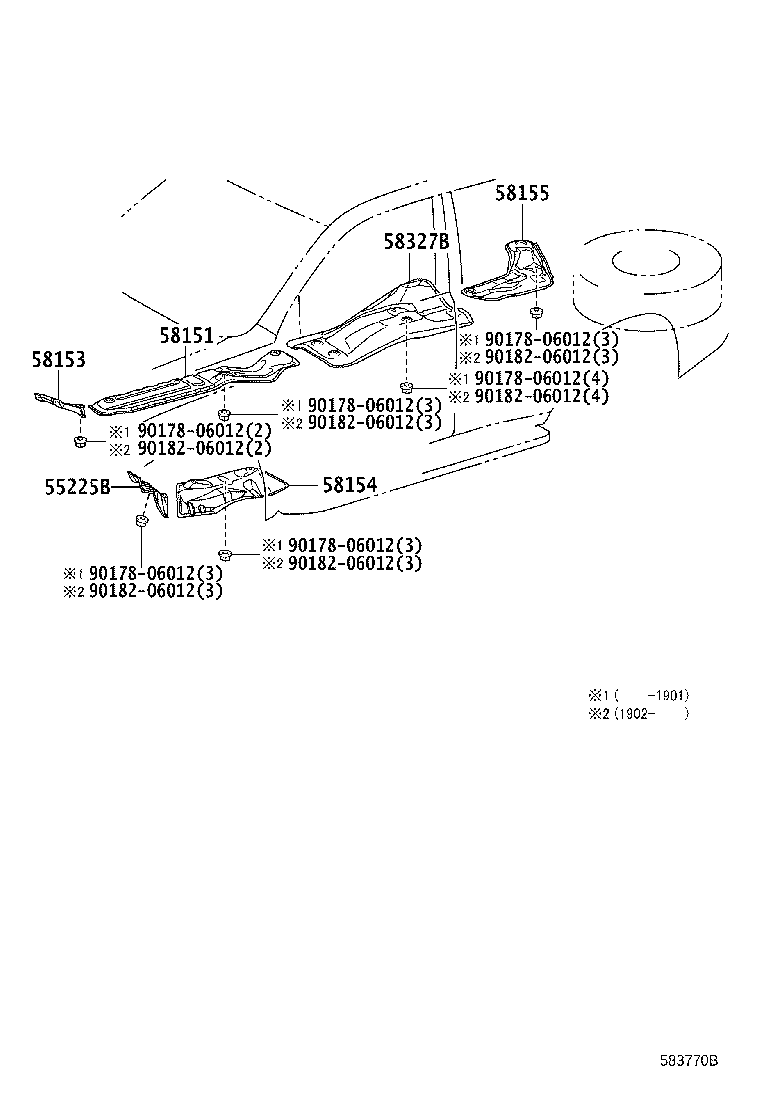

Click highlighted areas on diagram

diagram 55225B 58151 58153 58154 58155 58327B 9017806012 9017806012 9017806012 9017806012 9017806012 9017806012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012
Part # Description Qty Price
55225B - INSULATOR, DASH PANEL HEAT
55225-60050

URJ150

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-60120

URJ150

 1
58151-60121

URJ150

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-35130

URJ150

 1
58154 - INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER
58152-60060

URJ150

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-60070

URJ150

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-60100

URJ150

 1
Common parts
90178-06012
90182-06012
