URJ150L-GKTGKA (2009)
Toyota Lexus Gx460
Production
Nov 2009
-
Aug 2013
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0911- )

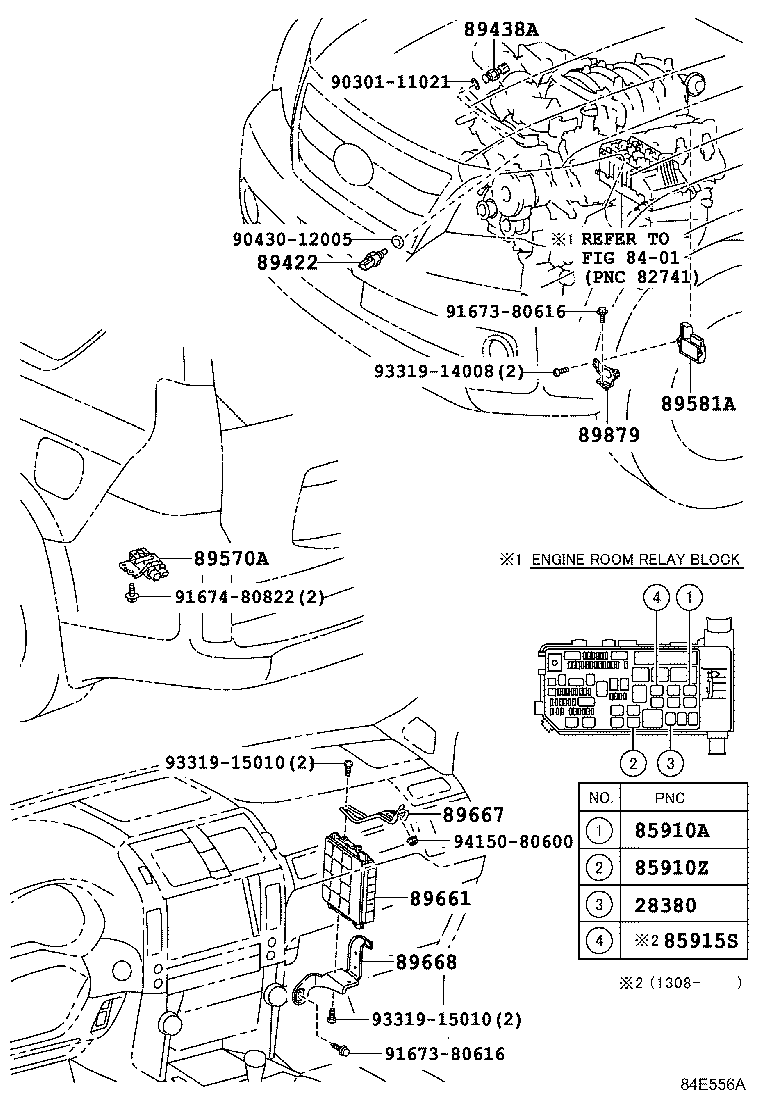

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 90987-02027 |
1URFE..URJ150 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 85910Z - RELAY, INJECTION (FOR EFI) | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
URJ150 |
1 | ||
| 89438A - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89448-34020 |
URJ150 |
1 | ||
| 89570A - COMPUTER ASSY, FUEL PUMP CONTROL | ||||
| 89570-60170 |
URJ150..G |
1 | ||
| 89581A - DRIVER, AIR INJECTION CONTROL | ||||
| 89581-60010 |
URJ150 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-60U40 |
URJ150 |
1 | ||
| 89661-60K40 |
URJ150 |
1 | ||
| 89661-60Q20 |
URJ150 |
1 | ||
| 89661-60L80 |
URJ150 |
1 | ||
| 89661-60Q21 |
URJ150 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-60270 |
URJ150 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-60290 |
URJ150 |
1 | ||
| 89879 - BRACKET, INJECTOR DRIVER | ||||
| 89589-60040 |
URJ150 |
1 | ||
| Common parts | ||||
| 90301-11021 | ||||
| 90430-12005 | ||||
| 91673-80616 | ||||
| 91674-80822 | ||||
| 93319-14008 | ||||
| 93319-15010 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
