URJ150L-GKTGKA (2009)
Toyota Lexus Gx460
Production
Nov 2009
-
Aug 2013
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0911-1908)

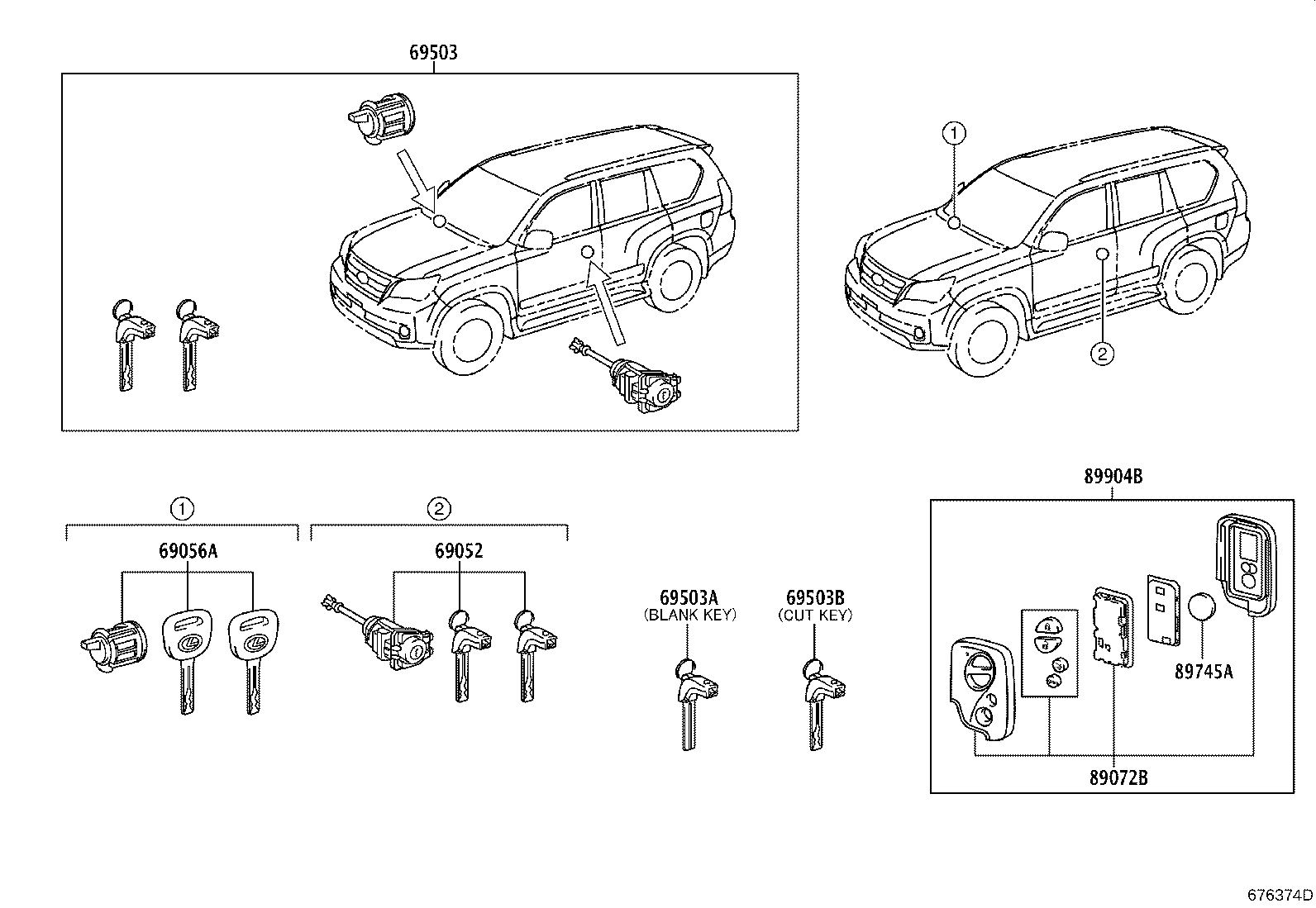

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-60340 |
URJ150 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-30250 |
URJ150 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-60A40 |
URJ150 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-30300 |
URJ150 |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-30290 |
URJ150 |
2 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-60670 |
URJ150 |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
URJ150 |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-60590 |
URJ150 |
2 | ||
| 89904-60C80 |
URJ150 |
2 | ||
| 89904-60590 |
URJ150 |
2 | ||
