URJ150L-GKTGKA (2009)

Toyota Lexus Gx460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )

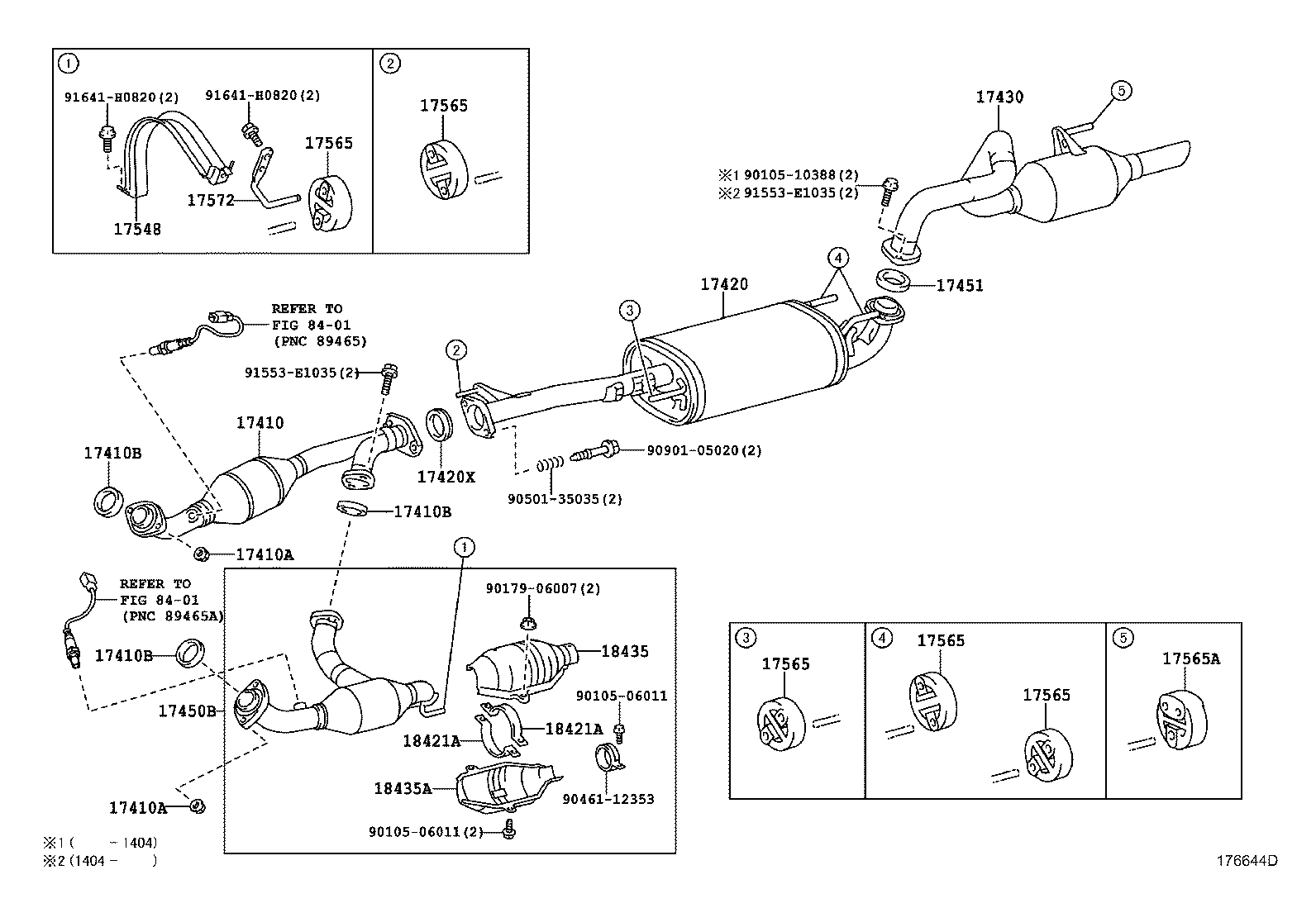

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17410B 17420 17420X 17430 17450B 17451 17548 17565 17565 17565 17565 17565 17565A 17572 18421A 18421A 18435 18435A 8401 8401 9010506011 9010506011 9010510388 9017906007 9046112353 9050135035 9090105020 91553E1035 91553E1035 91641H0820 91641H0820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-38390

1URFE..URJ150

*114=TOYOTA/X53/Y

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1URFE..URJ150

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1URFE..URJ150

 4
17410B - GASKET, EXHAUST PIPE
90917-06089

1URFE..URJ150

 3
17410B - GASKET, EXHAUST PIPE
90917-06089

1URFE..URJ150

 3
17410B - GASKET, EXHAUST PIPE
90917-06089

1URFE..URJ150

 3
17420 - PIPE ASSY, EXHAUST, CENTER
17420-38150

1URFE..URJ150

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-31020

1URFE..URJ150

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-38630

1URFE..URJ150

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-38040

1URFE..URJ150

*114=TOYOTA/X54/Y

 1
17451 - GASKET, EXHAUST PIPE
90917-06090

1URFE..URJ150

 1
17548 - BRACKET, EXHAUST PIPE STOPPER
17548-31011

1URFE..URJ150

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

1URFE..URJ150

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

1URFE..URJ150

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

1URFE..URJ150

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

1URFE..URJ150

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

1URFE..URJ150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

1URFE..URJ150

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-38080

1URFE..URJ150

 1
18421A - STAY, CONVERTER PROTECTOR, LH
18421-38040

1URFE..URJ150

 2
18421A - STAY, CONVERTER PROTECTOR, LH
18421-38040

1URFE..URJ150

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-38050

1URFE..URJ150

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18445-38020

1URFE..URJ150

 1
Common parts
90105-06011
90105-10388
90179-06007
90461-12353
90501-35035
90901-05020
91553-E1035
91641-H0820
Linked diagrams
8401
