URJ150L-GKTGKA (2019)
Toyota Lexus Gx460
Production
Aug 2019
-
Sep 9999
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0911-2008)

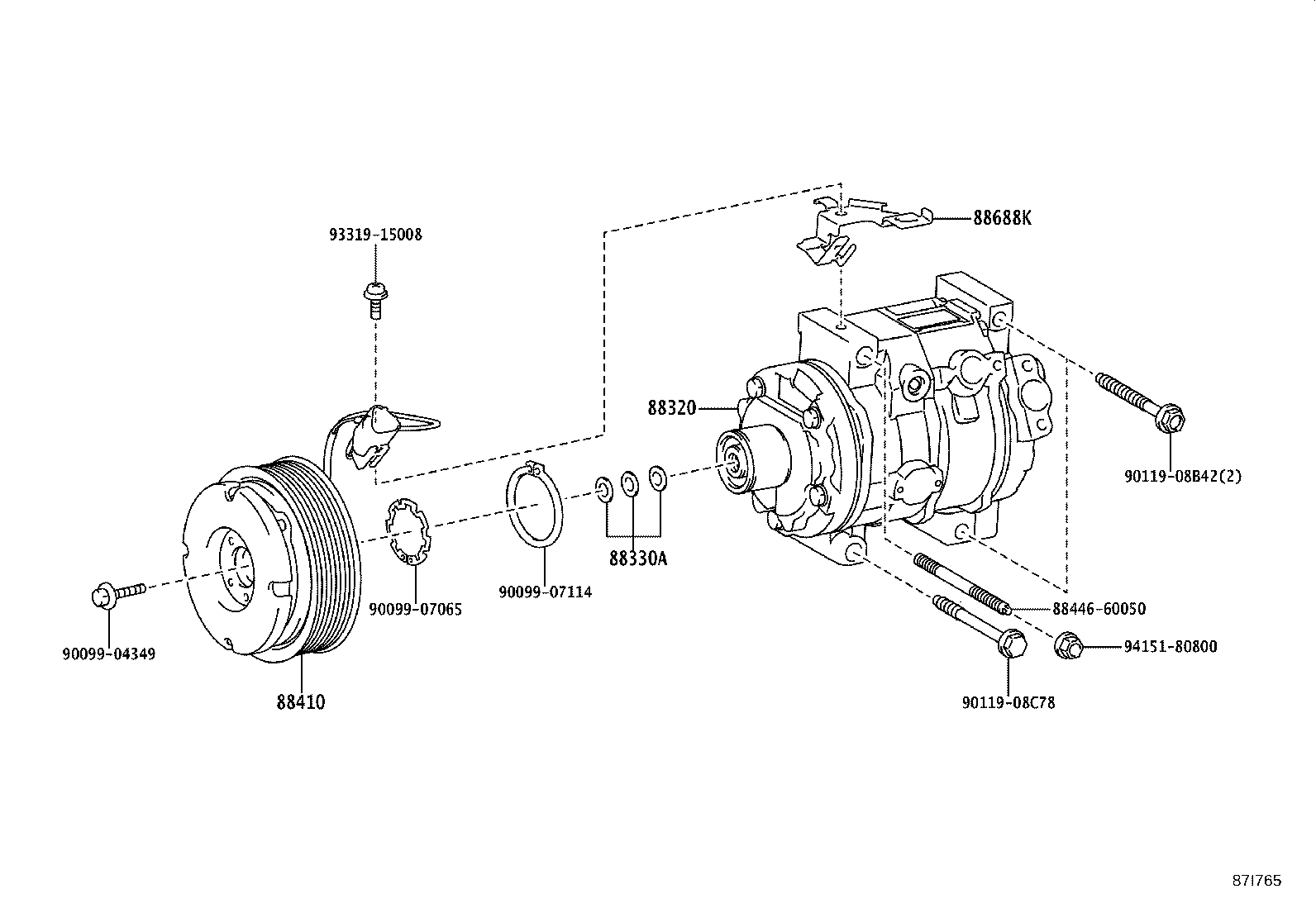

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A520 |
URJ150 |
1 | ||
| 88320-60B70 |
URJ150 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
URJ150 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-44090 |
URJ150 |
1 | ||
| 88410-6A190 |
URJ150 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-6B310 |
URJ150 |
1 | ||
| 88849-60020 |
URJ150 |
1 | ||
| Common parts | ||||
| 88446-60050 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 90119-08C78 | ||||
| 93319-15008 | ||||
| 94151-80800 | ||||
(2008- )

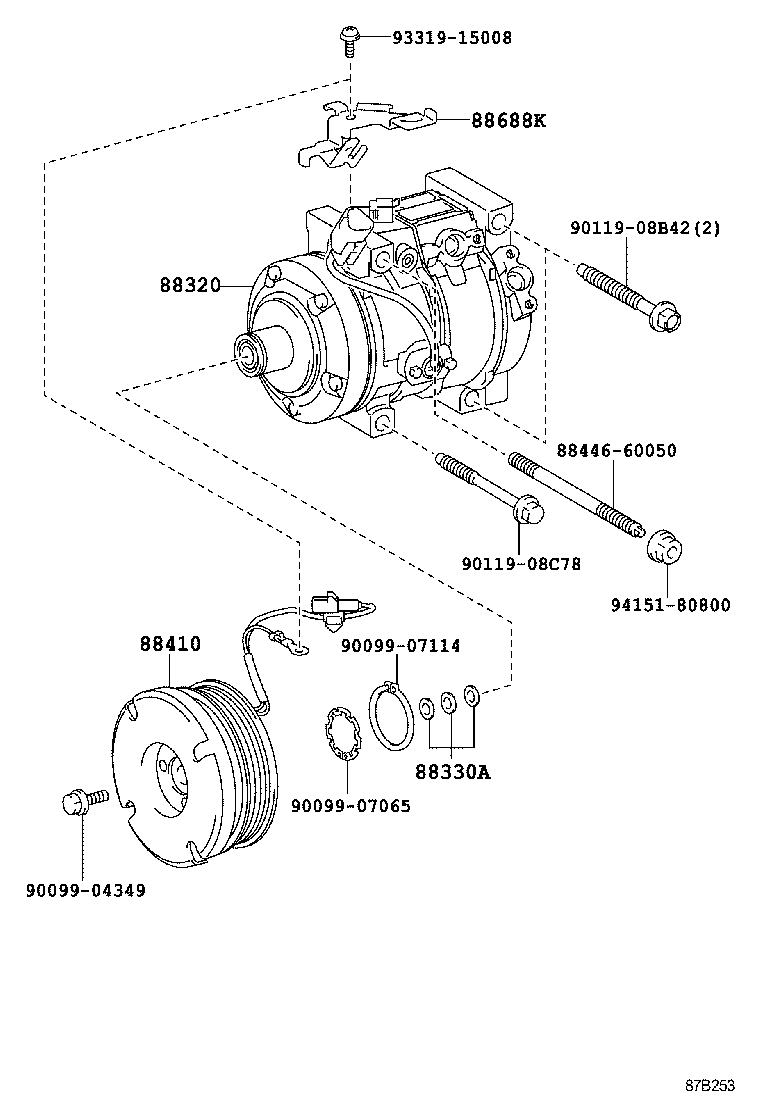

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A520 |
URJ150 |
1 | ||
| 88320-60B70 |
URJ150 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
URJ150 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-44090 |
URJ150 |
1 | ||
| 88410-6A190 |
URJ150 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-6B310 |
URJ150 |
1 | ||
| 88849-60020 |
URJ150 |
1 | ||
| Common parts | ||||
| 88446-60050 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 90119-08C78 | ||||
| 93319-15008 | ||||
| 94151-80800 | ||||
