URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

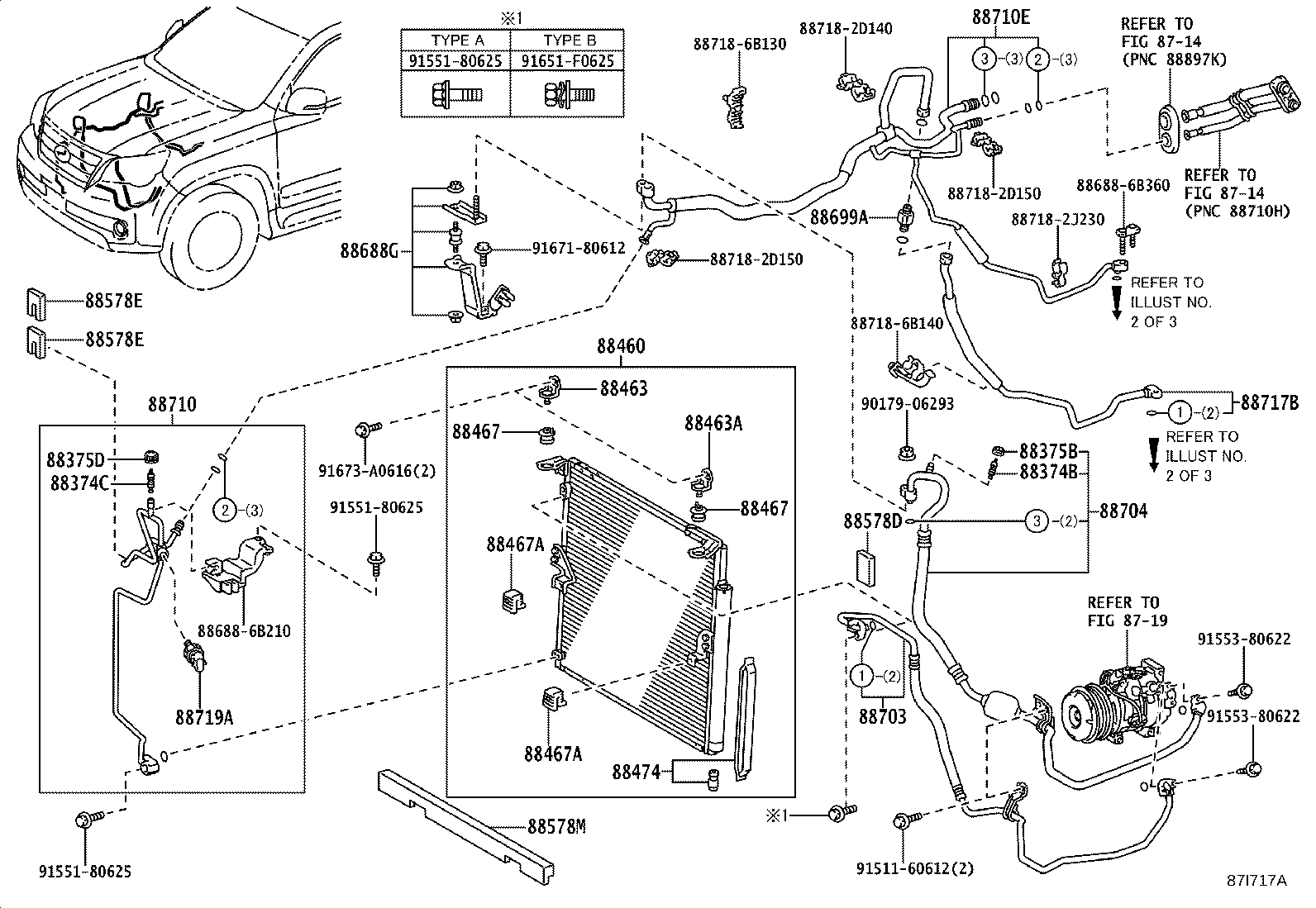

ILLUST NO. 2 OF 4(1908-2008)

Click highlighted areas on diagram

FRONT,W(REAR)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 886886B360 88688G 88699A 88703 88704 88710 88710E 88717B 887182D140 887182D150 887182D150 887182J230 887186B130 887186B140 88719A 9017906293 9151160612 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

URJ150

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

URJ150

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

URJ150

 1
88375-30290

URJ150

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

URJ150

 1
88375-30320

URJ150

 1
88460 - CONDENSER ASSY, COOLER
884A0-60020

URJ150

 1
88460-60420

URJ150

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

URJ150

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

URJ150

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88474 - DRYER, COOLER
88474-17010

URJ150

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60550

URJ150

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

URJ150

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-6B340

URJ150..G

 1
88688-6B320

URJ150..G

 1
88688-6B320

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88699A - VALVE, AIR
88699-60010

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-60290

URJ150

 1
88703-60291

URJ150

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60630

URJ150

 1
88704-60510

URJ150

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35731

URJ150..G

 1
88710-60J50

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M20

URJ150..G

 1
88710-60M30

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60D70

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60N10

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M10

URJ150..G

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B290

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
Common parts
88688-6B360
88718-2D140
88718-2D150
88718-2J230
88718-6B130
88718-6B140
90179-06293
91511-60612
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

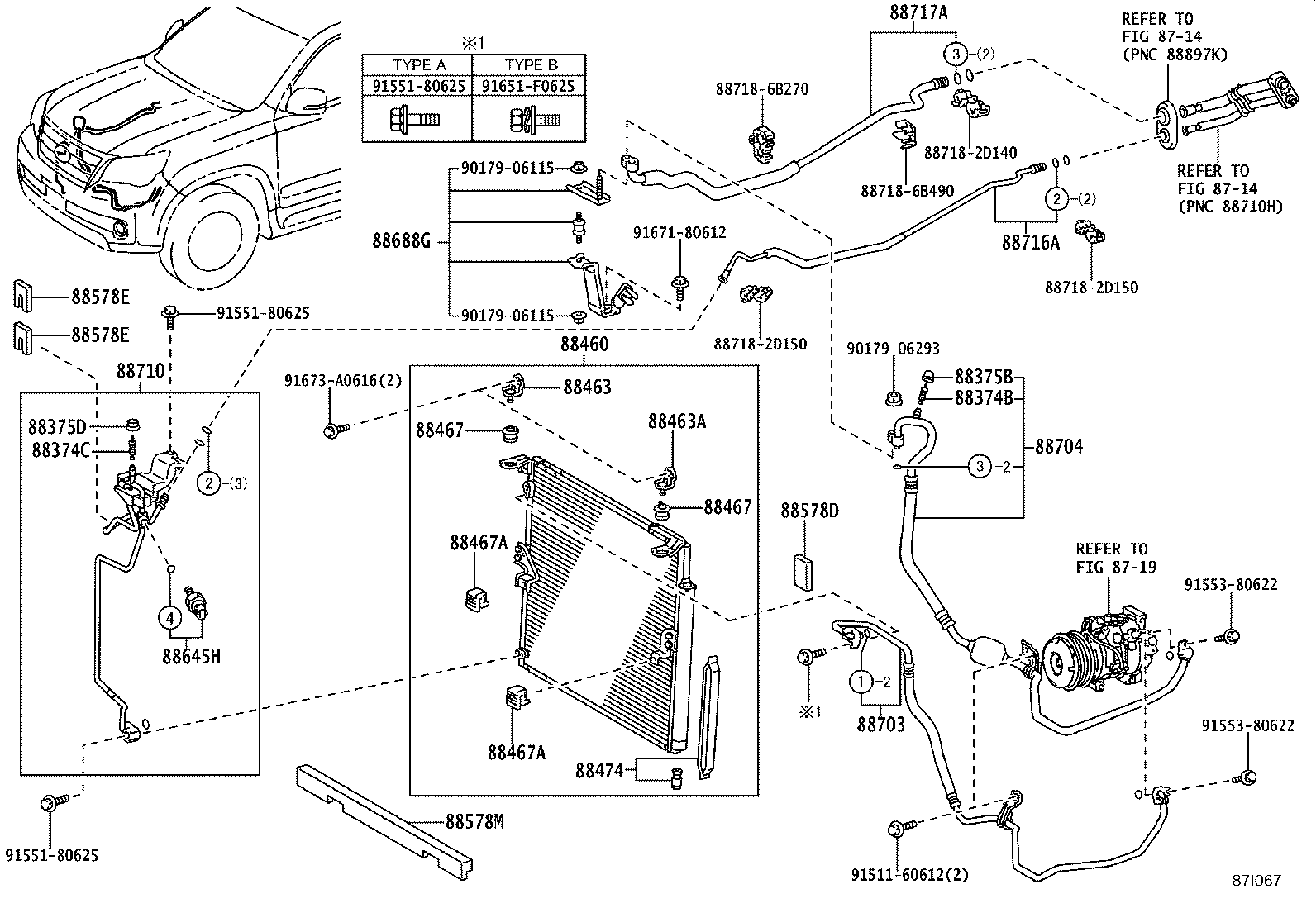

ILLUST NO. 2 OF 4(1908-2008)G

Click highlighted areas on diagram

FRONT

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 88645H 88688G 88703 88704 88710 88716A 88717A 887182D140 887182D150 887182D150 887186B270 887186B490 9017906115 9017906115 9017906293 9151160612 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

URJ150

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

URJ150

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

URJ150

 1
88375-30290

URJ150

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

URJ150

 1
88375-30320

URJ150

 1
88460 - CONDENSER ASSY, COOLER
884A0-60020

URJ150

 1
88460-60420

URJ150

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

URJ150

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

URJ150

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88474 - DRYER, COOLER
88474-17010

URJ150

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60550

URJ150

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

URJ150

 1
88645H - SWITCH, PRESSURE NO.1
88645-26030

URJ150..G

 1
88645-60060

URJ150..G

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-6B340

URJ150..G

 1
88688-6B320

URJ150..G

 1
88688-6B320

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-60290

URJ150

 1
88703-60291

URJ150

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60630

URJ150

 1
88704-60510

URJ150

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35731

URJ150..G

 1
88710-60J50

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M20

URJ150..G

 1
88710-60M30

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C620

URJ150..G

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B300

URJ150..G

 1
Common parts
88718-2D140
88718-2D150
88718-6B270
88718-6B490
90179-06115
90179-06293
91511-60612
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

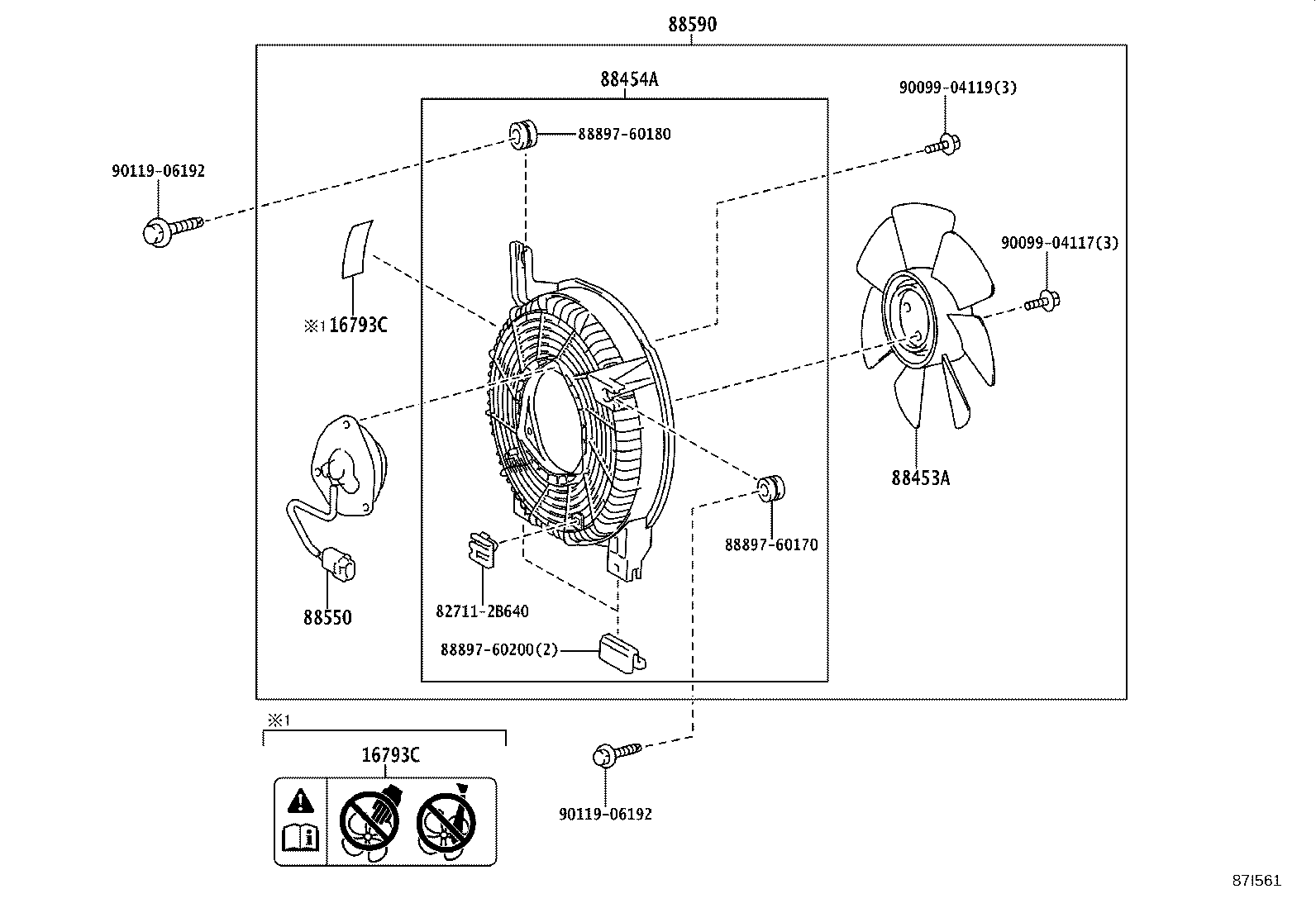

ILLUST NO. 1 OF 4(1908- )

Click highlighted areas on diagram

W(CONDENSER FAN)

diagram 16793C 16793C 827112B640 88453A 88454A 88550 88590 8889760170 8889760180 8889760200 9009904117 9009904119 9011906192 9011906192
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-31070

1URFE..URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
16793C - LABEL, COOLING FAN CAUTION
16793-31070

1URFE..URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88453A - FAN, COOLING
88453-60010

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88454A - SHROUD, FAN
88454-60061

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88590 - BLOWER ASSY, W/SHROUD
88590-60091

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
Common parts
82711-2B640
88897-60170
88897-60180
88897-60200
90099-04117
90099-04119
90119-06192

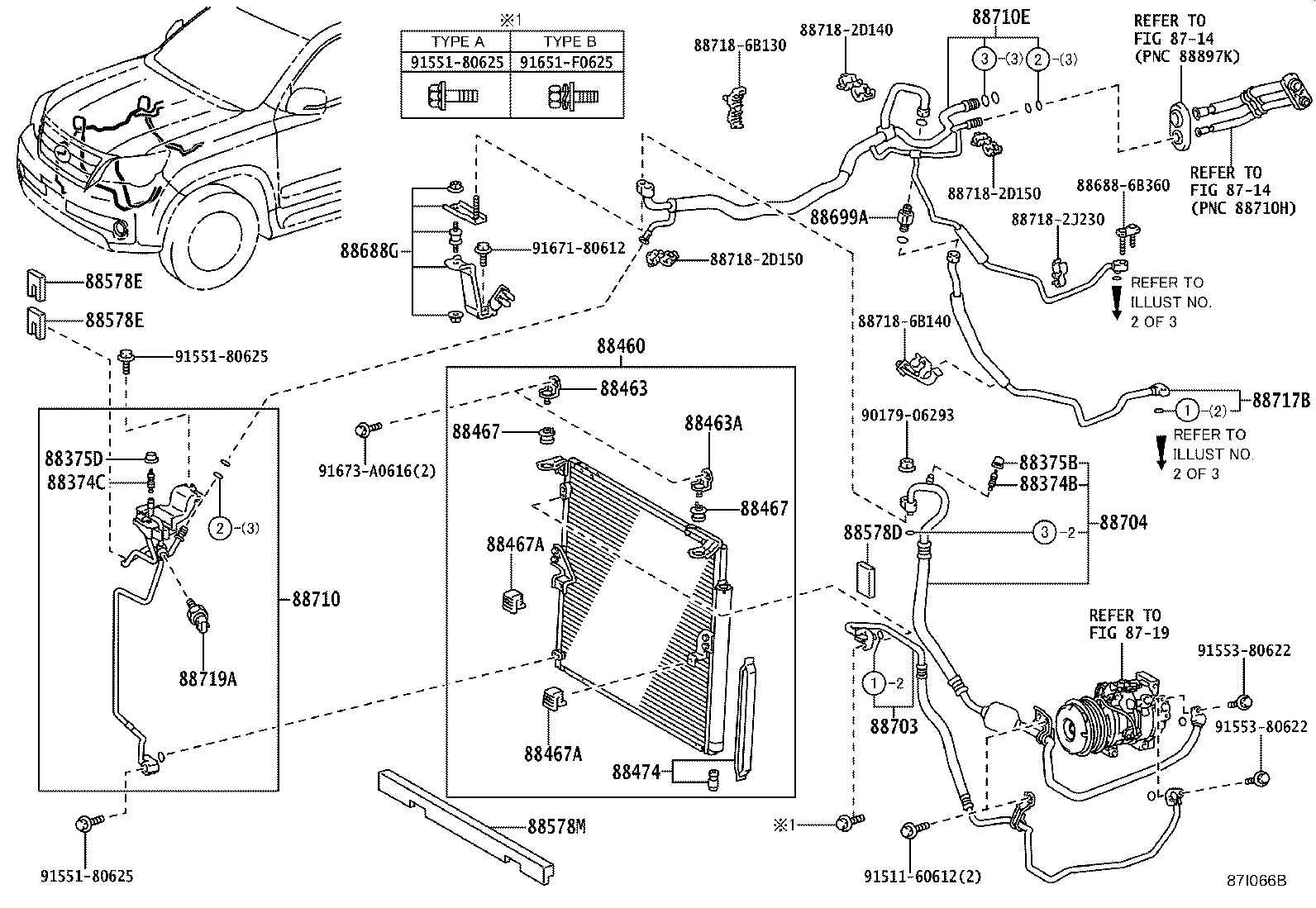

ILLUST NO. 2 OF 4(2008- )G

Click highlighted areas on diagram

FRONT

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 88645H 886886B210 88688G 88703 88704 88710 88710E 887182D140 887182D150 887182D150 9017906293 9151160612 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

URJ150

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

URJ150

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

URJ150

 1
88375-30290

URJ150

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

URJ150

 1
88375-30320

URJ150

 1
88460 - CONDENSER ASSY, COOLER
884A0-60020

URJ150

 1
88460-60420

URJ150

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

URJ150

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

URJ150

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88474 - DRYER, COOLER
88474-17010

URJ150

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60550

URJ150

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

URJ150

 1
88645H - SWITCH, PRESSURE NO.1
88645-26030

URJ150..G

 1
88645-60060

URJ150..G

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-6B340

URJ150..G

 1
88688-6B320

URJ150..G

 1
88688-6B320

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-60290

URJ150

 1
88703-60291

URJ150

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60630

URJ150

 1
88704-60510

URJ150

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35731

URJ150..G

 1
88710-60J50

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M20

URJ150..G

 1
88710-60M30

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60D70

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60N10

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M10

URJ150..G

 1
Common parts
88688-6B210
88718-2D140
88718-2D150
90179-06293
91511-60612
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

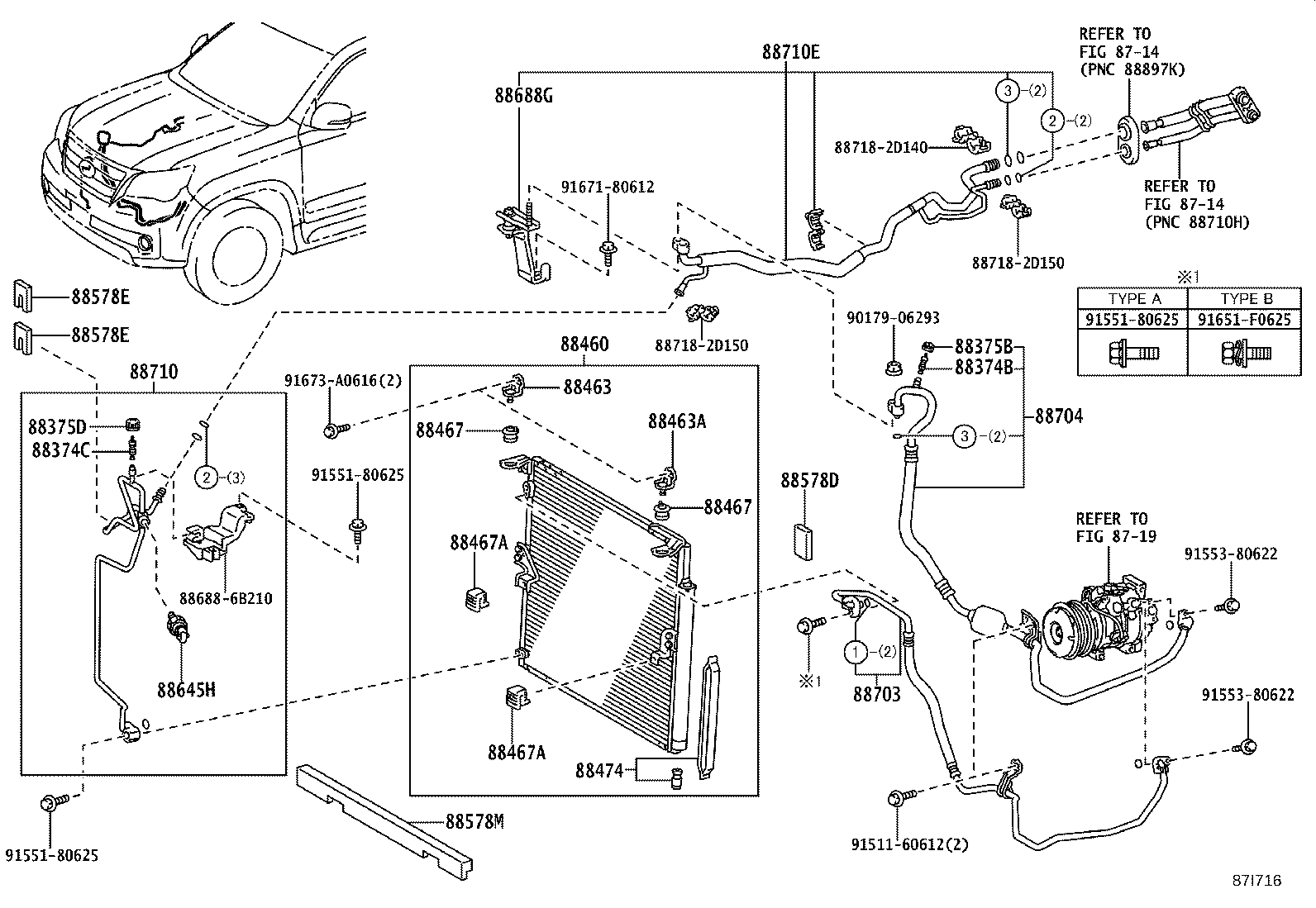

ILLUST NO. 2 OF 4(2008- )

Click highlighted areas on diagram

FRONT,W(REAR)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 886886B210 886886B360 88688G 88699A 88703 88704 88710 88710E 88717B 887182D140 887182D150 887182D150 887182J230 887186B130 887186B140 88719A 9017906293 9151160612 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

URJ150

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

URJ150

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

URJ150

 1
88375-30290

URJ150

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

URJ150

 1
88375-30320

URJ150

 1
88460 - CONDENSER ASSY, COOLER
884A0-60020

URJ150

 1
88460-60420

URJ150

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

URJ150

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

URJ150

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

URJ150

 2
88474 - DRYER, COOLER
88474-17010

URJ150

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60550

URJ150

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

URJ150

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

URJ150

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-6B340

URJ150..G

 1
88688-6B320

URJ150..G

 1
88688-6B320

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88699A - VALVE, AIR
88699-60010

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-60290

URJ150

 1
88703-60291

URJ150

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60630

URJ150

 1
88704-60510

URJ150

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35731

URJ150..G

 1
88710-60J50

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M20

URJ150..G

 1
88710-60M30

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60D70

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60N10

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88710-60M10

URJ150..G

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B290

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
Common parts
88688-6B210
88688-6B360
88718-2D140
88718-2D150
88718-2J230
88718-6B130
88718-6B140
90179-06293
91511-60612
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719
